Power Seat Power Easy Access System Function does not Operate: Wiring Diagram

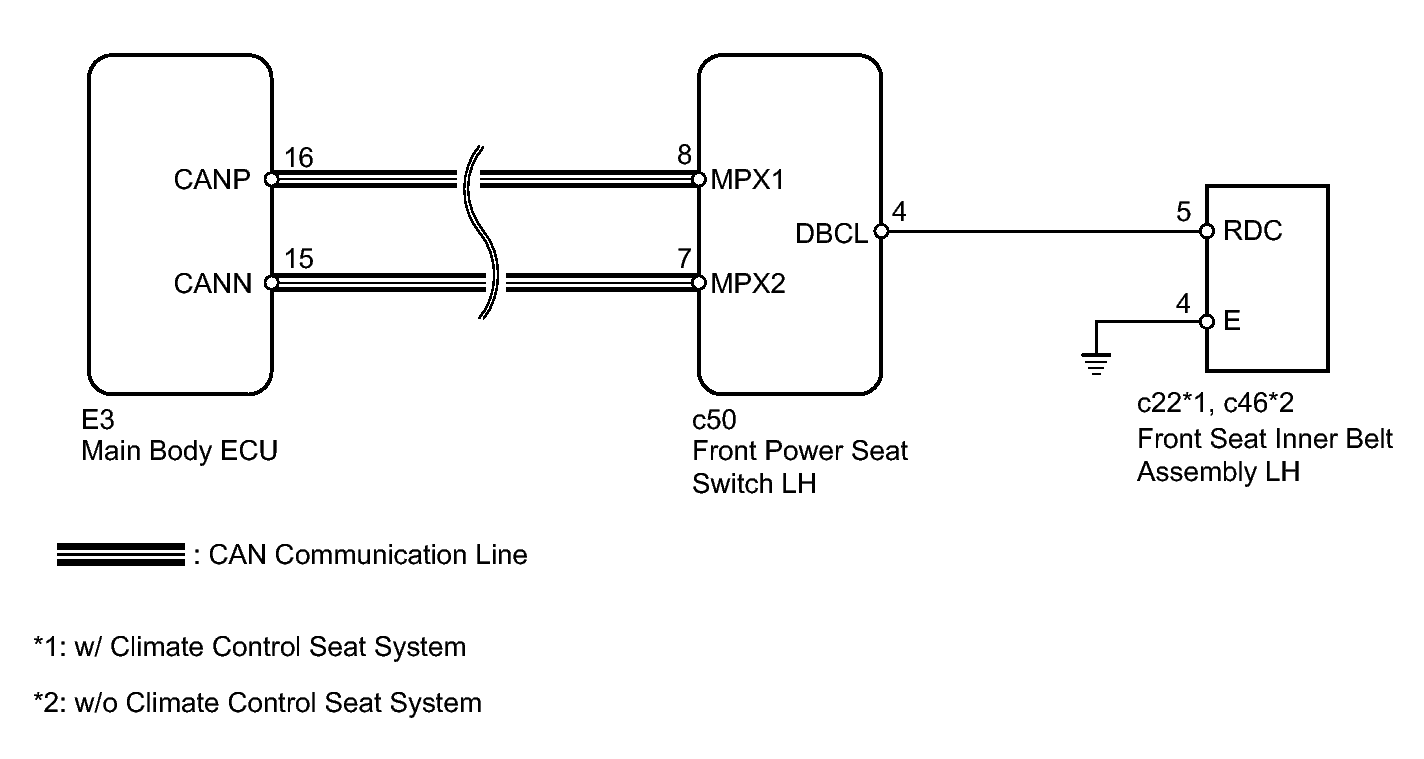

Fig 1: Front Power Seat Switch Wiring Diagram

GTY403580

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
