Back Door Entry Lock Function does not Operate: Wiring Diagram

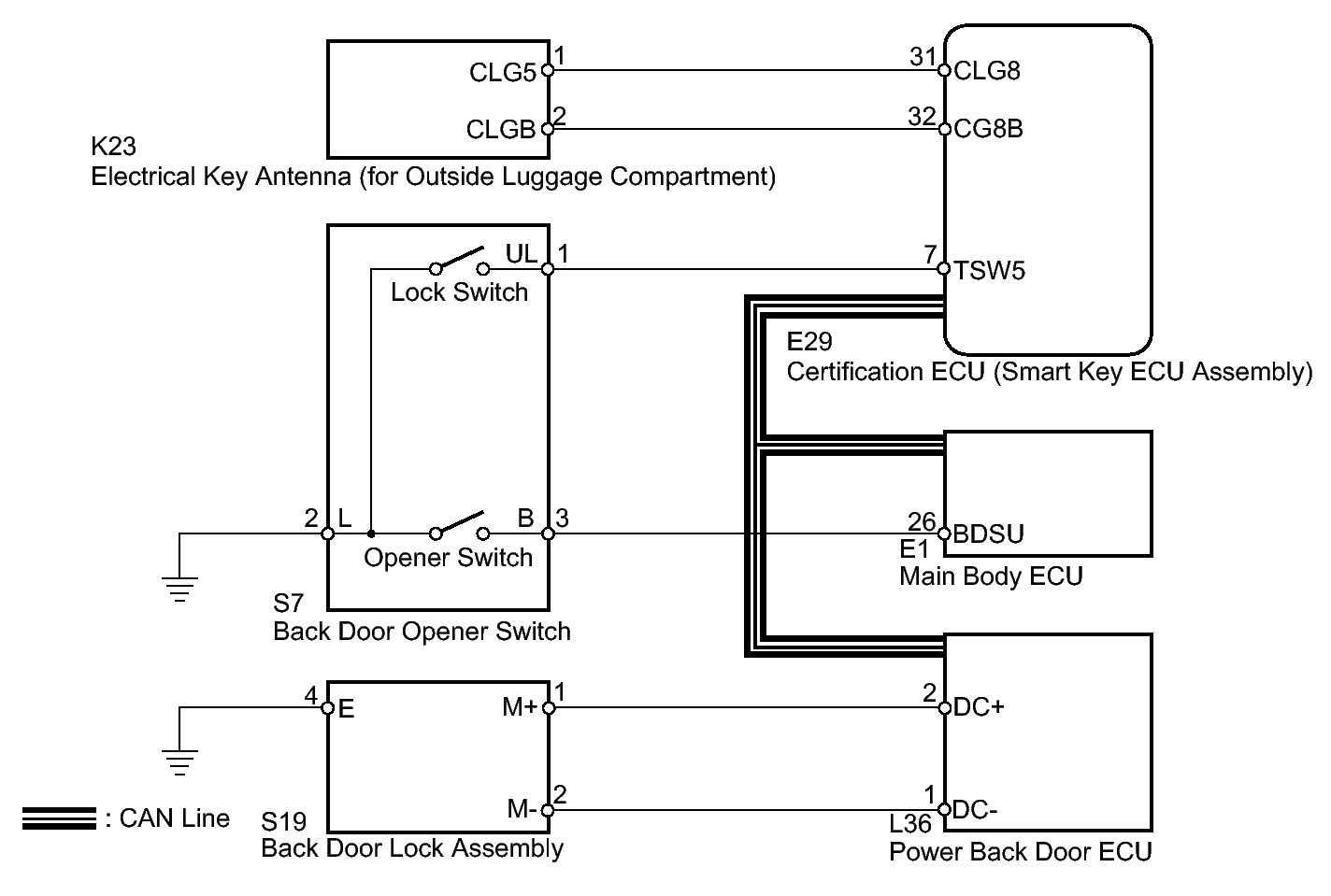

Fig 1: Back Door Entry Wiring Diagram

GTY414764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
