DCM Data Signal Circuit between Navigation ECU and DCM: Wiring Diagram

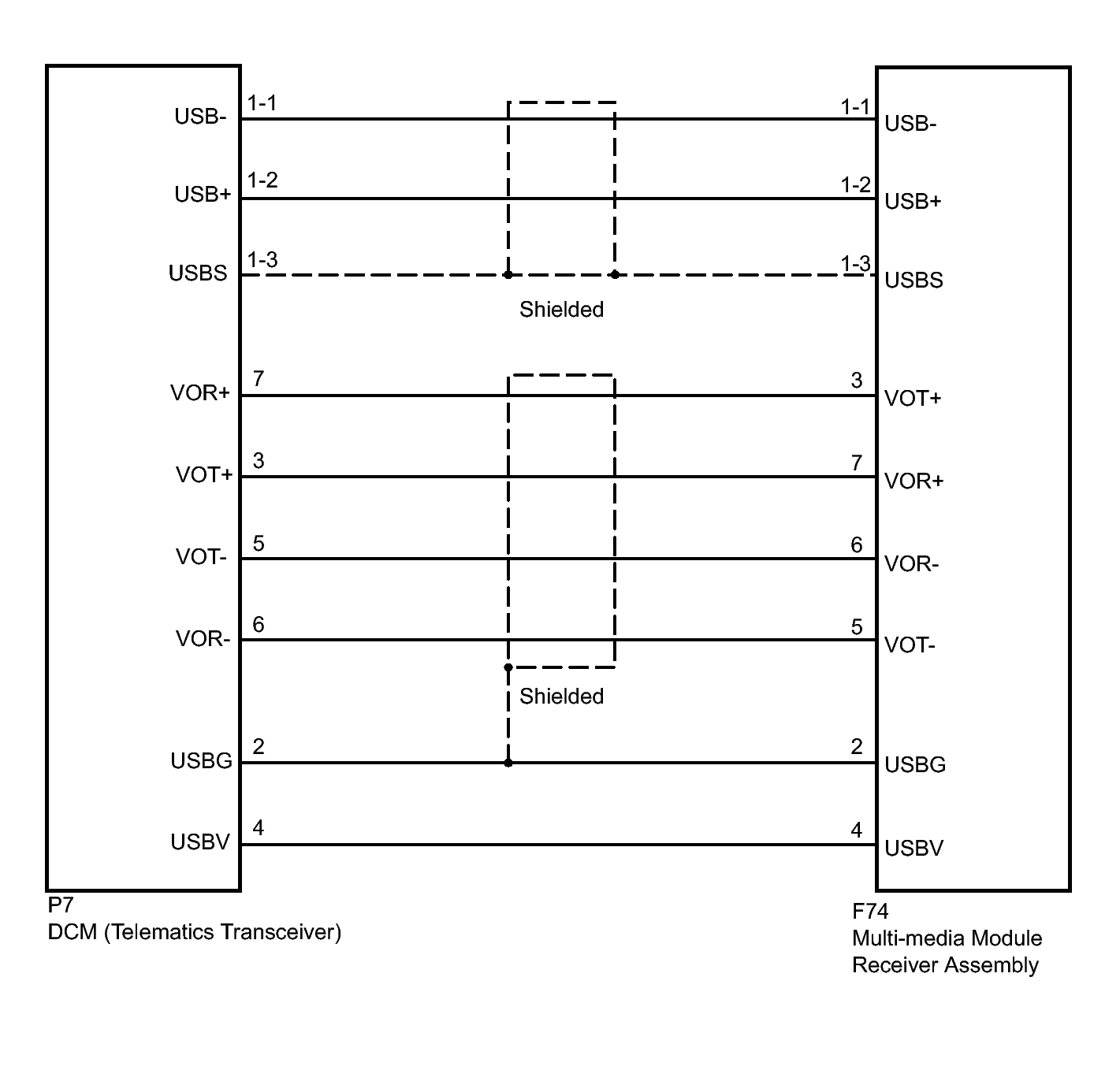

Fig 1: Navigation ECU and DCM Wiring Diagram

GTY404646

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
