DTC B2405: Sub Bus LIN Module Communication Malfunction: Wiring Diagram

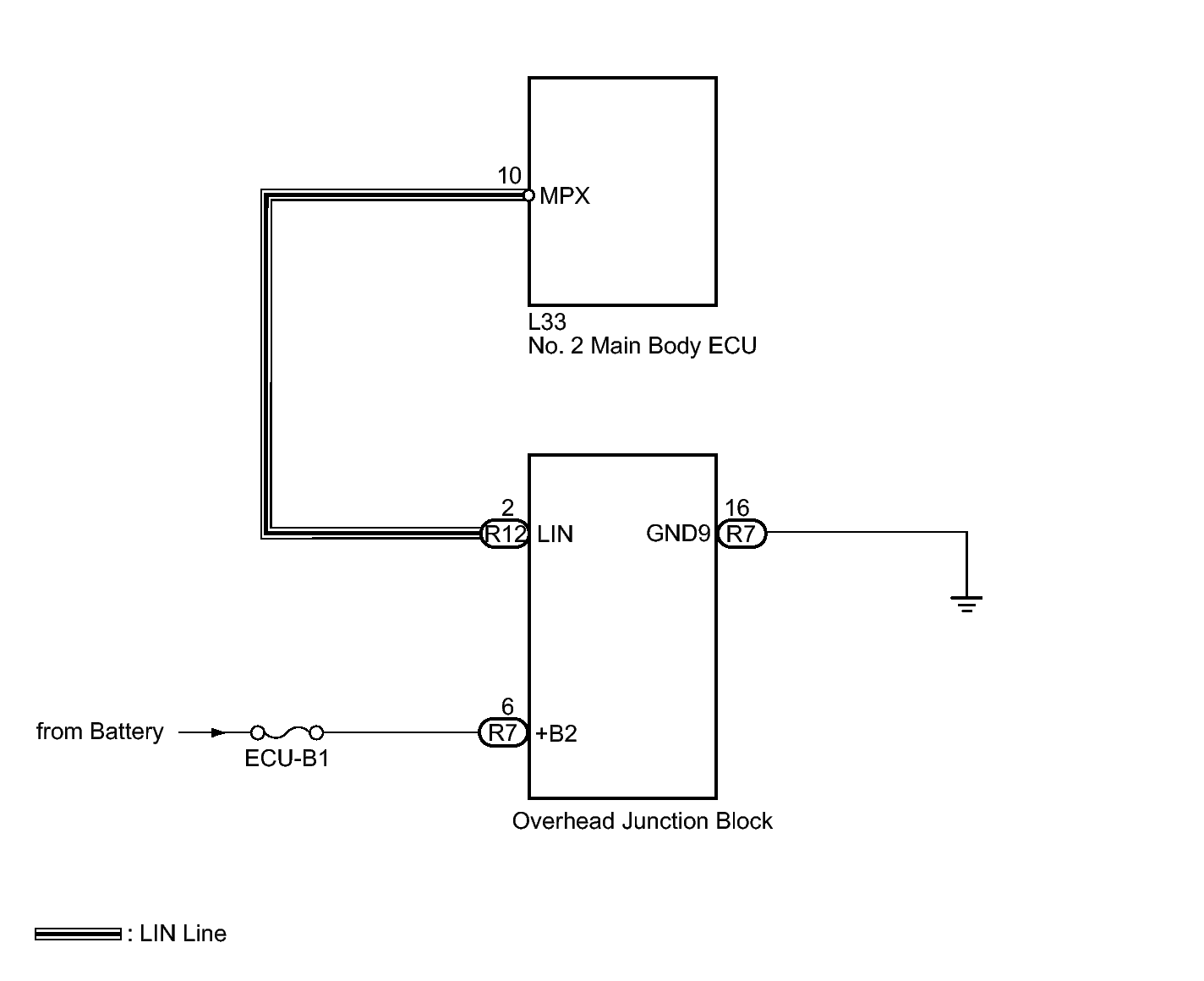

Fig 1: Sub Bus LIN Module Communication Malfunction - Wiring Diagram

GTY130033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
