Components [09/2012 - ]: Illustration

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (1 Of 3)
GTY400603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

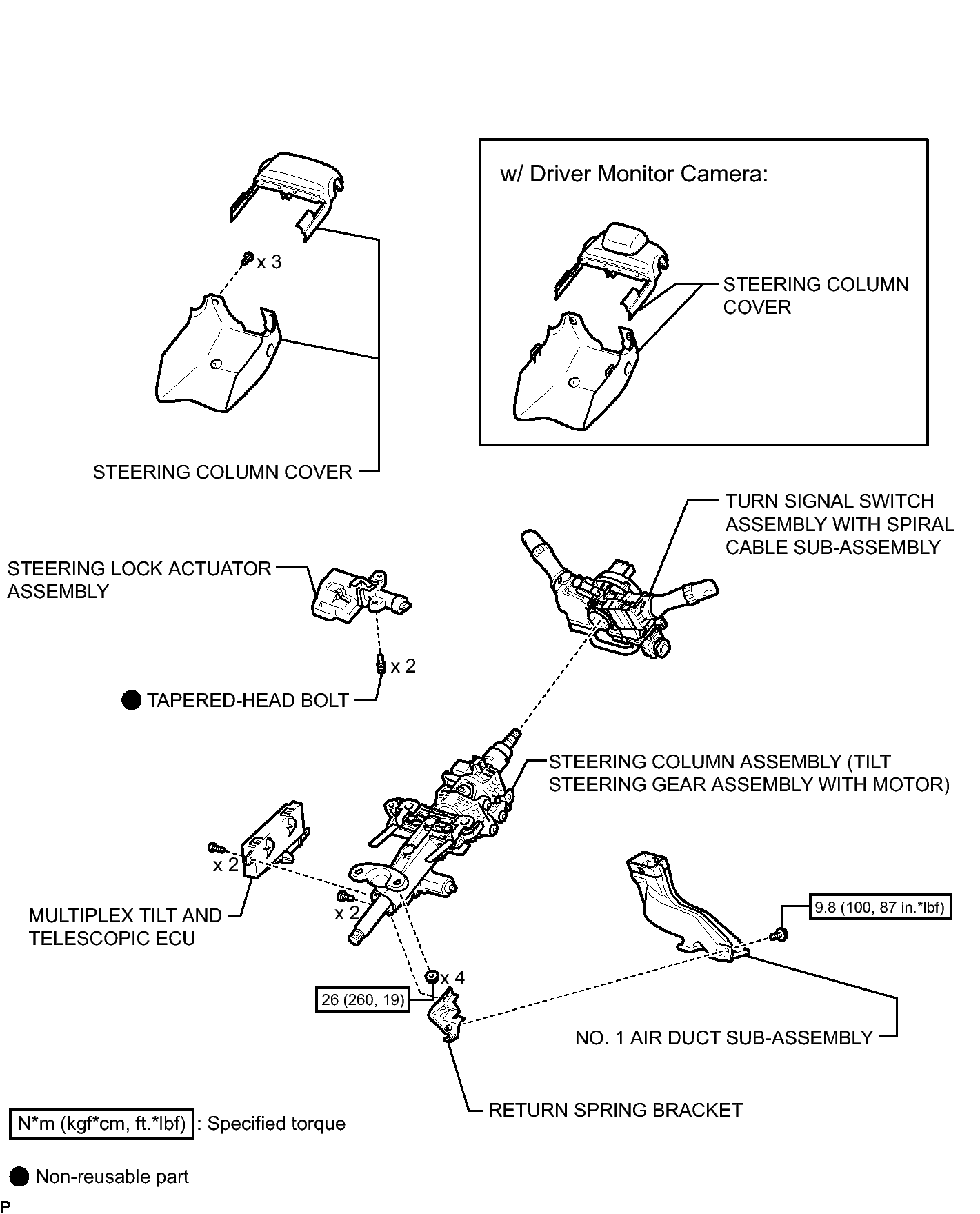

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY400135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

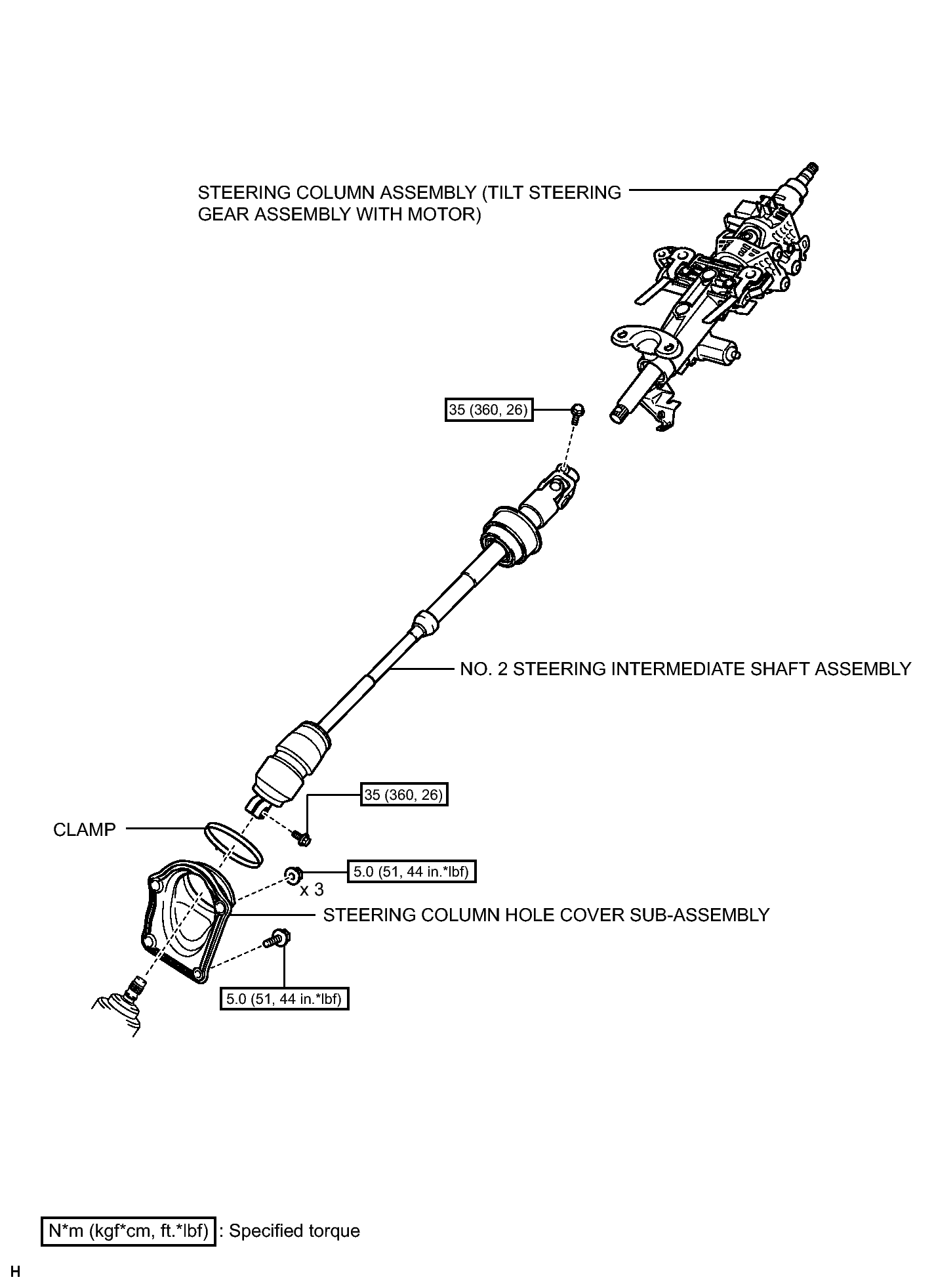

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (3 Of 3)
GTY398048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
