DTC U0110-159: Lost Communication with Driver Motor Control Module; DTC U0110-656: Lost Communication with Driver Motor Control Module; DTC U0110-657: Lost Communication with Driver Motor Control Module: Wiring Diagram

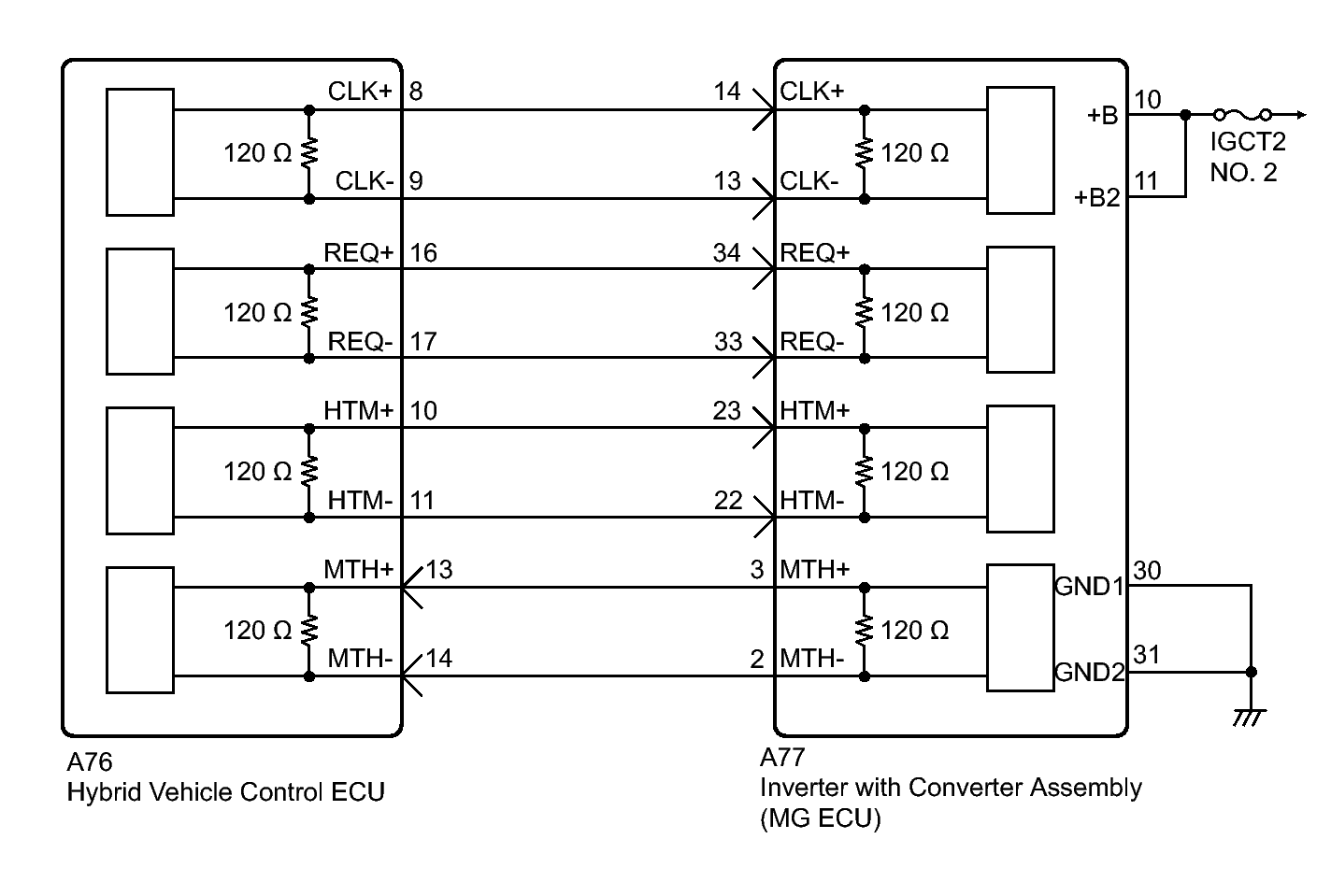

Fig 1: Driver Motor Control Module Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
