All Door Entry Lock/Unlock Functions And Wireless Functions Do Not Operate: Wiring Diagram

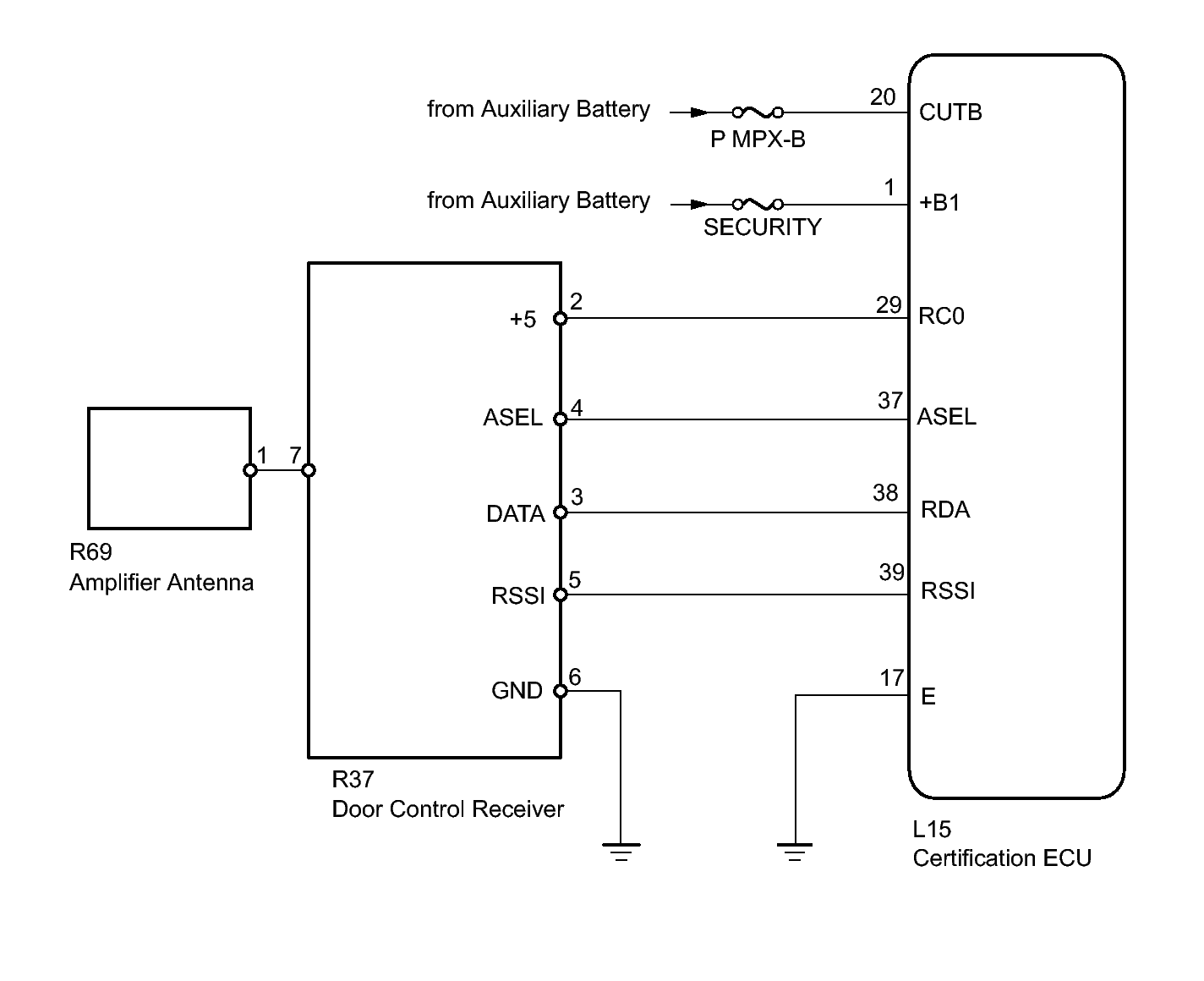

Fig 1: Door Control Receiver Wiring Diagram

GTY419283

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
