Rear Door RH Entry Lock And Unlock Functions Do Not Operate: Procedure

1. When the master switch's door control switch is operated, check that the locked doors unlock. Refer to OPERATION CHECK [09/2012 - ] .

   OK

   Locked doors unlock.

NG → See step   18

OK: Go to next step

1. Using the Techstream, read the Data List. Refer to DATA LIST / ACTIVE TEST [09/2012 - ] .
   REAR RIGHT DOOR



   Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
   Lock Position SW	Rear door RH lock position switch signal / ON or OFF	ON: Rear door RH is unlocked OFF: Rear door RH is locked	-

   OK

   On the Techstream screen, item changes between ON and OFF according to above chart.

NG → See step   21

OK: Go to next step

1. Using the Techstream, read the Data List. Refer to DATA LIST / ACTIVE TEST [09/2012 - ] .
   REAR RIGHT DOOR



   Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
   Entry Sensor	Rear RH side door touch sensor / ON or OFF	ON: Rear side door sensor RH is touched OFF: Rear side door sensor RH is not touched	-
   Outside Handle Trigger SW	Rear RH side door outside handle lock switch / ON or OFF	ON: Rear side door outside handle lock switch RH is pushed OFF: Rear side door outside handle lock switch RH is not pushed	-

   OK

   On the Techstream screen, item changes between ON and OFF according to above chart.

NG → See step   12

OK: Go to next step

1. Bring the electrical key transmitter near the rear door outside handle RH, and perform a rear right door entry lock and unlock operation check.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the door handle, communication is not possible.

   HINT:

   • When the electrical key transmitter is brought near the rear right passenger door outside handle, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   OK

   Entry functions operate normally.

NG → See step   5

OK → AFFECTED BY WAVE INTERFERENCE

1. Diagnostic mode inspection door electrical key oscillator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Connect the Techstream to the DLC3.
   2. Turn the power switch ON (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical/ Smart Access / Smart Communication Check /Overhead + Driver Side Rear.
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      If the buzzer sounds, it can be determined that the rear right seat outside transmitter is operating normally.

      OK

      Wireless door lock buzzer sounds

NG → See step   6

OK → END (CERTIFICATION ECU IS DEFECTIVE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

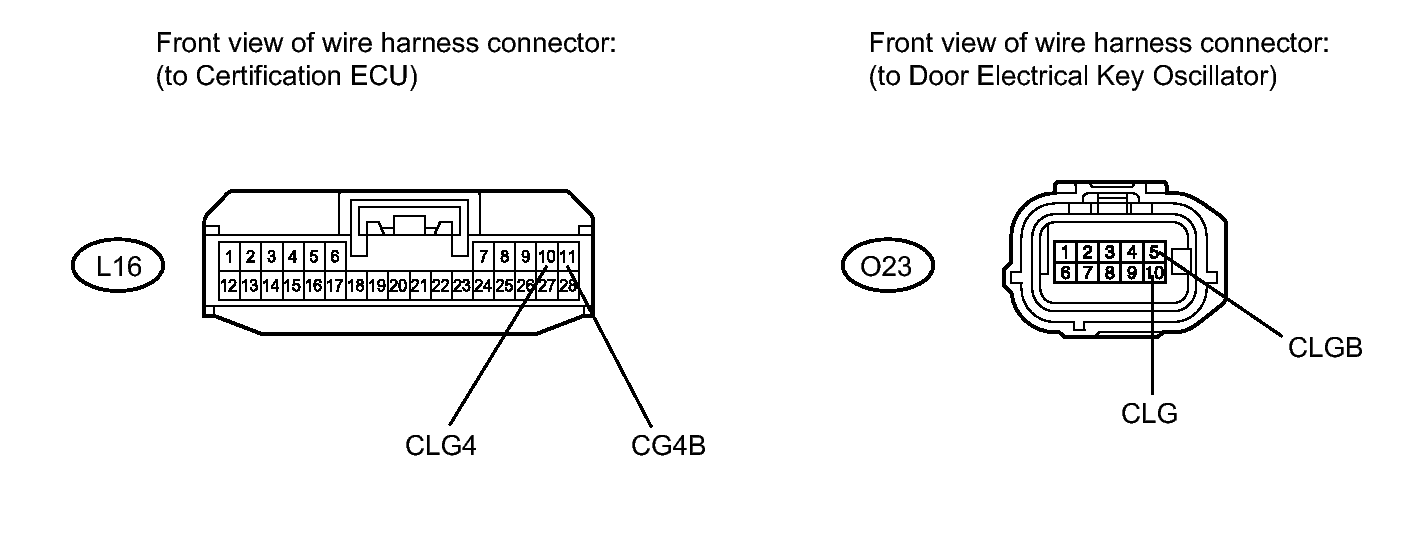

1. Disconnect the L16 ECU connector.
2. Disconnect the O23 oscillator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   L16-11 (CG4B) - O23-5 (CLGB)	Always	Below 1 Ω
   L16-10 (CLG4) - O23-10 (CLG)	Always	Below 1 Ω
   O23-5 (CLGB) - Body ground	Always	10 kΩ or higher
   O23-10 (CLG) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the O3 ECU connector.
2. Disconnect the O23 oscillator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O3-16 (SEL) - O23-4 (SEL)	Always	Below 1 Ω
   O23-4 (SEL) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the O23 oscillator connector.
2. Disconnect the O24 handle connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O23-3 (ANT5) - O24-5 (ANT5)	Always	Below 1 Ω
   O23-8 (ANT6) - O24-2 (ANT6)	Always	Below 1 Ω
   O23-3 (ANT5) - Body ground	Always	10 kΩ or higher
   O23-8 (ANT6) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the door electrical key oscillator with a new one or normally functioning one. Refer to REMOVAL [09/2012 - ] .
2. Check that the entry function operates normally. Refer to OPERATION CHECK [09/2012 - ] .

   OK

   Operates normally

NG → See step   10

OK → END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

1. Replace the rear door outside handle RH with a new one or normally functioning one. Refer to REMOVAL [09/2012 - ] .
2. Check that the entry function operates normally. Refer to OPERATION CHECK [09/2012 - ] .

   OK

   Operates normally

NG → See step   11

OK → END (REAR DOOR OUTSIDE HANDLE RH IS DEFECTIVE)

1. Replace the rear door ECU RH with a new one or normally functioning one. Refer to REMOVAL [09/2012 - ] .
2. Check that the entry function operates normally. Refer to OPERATION CHECK [09/2012 - ] .

   OK

   Operates normally

NG → See step   20

OK → END (REAR DOOR ECU RH IS DEFECTIVE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   O3-12 (OSCB) - O3-15 (OSCE)	Always	11 to 14 V

NG → See step   19

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the O3 ECU connector.
2. Disconnect the O23 oscillator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O3-12 (OSCB) - O23-1 (B)	Always	Below 1 Ω
   O3-14 (SENS) - O23-6 (SENS)	Always	Below 1 Ω
   O3-15 (OSCE) - O23-7 (GND)	Always	Below 1 Ω
   O23-1 (B) - Body ground	Always	10 kΩ or higher
   O23-6 (SENS) - Body ground	Always	10 kΩ or higher
   O23-7 (GND) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the O23 oscillator connector.
2. Disconnect the O24 handle connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O23-2 (SGT6) - O24-6 (SGT5)	Always	Below 1 Ω
   O23-9 (TRG-) - O24-1 (TRG-)	Always	Below 1 Ω
   O23-2 (SGT6) - Body ground	Always	10 kΩ or higher
   O23-9 (TRG-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the O3 ECU connector.
2. Disconnect the O24 handle connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O3-20 (TRG+) - O24-3 (TRG+)	Always	Below 1 Ω
   O24-3 (TRG+) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the door electrical key oscillator with a new one or normally functioning one. Refer to REMOVAL [09/2012 - ] .
2. Check that the entry function operates normally. Refer to OPERATION CHECK [09/2012 - ] .

   OK

   Operates normally

NG → See step   17

OK → END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

1. Replace the rear door outside handle RH with a new one or normally functioning one. Refer to REMOVAL [09/2012 - ] .
2. Check that the entry function operates normally. Refer to OPERATION CHECK [09/2012 - ] .

   OK

   Operates normally

NG → See step   19

OK → END (REAR DOOR OUTSIDE HANDLE RH IS DEFECTIVE)
