DCM Data Signal Circuit Between Navigation Ecu And DCM: Wiring Diagram

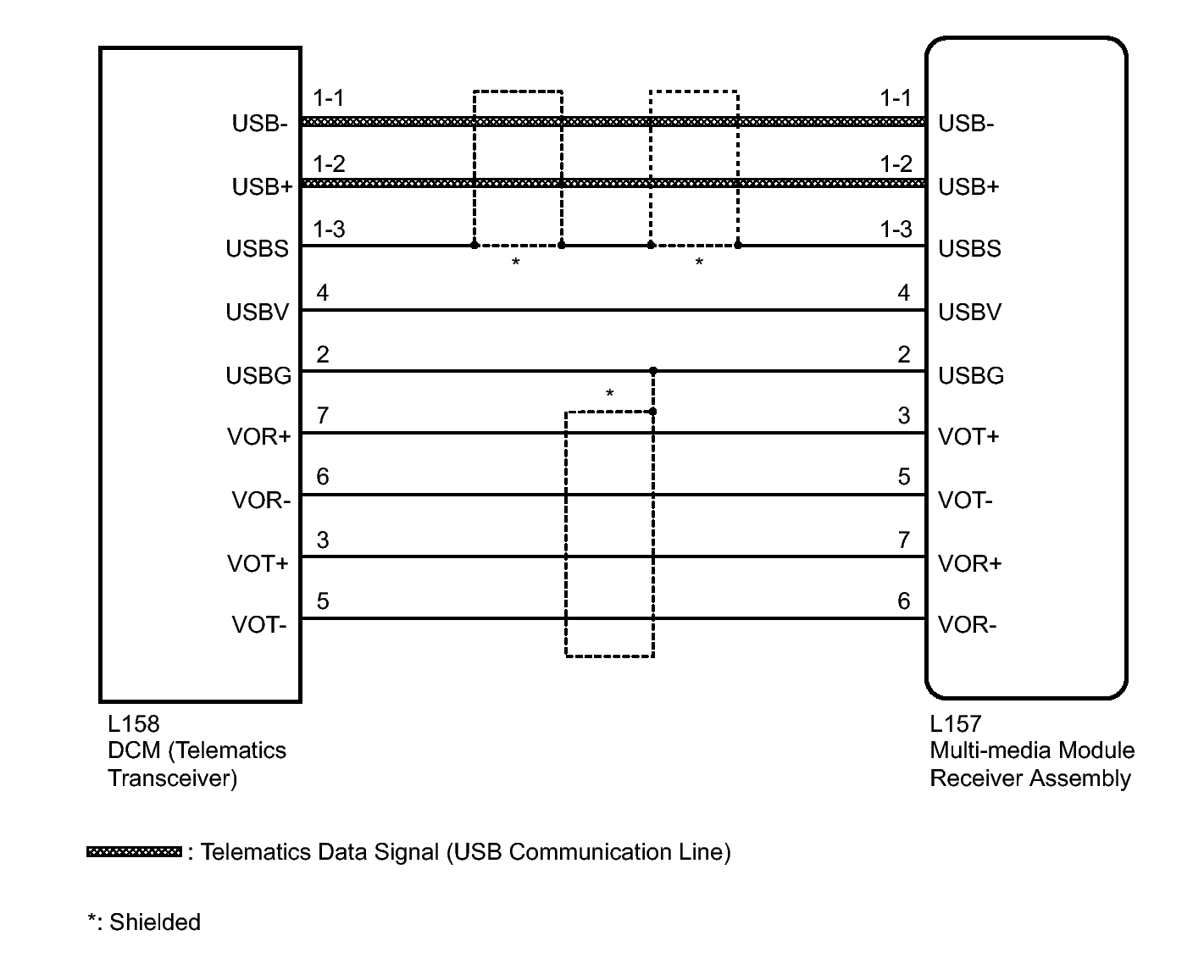

Fig 1: DCM Data Signal Circuit Diagram

GTY412367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
