All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate: Wiring Diagram

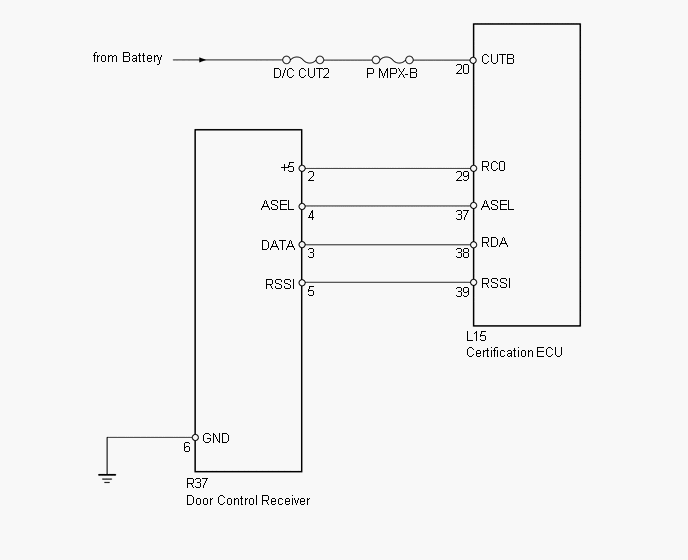

Fig 1: Door Control Receiver And Certification ECU - Wiring Diagram
GTY354785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
