Unable to Unlock Steering Wheel: Wiring Diagram

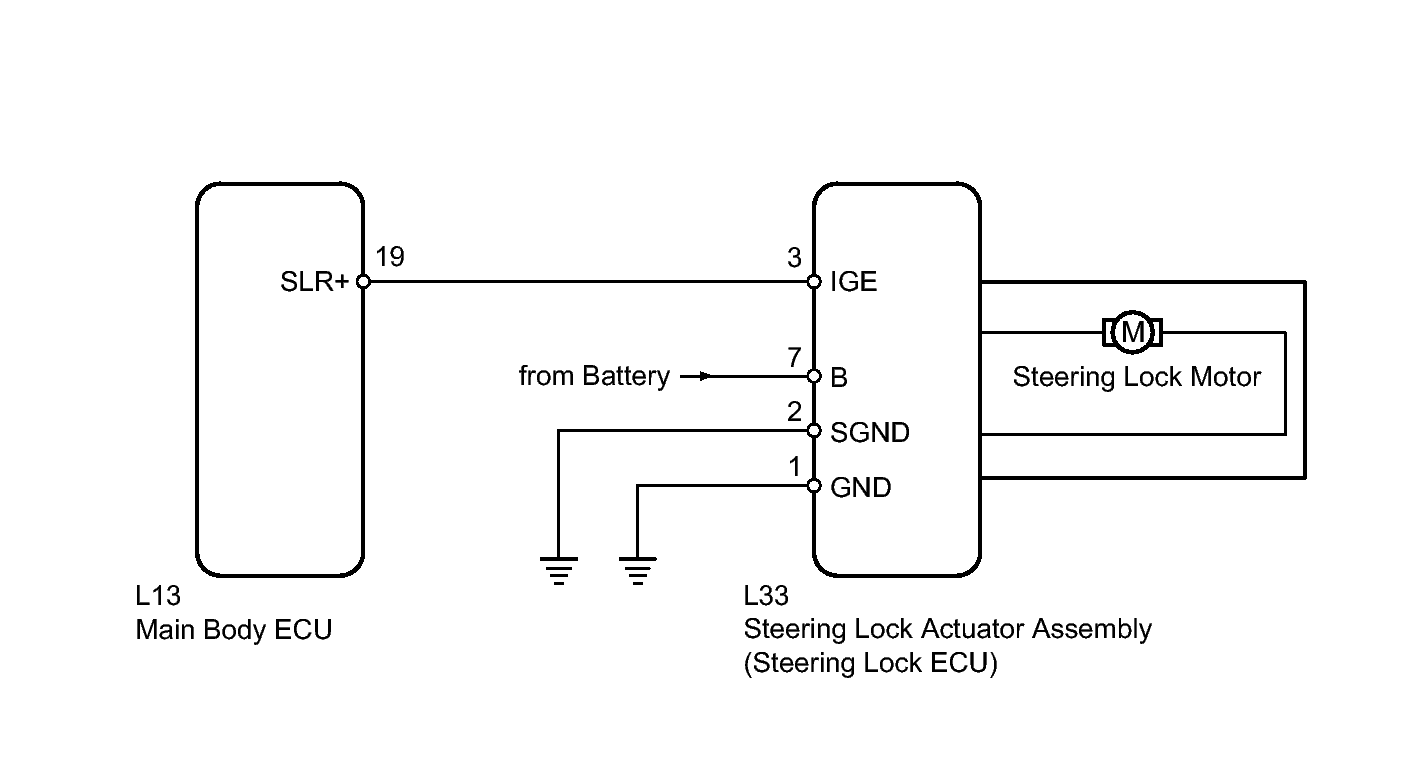

Fig 1: Steering Lock Motor Wiring Diagram

GTY351038

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
