DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input): Wiring Diagram

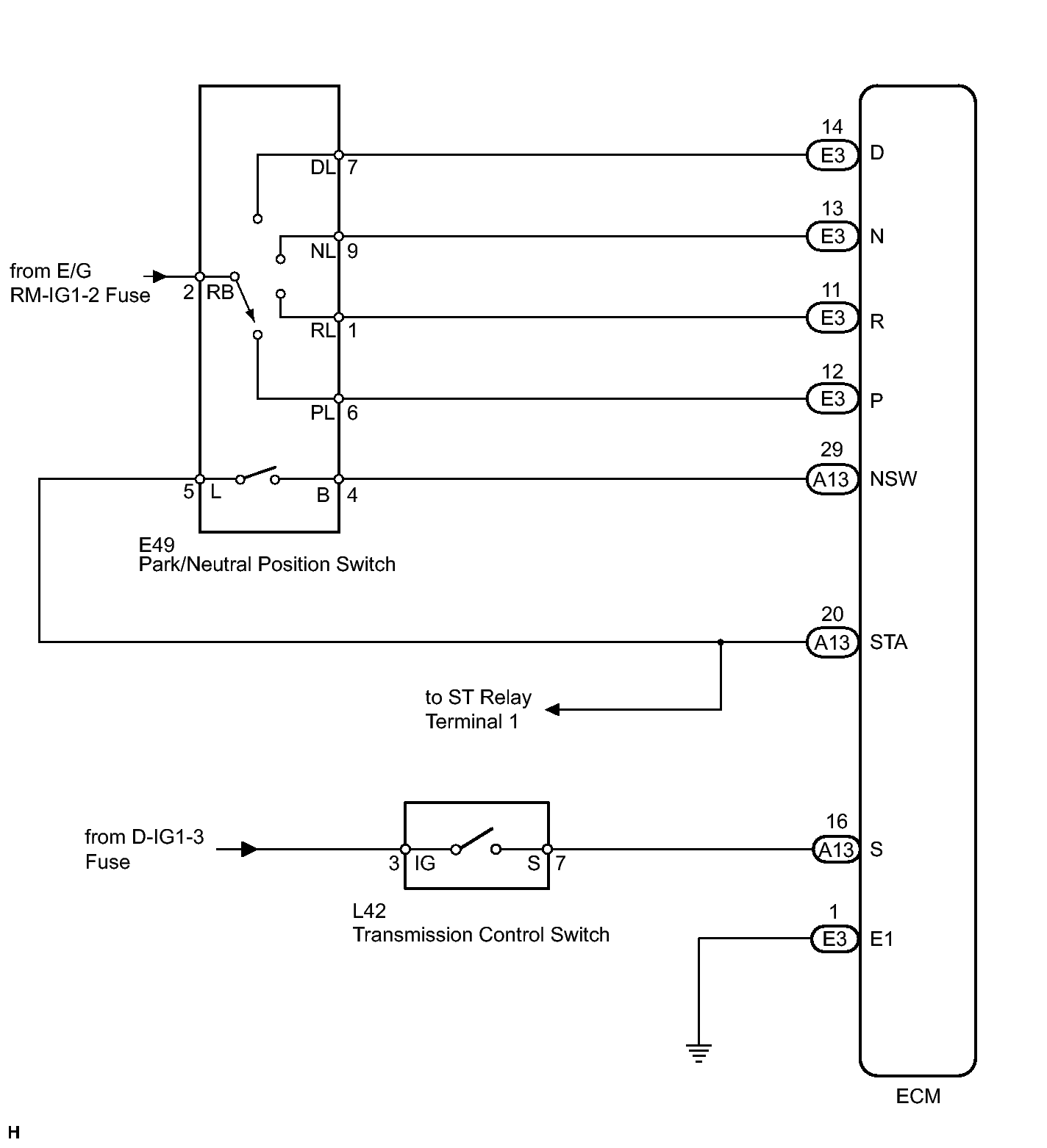

Fig 1: ECM Wiring Diagram

GTY403193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
