DTC B1790: Center Airbag Sensor Assembly Communication Circuit Malfunction: Wiring Diagram

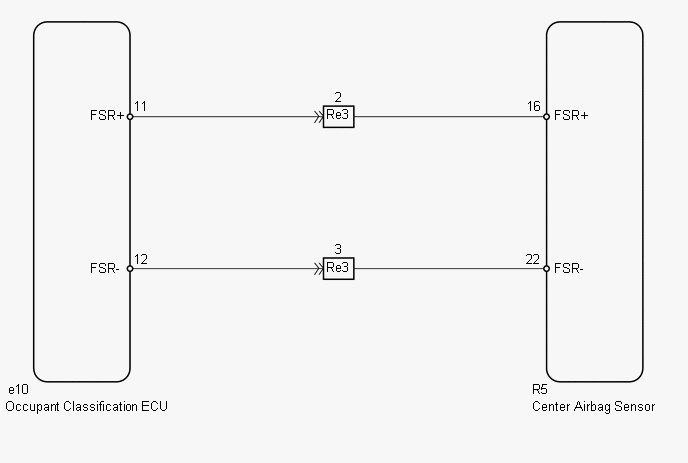

Fig 1: Center Airbag Sensor - Wiring Diagram

GTY123458

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
