Key-off Operation Function Operates even if Operating Conditions are not Satisfied: Wiring Diagram

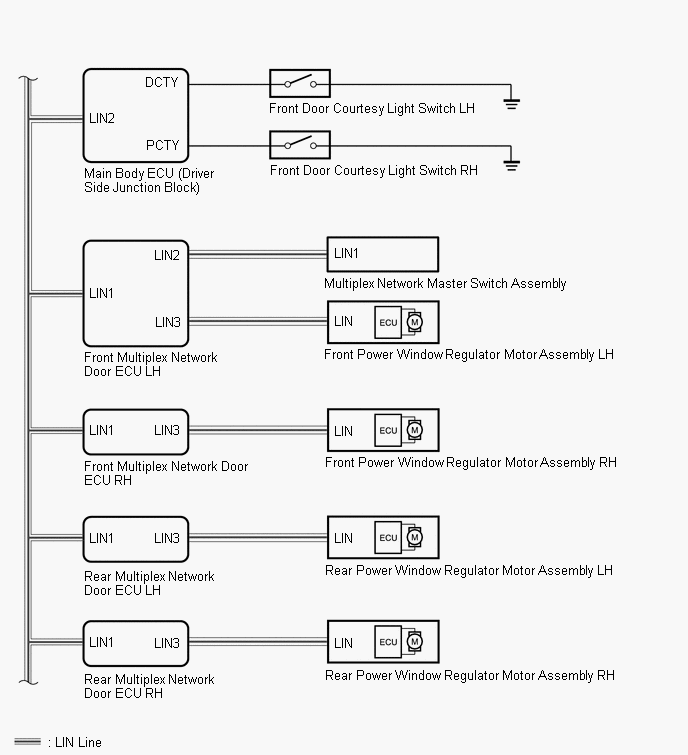

Fig 1: Main Body ECU LIN - Wiring Diagram

GTY288723

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
