Headlight Cleaner Switch Circuit: Procedure

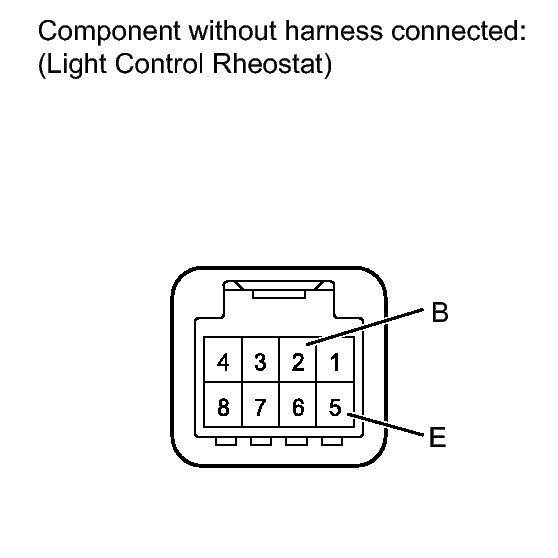

- INSPECT LIGHT CONTROL RHEOSTAT
- Remove the light control rheostat. Refer to REMOVAL [09/2012 - ]
.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Switch Condition Specified Condition 2 (B) - 5 (E) Headlight cleaner switch ON (Pushed) Below 200 Ω 2 (B) - 5 (E) Headlight cleaner switch OFF (Not pushed) 10 kΩ or higher
NG → See step 7
OK: Go to next step
- Remove the light control rheostat. Refer to REMOVAL [09/2012 - ]
.

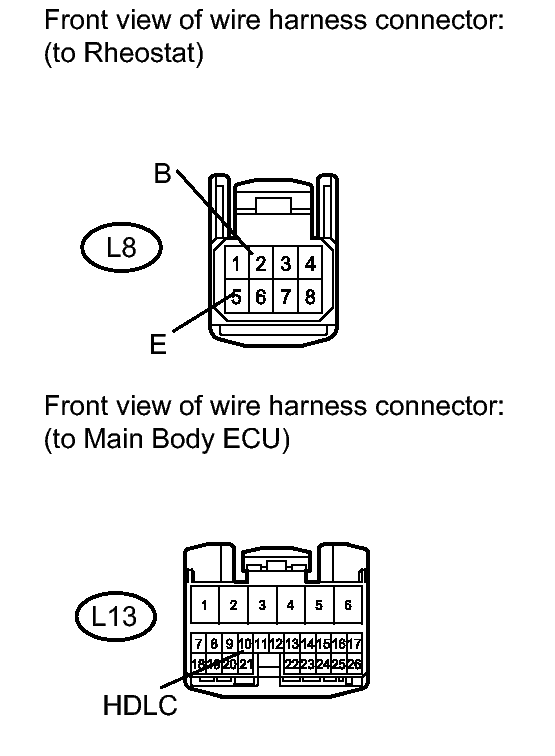

- CHECK HARNESS AND CONNECTOR (RHEOSTAT - MAIN BODY ECU AND BODY GROUND)
- Disconnect the L8 switch connector.
- Disconnect L13 ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition L8-2 (B) - L13-10 (HDLC) Always Below 1 Ω L8-5 (E) - Body ground Always Below 1 Ω L13-10 (HDLC) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the L8 switch connector.

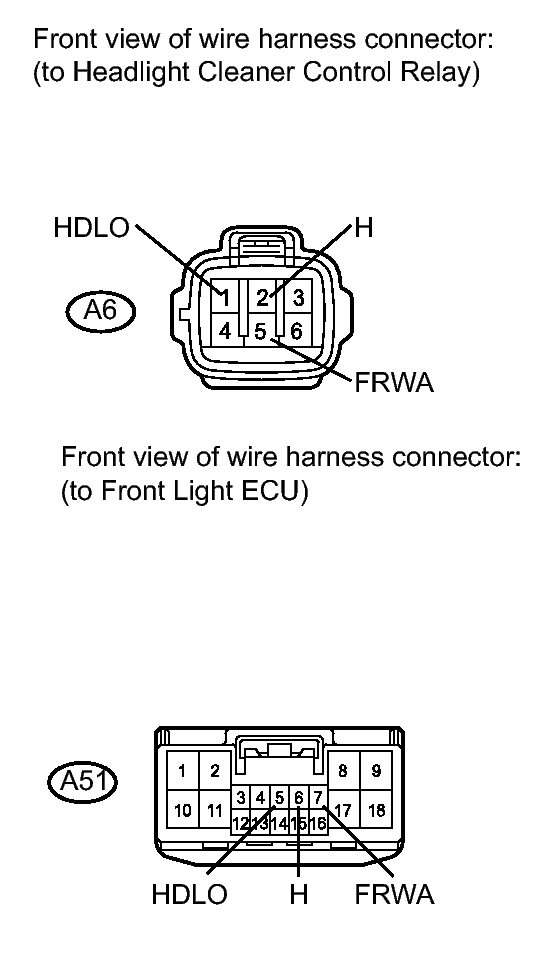

- CHECK HARNESS AND CONNECTOR (CONTROL RELAY - FRONT LIGHT ECU)
- Disconnect the A6 relay connector.
- Disconnect the A51 ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition A6-1 (HDLO) - A51-5 (HDLO) Always Below 1 Ω A6-2 (H) - A51-6 (H) Always Below 1 Ω A6-5 (FRWA) - A51-7 (FRWA) Always Below 1 Ω A6-1 (HDLO) - Body ground Always 10 kΩ or higher A6-2 (H) - Body ground Always 10 kΩ or higher A6-5 (FREWA) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the A6 relay connector.

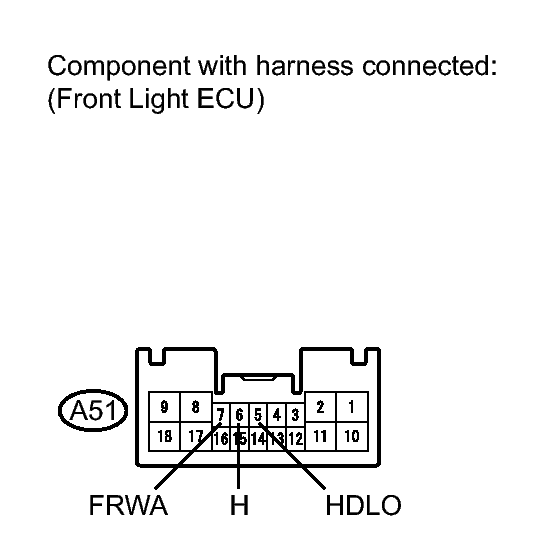

- CHECK FRONT LIGHT ECU
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Condition Specified Condition A51-5 (HDLO) - Body ground Engine switch on (IG), light control switch OFF 11 to 14 V A51-5 (HDLO) - Body ground Engine switch on (IG), light control switch in HEAD Below 1 V A51-6 (H) - Body ground Headlight cleaner switch OFF 11 to 14 V A51-6 (H) - Body ground Headlight cleaner switch ON Below 1 V A51-7 (FRWA) - Body ground Engine switch on (IG), front washer is stopped 11 to 14 V A51-7 (FRWA) - Body ground Engine switch on (IG), front washer is operated Below 1 V
NG → See step 6
OK → See step 5
- Measure the voltage according to the value(s) in the table below.
- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [09/2012 - ]
- REPLACE HEADLIGHT CLEANER CONTROL RELAY. Refer to REMOVAL [09/2012 - ]
- REPLACE LIGHT CONTROL RHEOSTAT. Refer to REMOVAL [09/2012 - ]
