Rear Side Switch Module LIN Communication Malfunction: Wiring Diagram

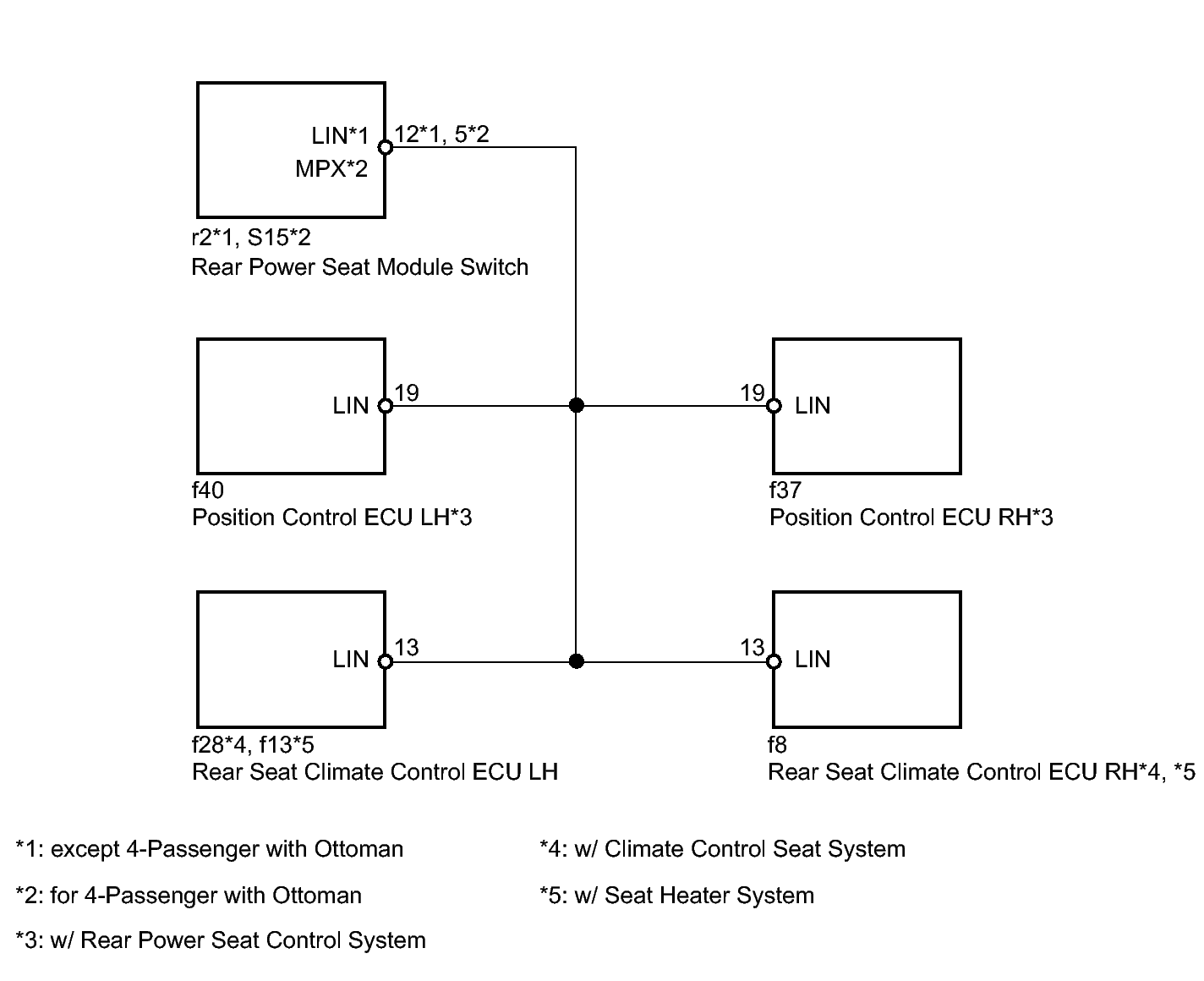

Fig 1: Rear Power Seat Module Switch Wiring Diagram

GTY408339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
