DTC U1114: Lost Communication with Main Switch Module: Wiring Diagram

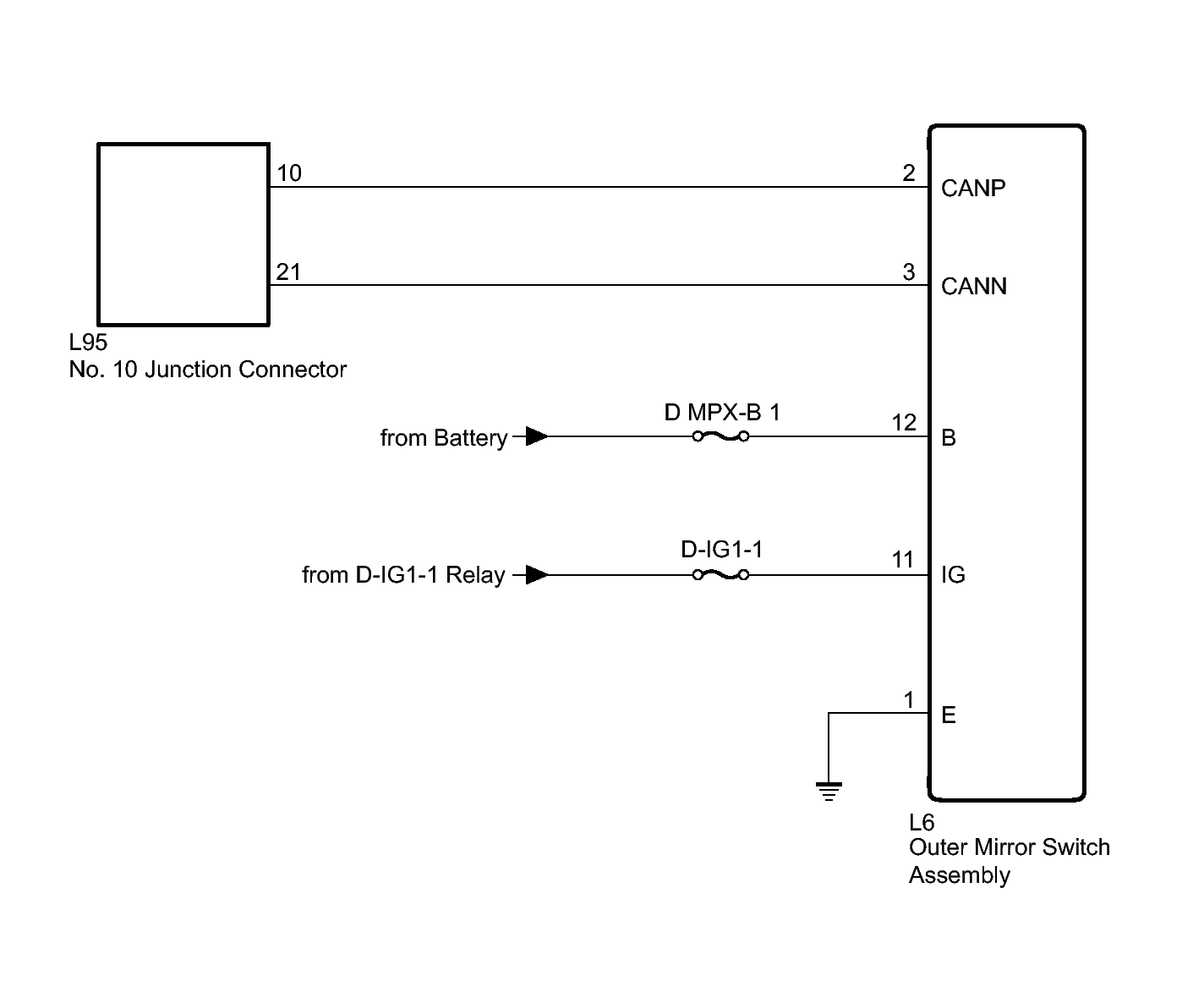

Fig 1: Main Switch Module Wiring Diagram

GTY403480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
