Rear Door RH Entry Lock and Unlock Functions do not Operate: Procedure

1. When the master switch assembly's door control switch is operated, check that the locked doors unlock.
   RESULT



   Result	Proceed to
   Door locks operate normally	OK
   Door locks do not operate normally	NG

NG → See step   18

OK: Go to next step

1. Using the Techstream, read the Data List.
   REAR RIGHT DOOR (REAR DOOR ECU RH)



   Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
   Lock Position SW	Rear RH side door lock position switch signal / ON or OFF	ON: Rear RH side door is unlocked OFF: Rear RH side door is locked	-

   OK

   On the screen, item changes between ON and OFF according to above chart.

NG → See step   21

OK: Go to next step

1. Using the Techstream, read the Data List.
   REAR RIGHT DOOR (REAR DOOR ECU RH)



   Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
   Entry Sensor	Rear RH side door touch sensor / ON or OFF	ON: Rear RH side door sensor is touched OFF: Rear RH side door sensor is not touched	-
   Outside Handle Trigger SW	Rear RH side door outside handle lock switch / ON or OFF	ON: Rear RH side door outside handle lock switch is pushed OFF: Rear RH side door outside handle lock switch is not pushed	-

   RESULT



   Result	Proceed to
   Display does not change according to manual operation	A
   Display changes according to manual operation	B

B → See step   10

A: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

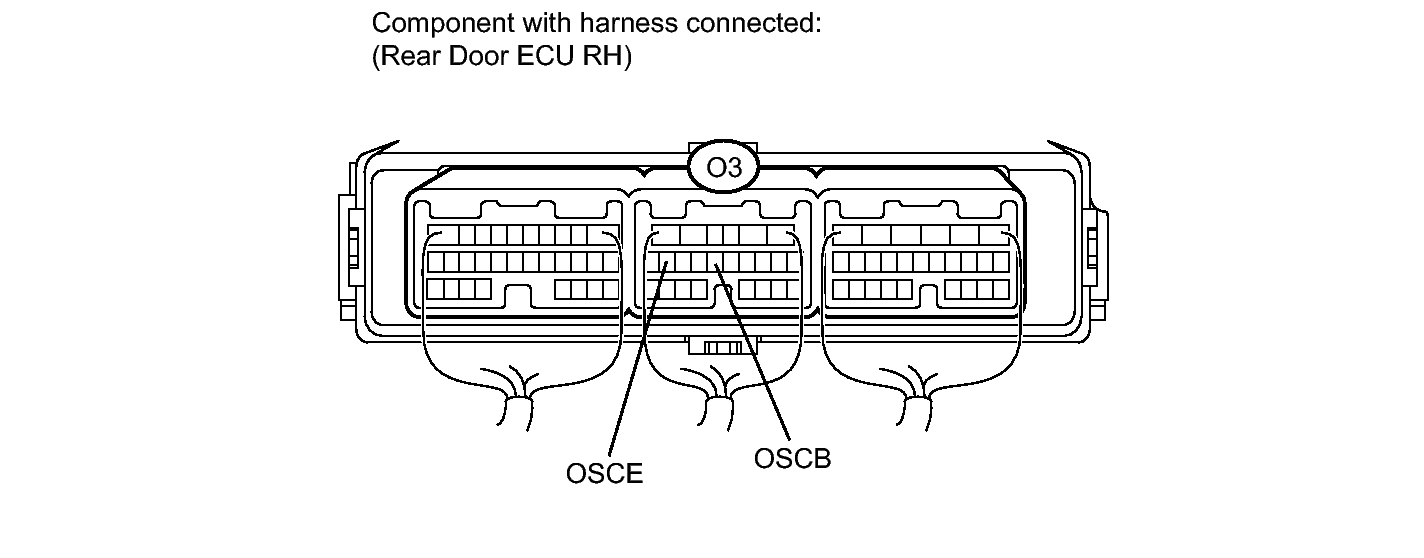

1. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   O3-12 (OSCB) - O3-15 (OSCE)	Always	11 to 14 V

NG → See step   19

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

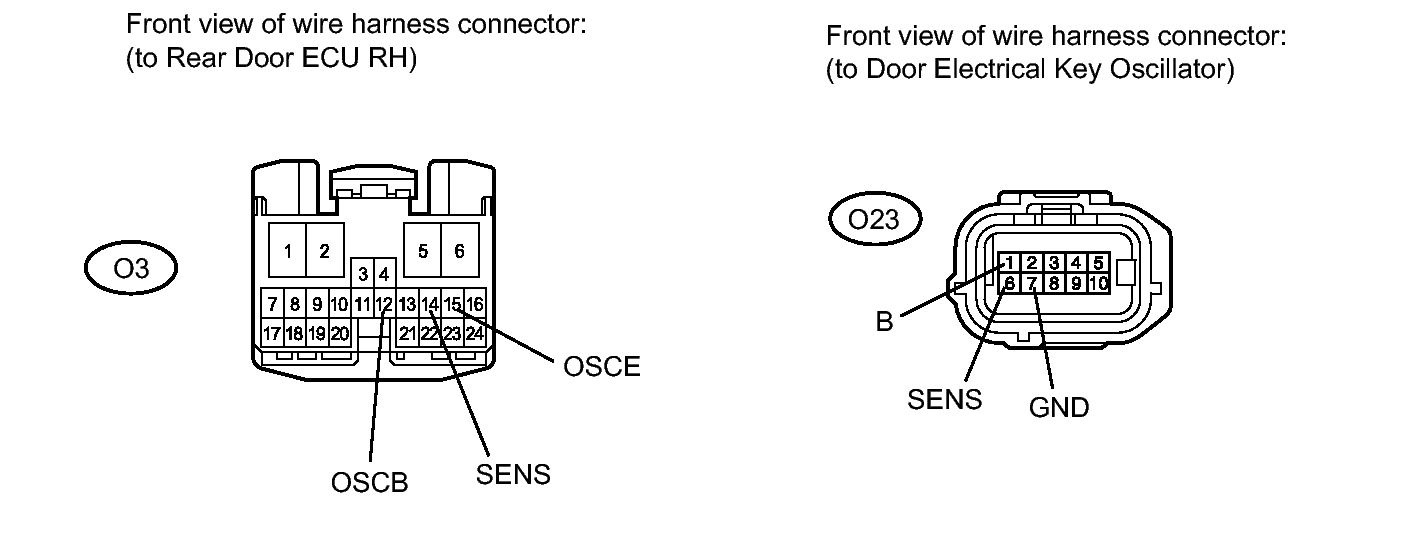

1. Disconnect the O23 oscillator connector.
2. Disconnect the O3 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O23-1 (B) - O3-12 (OSCB)	Always	Below 1 Ω
   O23-6 (SENS) - O3-14 (SENS)	Always	Below 1 Ω
   O23-7 (GND) - O3-15 (OSCE)	Always	Below 1 Ω
   O23-1 (B) - Body ground	Always	10 kΩ or higher
   O23-6 (SENS) - Body ground	Always	10 kΩ or higher
   O23-7 (GND) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

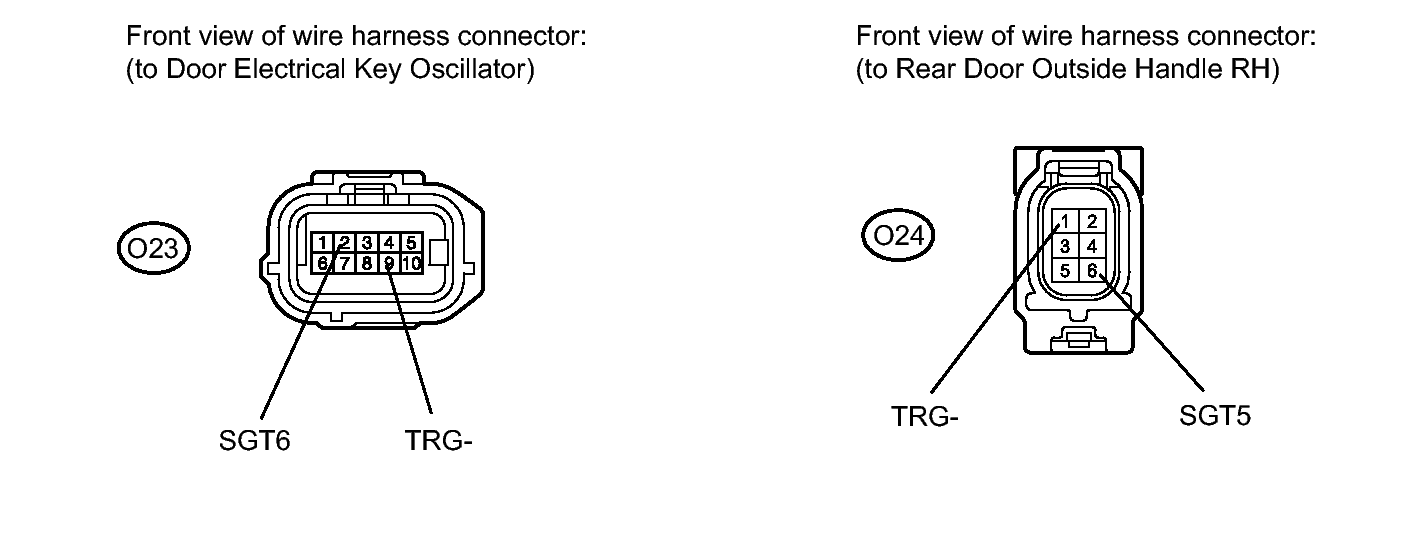

1. Disconnect the O24 handle connector.
2. Disconnect the O23 oscillator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O23-2 (SGT6) - O24-6 (SGT5)	Always	Below 1 Ω
   O23-9 (TRG-) - O24-1 (TRG-)	Always	Below 1 Ω
   O23-2 (SGT6) - Body ground	Always	10 kΩ or higher
   O23-9 (TRG-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

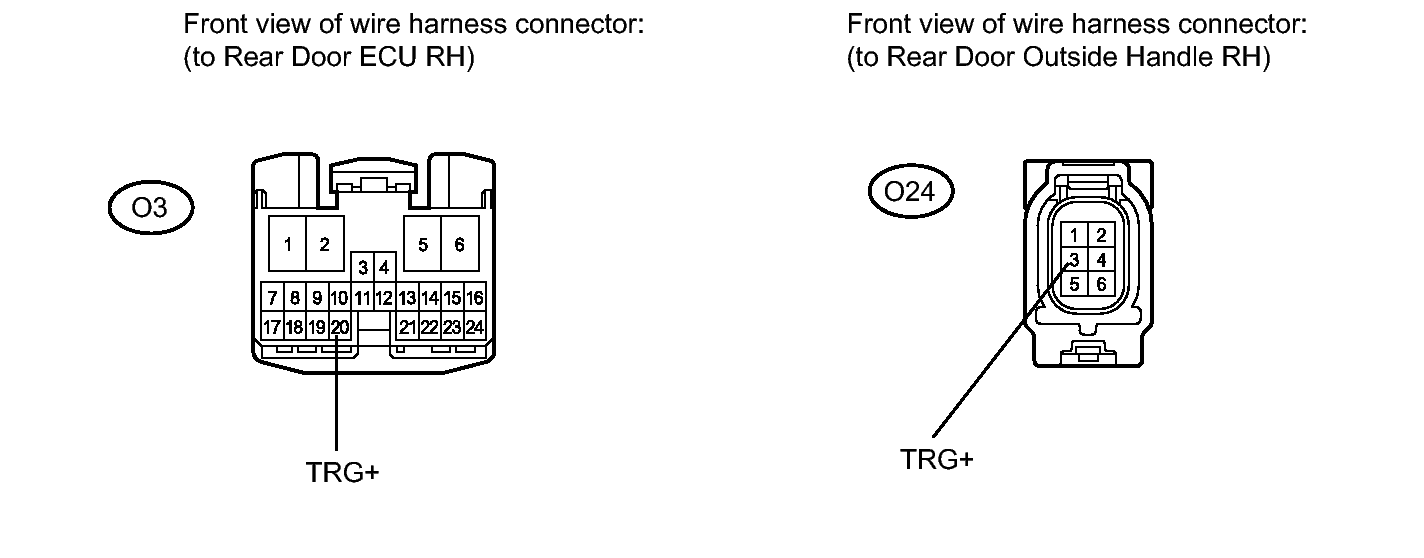

1. Disconnect the O24 handle connector.
2. Disconnect the O3 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O24-3 (TRG+) - O3-20 (TRG+)	Always	Below 1 Ω
   O24-3 (TRG+) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the door electrical key oscillator with a new one or normally functioning one. Refer to COMPONENTS [09/2012 - ] .
2. Check that the entry function operates normally.

   OK

   Operates normally

NG → See step   9

OK → END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

1. Replace the rear door outside handle RH with a new one or normally functioning one. Refer to REMOVAL [09/2012 - ] .
2. Check that the entry function operates normally.

   OK

   Operates normally

NG → See step   19

OK → END (REAR DOOR OUTSIDE HANDLE RH IS DEFECTIVE)

1. Bring the electrical key transmitter near the rear right door outside handle, and perform a rear right door entry lock and unlock operation check.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the key is brought within 0.2 m (0.6 ft.) of the door handle, communication is not possible.

   HINT:

   • When the electrical key transmitter is brought near the rear right passenger door outside handle, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
   RESULT



   Result	Proceed to
   Operation check fails	A
   Operation check is normal	B

B → AFFECTED BY WAVE INTERFERENCE

A: Go to next step

1. Diagnostic mode inspection (rear door RH outside oscillator)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical/ Smart Access / Smart Communication Check /Overhead + Driver Side Rear.
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      If the buzzer sounds, it can be determined that the rear right seat outside transmitter is operating normally.

      OK

      Wireless door lock buzzer sounds

NG → See step   12

OK → END (CERTIFICATION ECU IS DEFECTIVE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

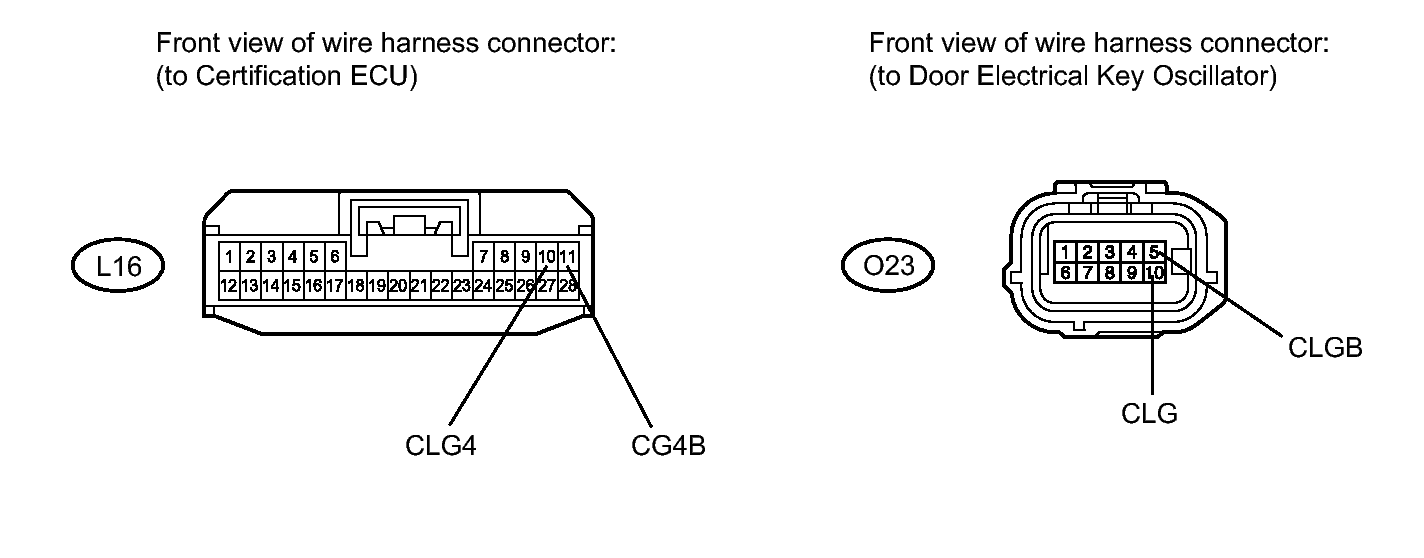

1. Disconnect the O23 oscillator connector.
2. Disconnect the L16 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O23-5 (CLGB) - L16-11 (CG4B)	Always	Below 1 Ω
   O23-10 (CLG) - L16-10 (CLG4)	Always	Below 1 Ω
   O23-5 (CLGB) - Body ground	Always	10 kΩ or higher
   O23-10 (CLG) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

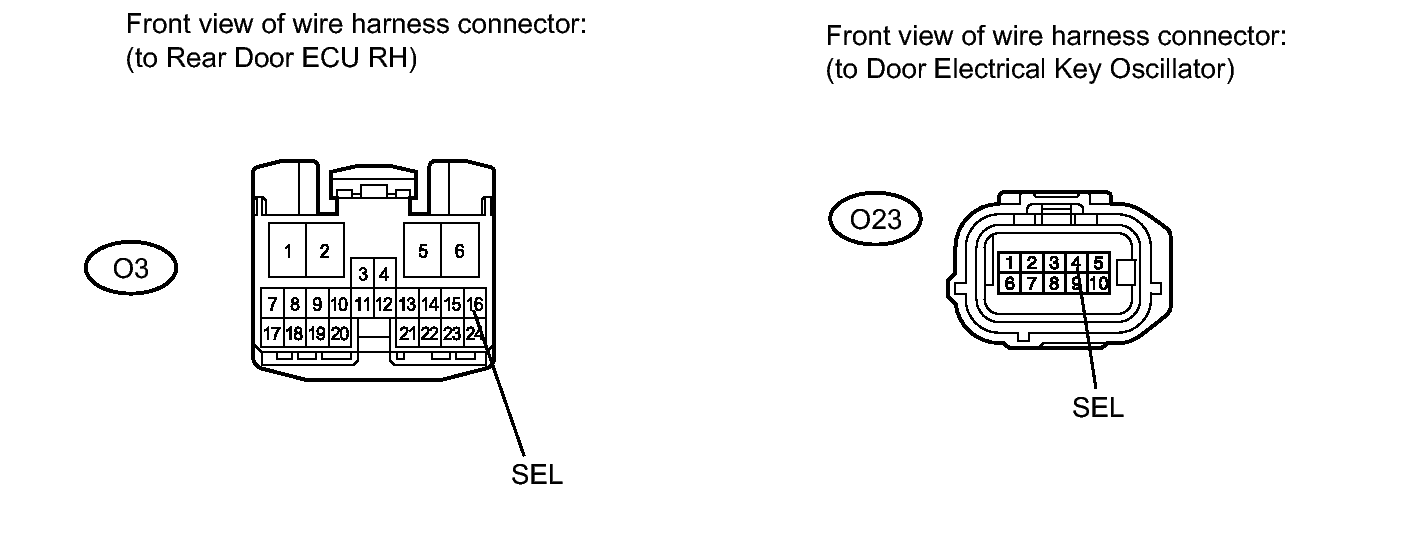

1. Disconnect the O23 oscillator connector.
2. Disconnect the O3 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O23-4 (SEL) - O3-16 (SEL)	Always	Below 1 Ω
   O23-4 (SEL) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

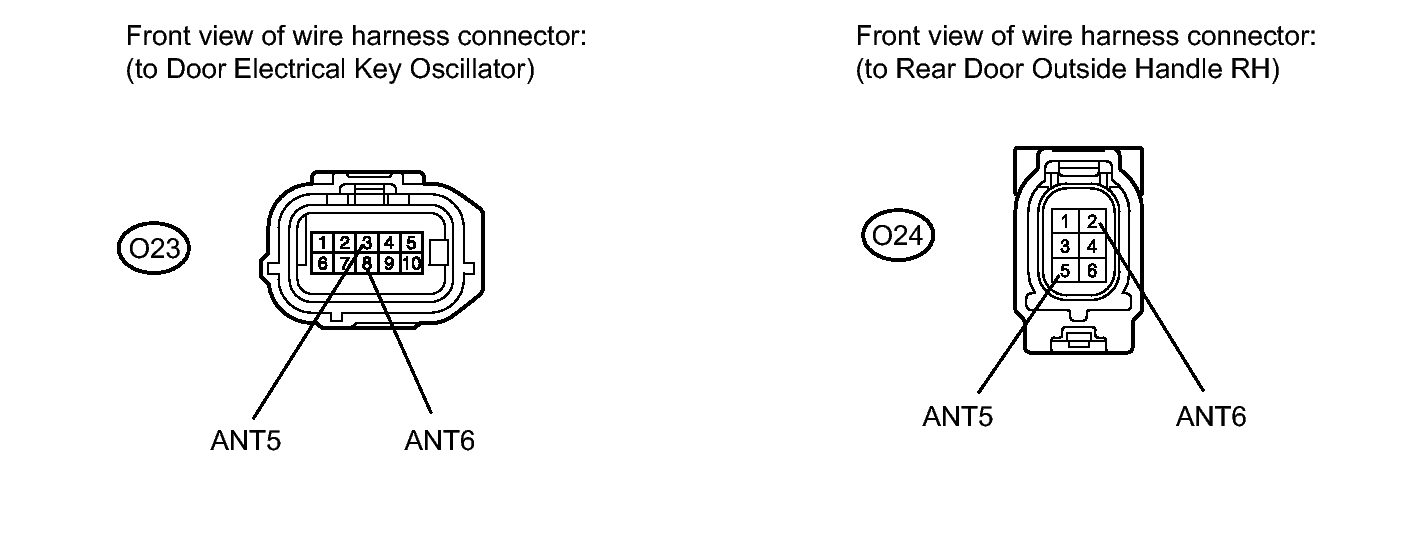

1. Disconnect the O24 handle connector.
2. Disconnect the O23 oscillator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O23-3 (ANT5) - O24-5 (ANT5)	Always	Below 1 Ω
   O23-8 (ANT6) - O24-2 (ANT6)	Always	Below 1 Ω
   O23-3 (ANT5) - Body ground	Always	10 kΩ or higher
   O23-8 (ANT6) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the door electrical key oscillator with a new one or normally functioning one. Refer to COMPONENTS [09/2012 - ] .
2. Check that the entry function operates normally.

   OK

   Operates normally

NG → See step   16

OK → END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

1. Replace the rear door outside handle RH with a new one or normally functioning one. Refer to REMOVAL [09/2012 - ] .
2. Check that the entry function operates normally.

   OK

   Operates normally

NG → See step   17

OK → END (REAR DOOR OUTSIDE HANDLE RH IS DEFECTIVE)

1. Replace the rear door ECU RH with a new one or normally functioning one. Refer to COMPONENTS [09/2012 - ] .
2. Check that the entry function operates normally.

   OK

   Operates normally

NG → See step   20

OK → END (REAR DOOR ECU RH IS DEFECTIVE)
