Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment: Procedure

1. Check that the entry lock and unlock function can be operated at each door.
   RESULT



   Result	Proceed to
   Entry function can be performed	A
   Entry function cannot be performed	B

B → See step   19

A: Go to next step

1. When the luggage door opening switch assembly is operated, check that the luggage compartment door opens.
   RESULT



   Result	Proceed to
   Luggage compartment door opens (w/o power trunk opener and closer system)	A
   Luggage compartment door does not open (w/o power trunk opener and closer system)	B
   Luggage compartment door opens (w/ power trunk opener and closer system)	C
   Luggage compartment door does not open (w/ power trunk opener and closer system)	D

B → See step   20

C → See step   11

D → See step   21

A: Go to next step

1. Using the Techstream, read the Data List.
   BODY NO. 4 (REAR ROOM JUNCTION BLOCK ECU)



   Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
   Luggage Push Switch	Luggage electrical key switch / ON or OFF	ON: Luggage electrical key switch is pushed OFF: Luggage electrical key switch is not pushed	-

   OK

   On the screen, item changes between ON and OFF according to above chart.

NG → See step   9

OK: Go to next step

1. Bring the electrical key transmitter near the electrical key antenna (in rear bumper), and perform an entry luggage compartment open function check.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the key is brought within 0.2 m (0.6 ft) of the rear bumper, communication is not possible.

   HINT:

   • When the electrical key transmitter is brought near the electrical key antenna, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
   RESULT



   Result	Proceed to
   Operation check fails	A
   Operation check is normal	B

B → AFFECTED BY WAVE INTERFERENCE

A: Go to next step

1. Diagnostic mode inspection (rear inside oscillator)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check /Overhead + Luggage.
   5. When the electrical key transmitter is held at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, check that the wireless door lock buzzer sounds.

      HINT:

      If the buzzer sounds, it can be determined that the luggage compartment exterior transmitter is operating normally.

      OK

      Wireless door lock buzzer sounds

NG → See step   6

OK → See step   23

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

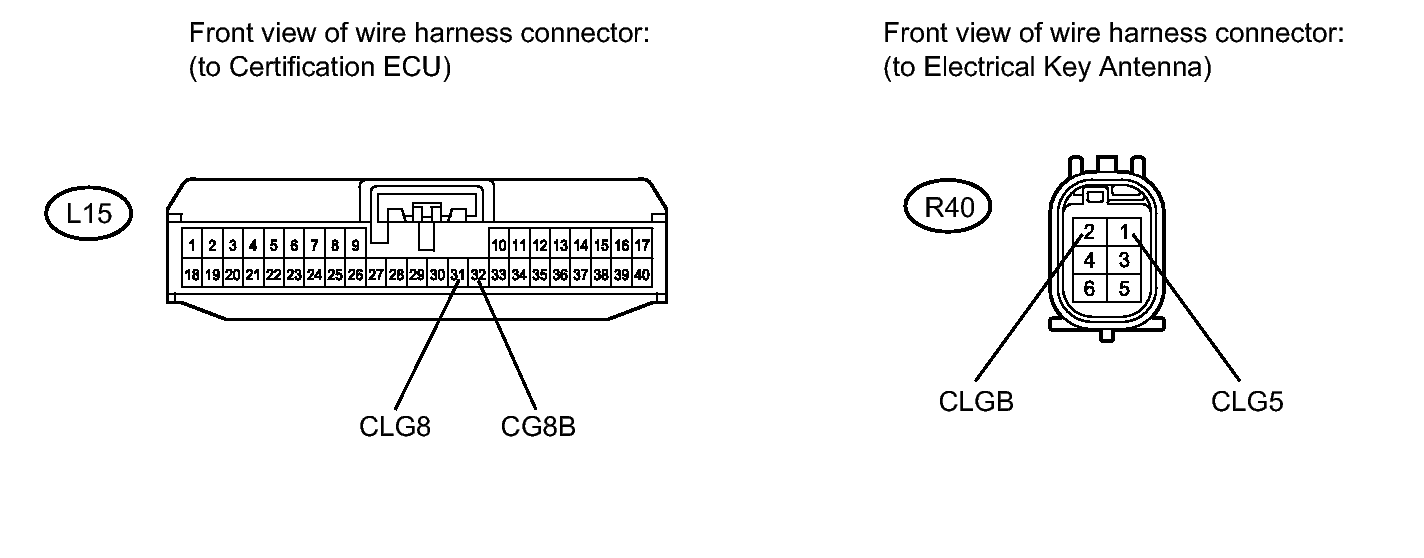

1. Disconnect the R40 antenna connector.
2. Disconnect the L15 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   L15-31 (CLG8) - R40-1 (CLG5)	Always	Below 1 Ω
   L15-32 (CG8B) - R40-2 (CLGB)	Always	Below 1 Ω
   L15-31 (CLG8) or R40-1 (CLG5) - Body ground	Always	10 kΩ or higher
   L15-32 (CG8B) or R40-2 (CLGB) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the electrical key antenna with a new one or normally functioning one. Refer to REMOVAL [09/2012 - ] .
2. Check that the entry luggage compartment open function operates normally.

   OK

   Operates normally

NG → See step   8

OK → END (ELECTRICAL KEY ANTENNA IS DEFECTIVE)

1. Replace the rear junction block ECU with a new one or normally functioning one.
2. Check that the entry luggage compartment open function operates normally.

   OK

   Operates normally

NG → See step   24

OK → END (REAR JUNCTION BLOCK ECU IS DEFECTIVE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

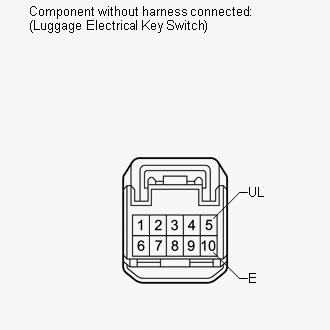

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   5 (UL) - 10 (E)	OFF	Below 1 Ω
   5 (UL) - 10 (E)	ON	10 kΩ or higher

NG → See step   22

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

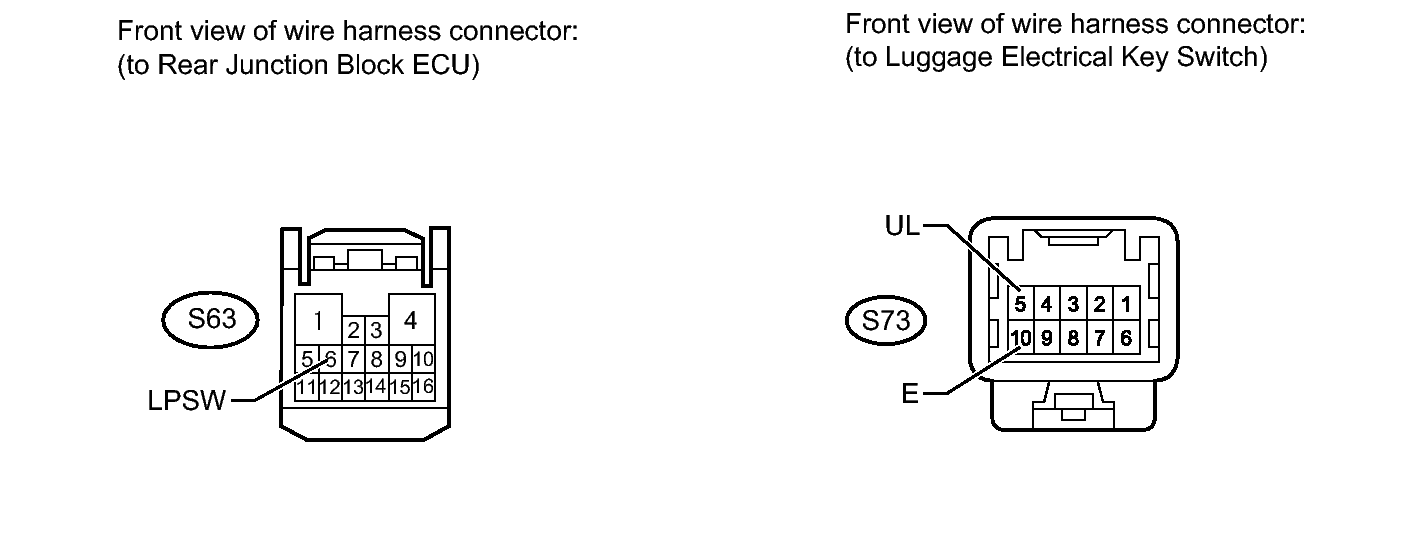

1. Disconnect the S73 luggage electrical key switch connector.
2. Disconnect the S63 rear junction block ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   S73-10 (E) - Body ground	Always	Below 1 Ω
   S73-5 (UL) - S63-6 (LPSW)	Always	Below 1 Ω
   S73-5 (UL) or S63-6 (LPSW) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE LUGGAGE ROOM JUNCTION BLOCK (REAR JUNCTION BLOCK ECU)

1. Using the Techstream, read the Data List.
   BACK DOOR (LUGGAGE CLOSER MOTOR ASSEMBLY)



   Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
   Back Door Handle SW	Luggage electrical key switch / ON or OFF	ON: Luggage electrical key switch is pushed OFF: Luggage electrical key switch is not pushed	-

   HINT:

   For vehicles with the power trunk opener and closer system, the Data List of the power trunk opener and closer ECU can be used to check the luggage electrical key switch information. For vehicles without the power trunk opener and closer system, the Data List of the luggage room junction block ECU can be used to check the luggage electrical key switch information.

   OK

   On the screen, item changes between ON and OFF according to above chart.

NG → See step   17

OK: Go to next step

1. Bring the electrical key transmitter near the electrical key antenna (in rear bumper), and perform an entry luggage compartment open function check.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the key is brought within 0.2 m (0.6 ft.) of the rear bumper, communication is not possible.

   HINT:

   • When the electrical key transmitter is brought near the electrical key antenna, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
   RESULT



   Result	Proceed to
   Operation check fails	A
   Operation check is normal	B

B → See step   27

A: Go to next step

1. Diagnostic mode inspection (rear inside oscillator)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check /Overhead + Luggage.
   5. When the electrical key transmitter is held at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, check that the wireless door lock buzzer sounds.

      HINT:

      If the buzzer sounds, it can be determined that the luggage compartment exterior transmitter is operating normally.

      OK

      Wireless door lock buzzer sounds

NG → See step   14

OK → See step   28

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the R40 antenna connector.
2. Disconnect the L15 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   L15-31 (CLG8) - R40-1 (CLG5)	Always	Below 1 Ω
   L15-32 (CG8B) - R40-2 (CLGB)	Always	Below 1 Ω
   L15-31 (CLG8) or R40-1 (CLG5) - Body ground	Always	10 kΩ or higher
   L15-32 (CG8B) or R40-2 (CLGB) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the electrical key antenna with a new one or normally functioning one. Refer to REMOVAL [09/2012 - ] .
2. Check that the entry luggage compartment open function operates normally.

   OK

   Operates normally

NG → See step   16

OK → END (ELECTRICAL KEY ANTENNA IS DEFECTIVE)

1. Replace the luggage closer motor with a new one or normally functioning one. Refer to REMOVAL [09/2012 - ] .
2. Check that the entry luggage compartment open function operates normally.

   OK

   Operates normally

NG → See step   29

OK → END (LUGGAGE CLOSER MOTOR IS DEFECTIVE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   5 (UL) - 10 (E)	OFF	10 kΩ or higher
   5 (UL) - 10 (E)	ON	Below 1 Ω

NG → See step   25

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

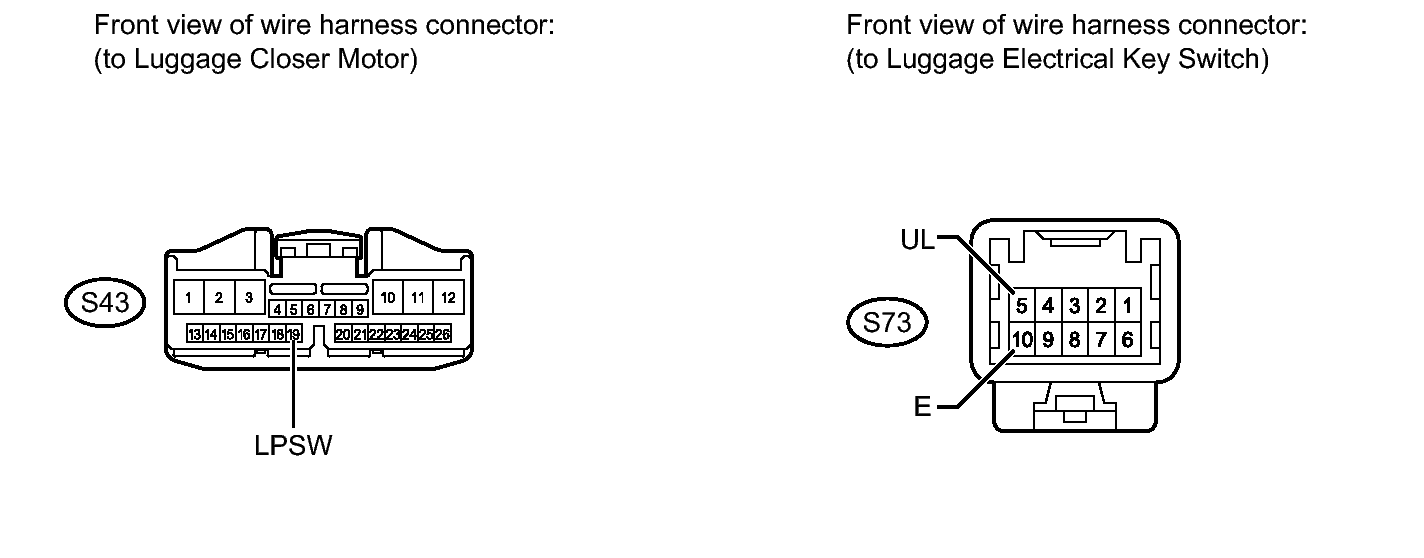

1. Disconnect the S73 luggage electrical key switch connector.
2. Disconnect the S43 luggage closer motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   S73-10 (E) - Body ground	Always	Below 1 Ω
   S73-5 (UL) - S43-19 (LPSW)	Always	Below 1 Ω
   S73-5 (UL) or S43-19 (LPSW) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   26
