Key Luggage Compartment Lock-in Prevention Function does not Operate: Wiring Diagram

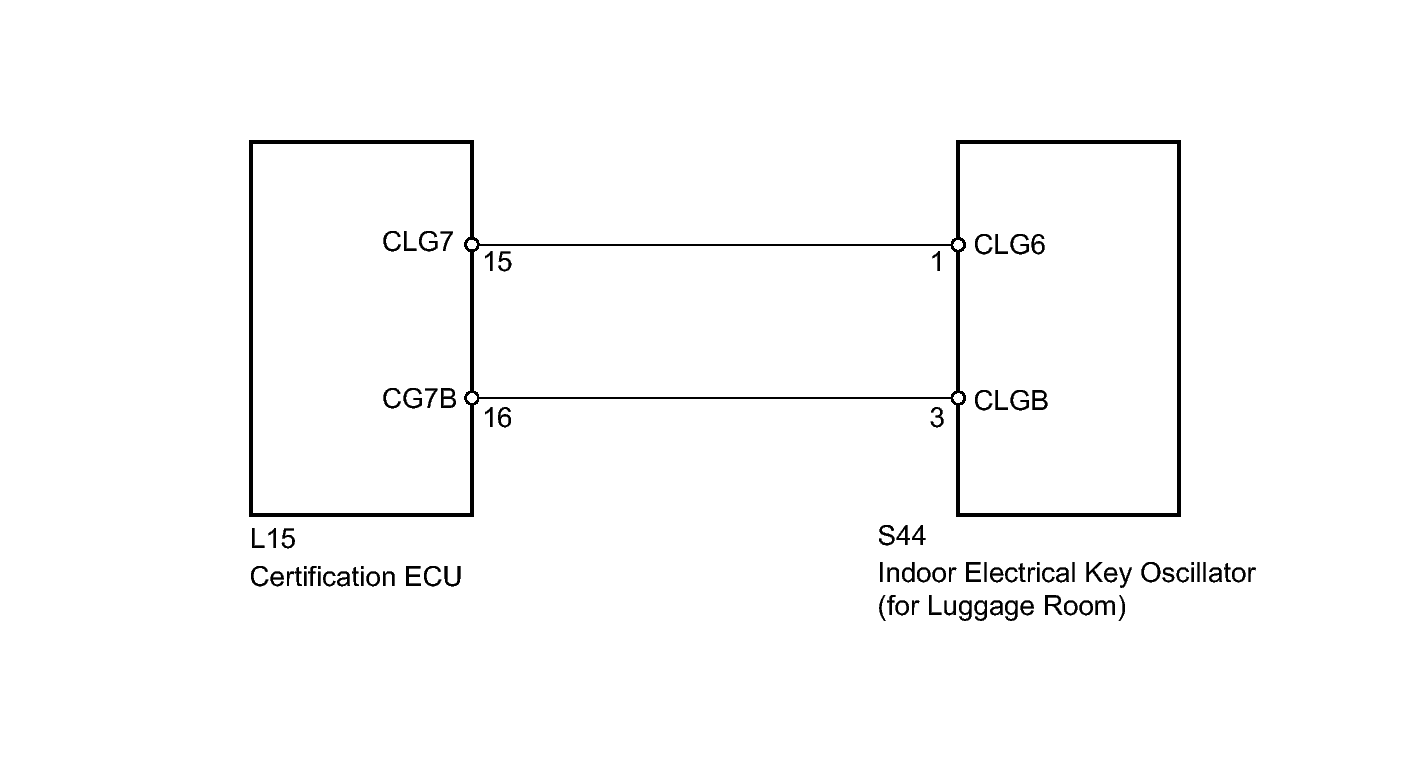

Fig 1: S44 Indoor Electrical Key Oscillator - Wiring Diagram

GTY285885

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
