LS 460 Base, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Anti-Theft Systems
>>
Smart Access System (Keyless Entry) (Diagnostics & Symptom Tests)
>>
Smart Access System With Push-Button Start
>>
Symptom Tests
>>
Driver Side Door Entry Lock and Unlock Functions do not Operate
>>
Wiring Diagram
Driver Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

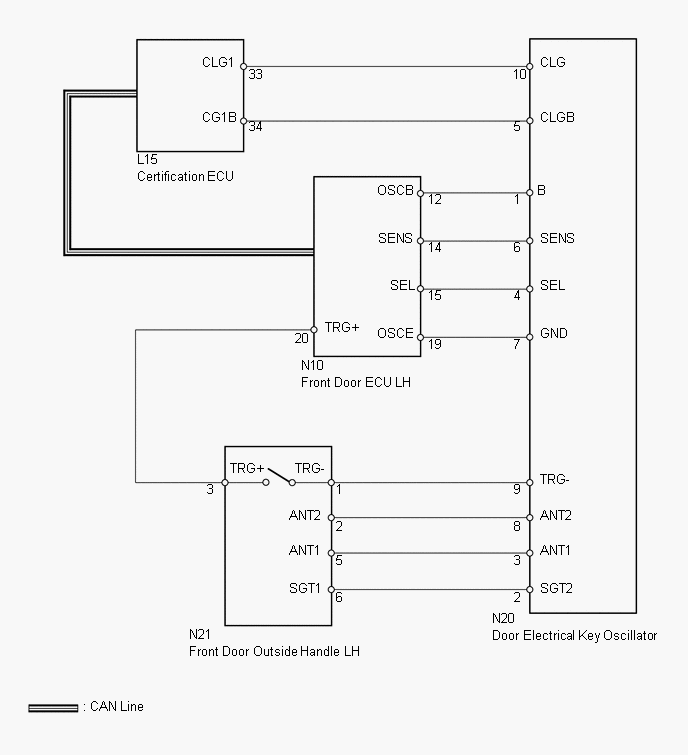

Fig 1: Driver Side Door Electrical Key Oscillator Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
