Unlock Position Sensor Signal Circuit: Wiring Diagram

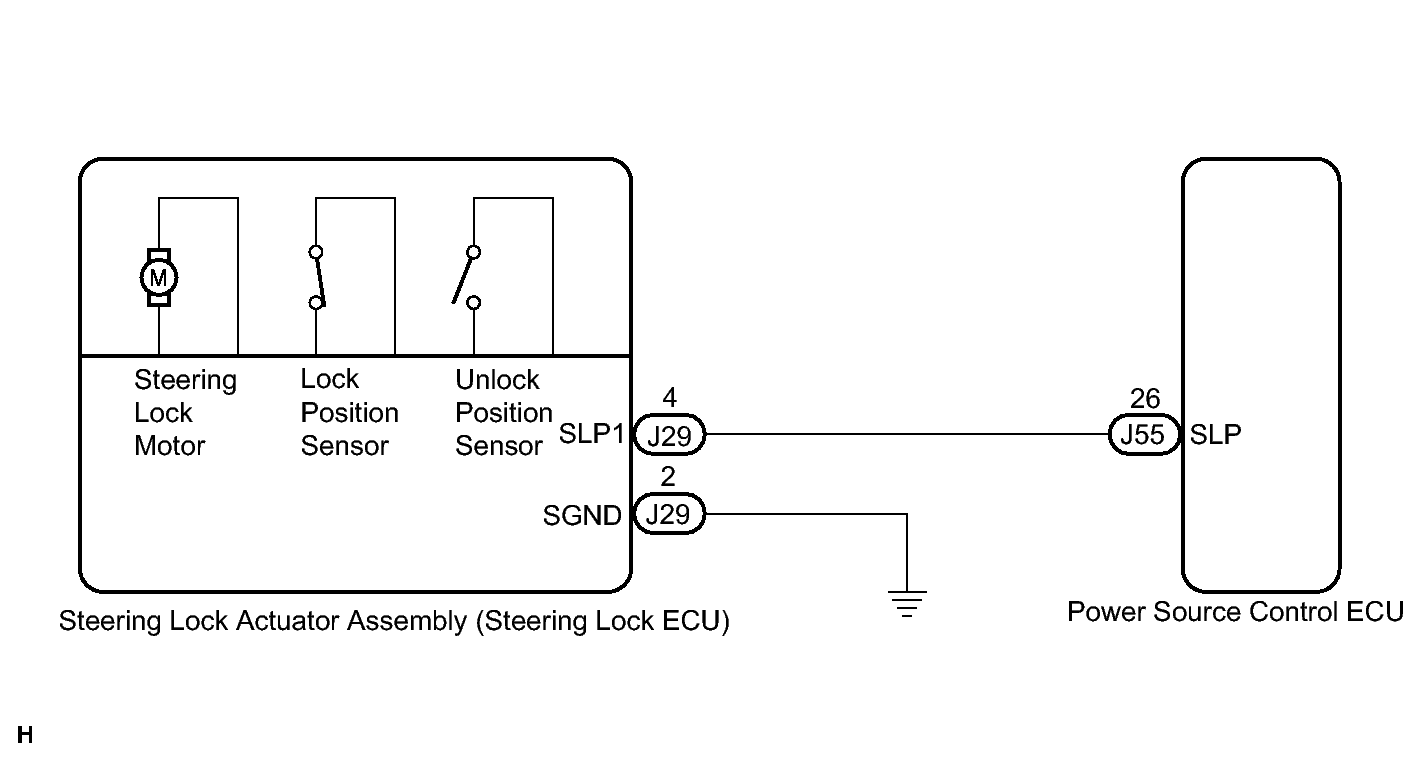

Fig 1: Steering Lock ECU Wiring Diagram

GTY401327

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
