Pattern Select Switch Sport Mode Circuit: Wiring Diagram

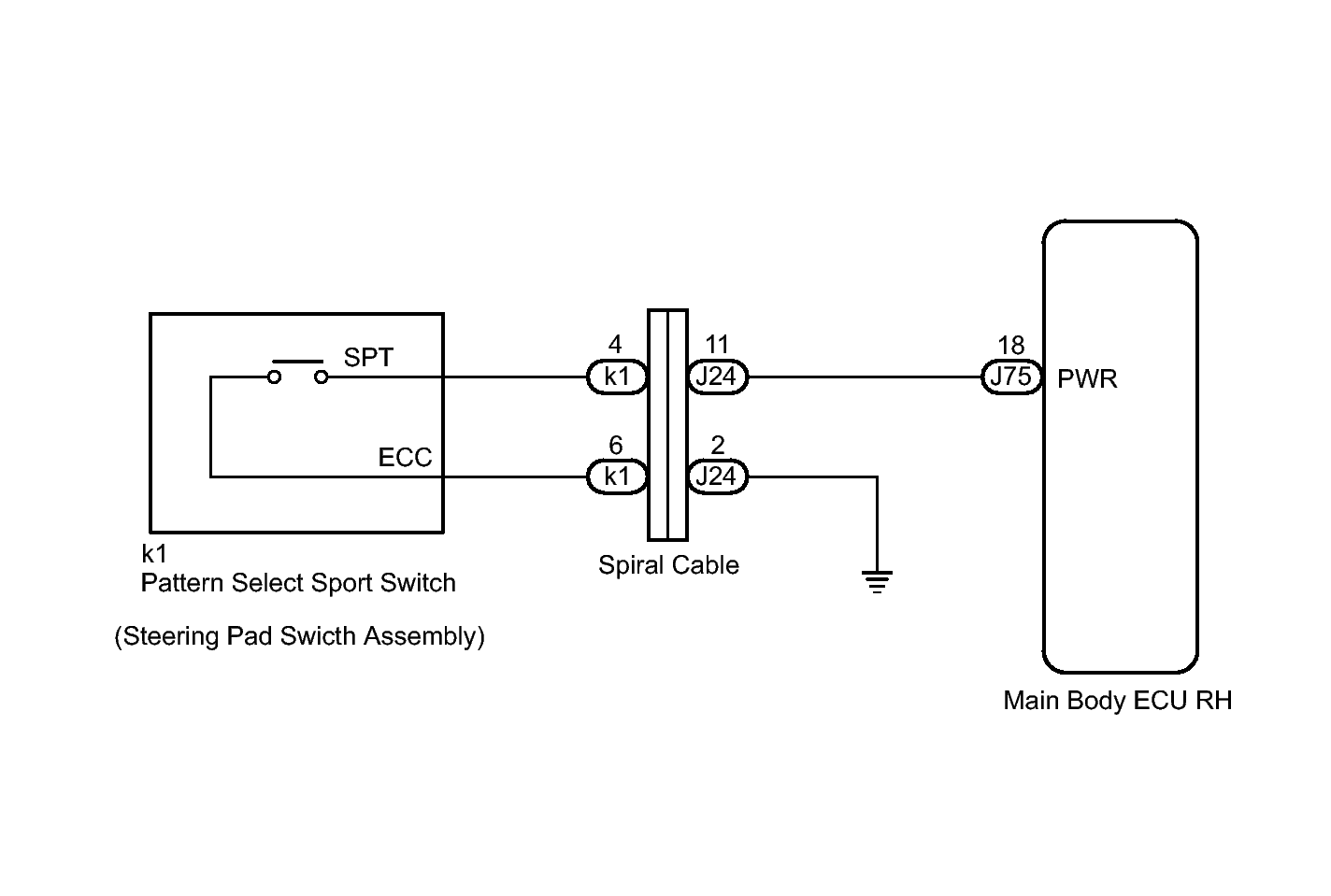

Fig 1: Pattern Select Switch Sport Mode Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Pattern Select SPORT Switch

  When the SPORT switch is pushed, the switch contact is made and the SPORT mode is selected.

  To cancel the SPORT mode, push the SPORT switch once again.

  The SPORT mode is automatically cancelled when the engine switch is turned off.
