Pattern Select Switch Snow Mode Circuit: Wiring Diagram

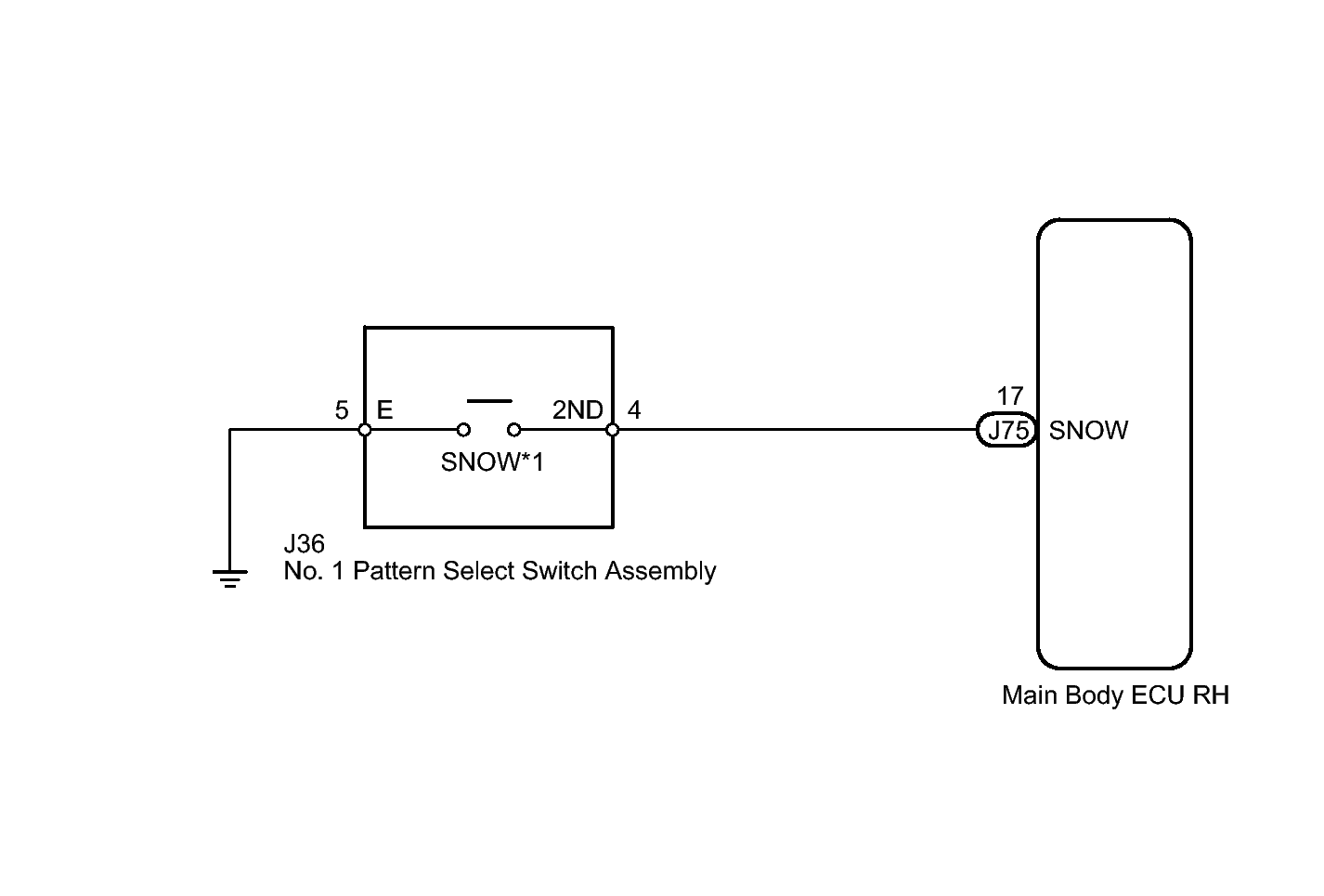

Fig 1: Pattern Select Switch Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• (*1) Pattern Select Switch (SNOW Switch)

  When the SNOW switch is pushed, the switch contact is made and the SNOW mode is selected.

  To cancel the SNOW mode, push the SNOW switch once again.

  The SNOW mode is automatically cancelled when the engine switch is turned off.
