Engine Room Relay Block No. 2 Assembly and Engine Room Junction Block No. 2 Assembly Inner Circuit

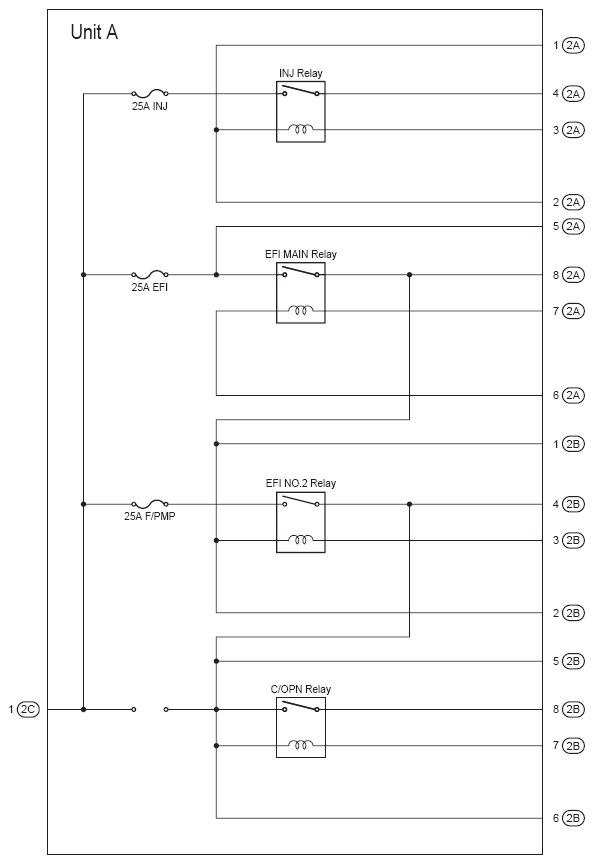

Fig 1: Engine Room Relay Block Assembly And Engine Room J/B Assembly Circuit Diagram (Unit A)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION (UNIT A)

RELAY DESCRIPTION
INJ Relay
EFI Main Relay
EFI No. 2 Relay
C/OPN Relay

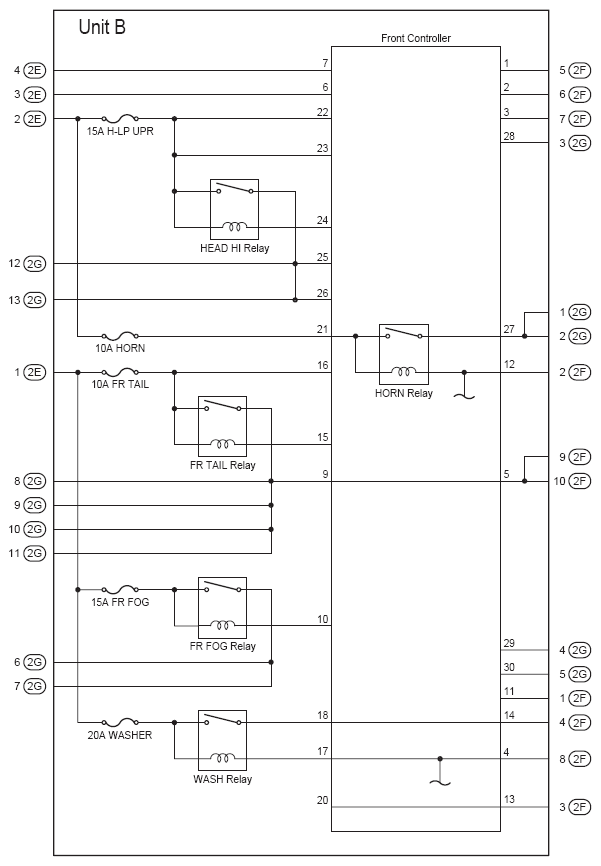

Fig 2: Engine Room Relay Block Assembly And Engine Room J/B Assembly Circuit Diagram (Unit B)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION (UNIT B)

RELAY DESCRIPTION
Head HI Relay
Horn Relay
FR Tail Relay
FR Fog Relay
Wash Relay

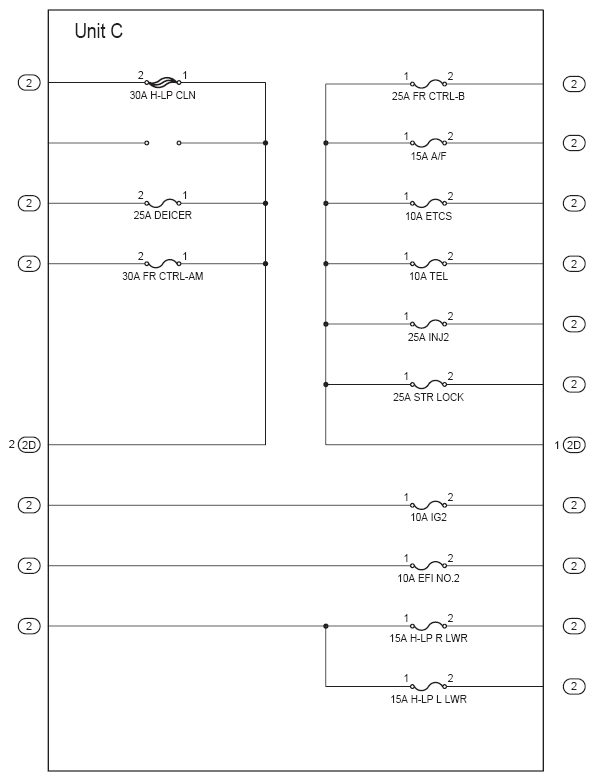

Fig 3: Engine Room R/B Assembly And Engine Room J/B Assembly Circuit Diagram (Unit C)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
