Front Passenger Side ECU Power Source Circuit: Wiring Diagram

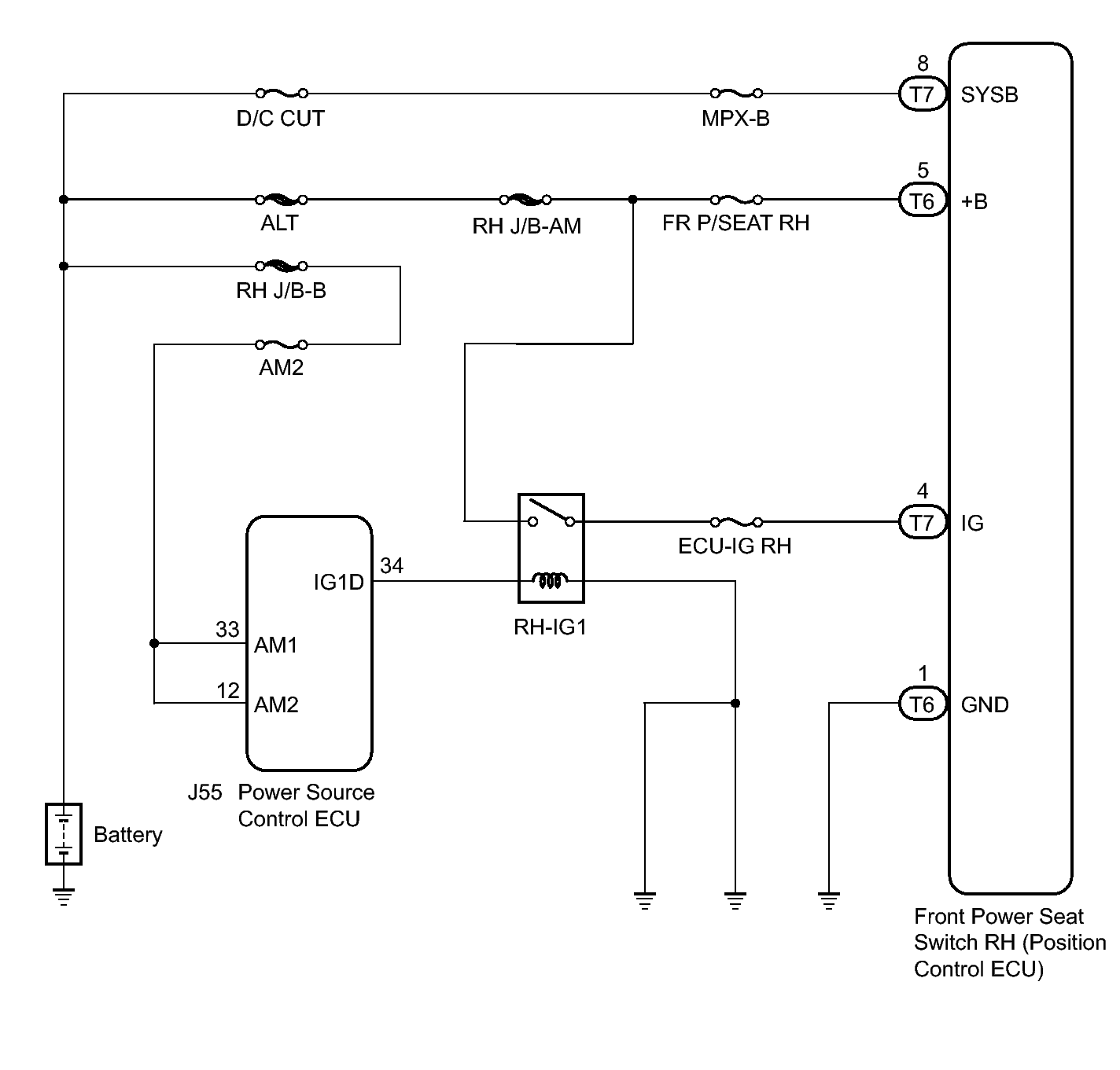

Fig 1: Front Passenger Side ECU Power Source Wiring Diagram

GTY419396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
