Wiper and Washer Switch Circuit: Wiring Diagram

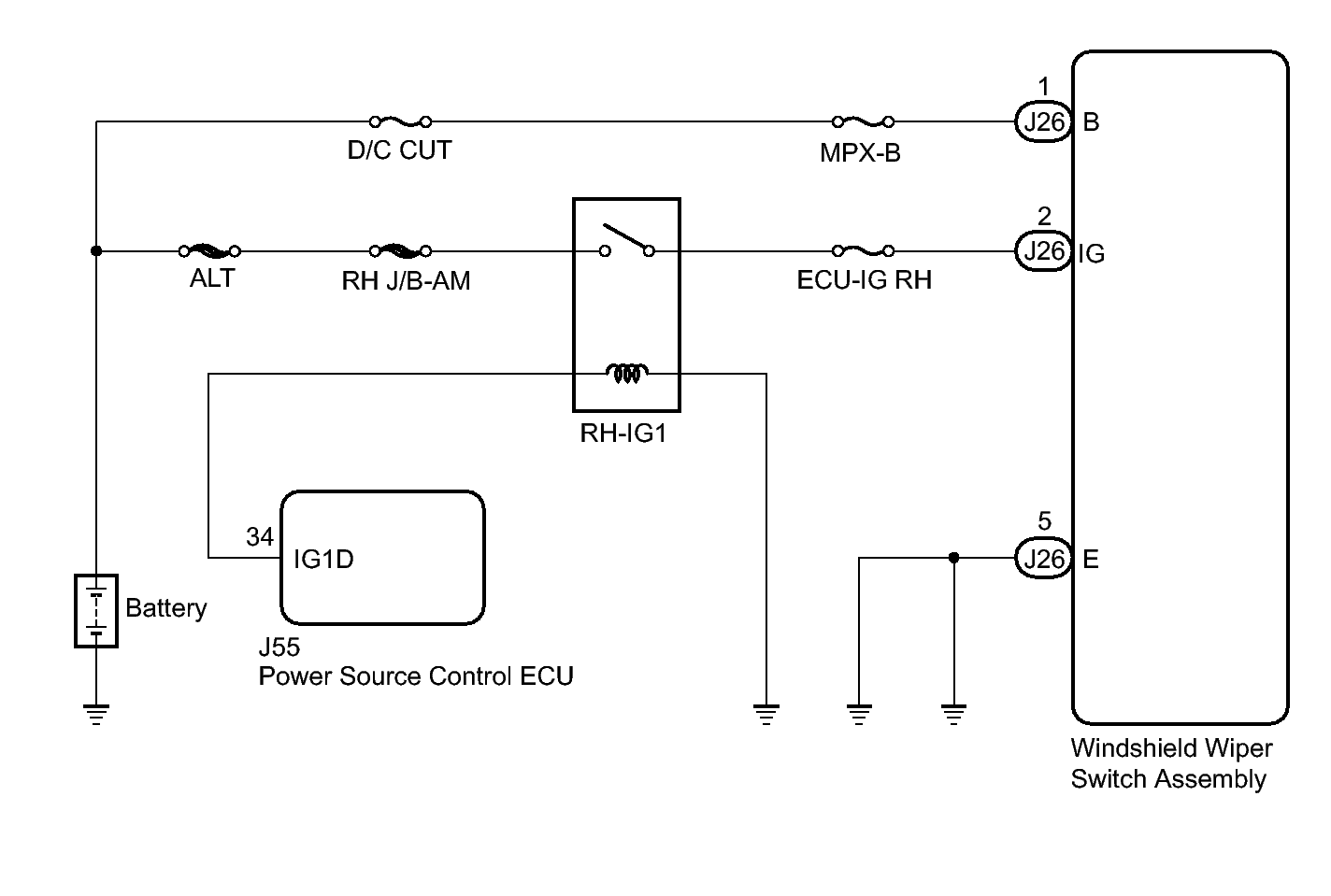

Fig 1: Wiper And Washer Switch Circuit Diagram

GTY395161

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
