Key Luggage Compartment Lock-in Prevention Function does not Operate: Procedure

1. Check that the entry luggage compartment open function operates.

   Result

   Result	Proceed to
   Entry luggage compartment door open function does not operate	A
   Entry luggage compartment door open function operates	B

A → See step   7

B: Go to next step

1. Bring the electrical key transmitter near the indoor electrical key oscillator (luggage compartment), and check that the entry luggage compartment lock-in prevention function operates.
   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the indoor electrical key oscillator (luggage compartment), communication is not possible.

   HINT:

   • When the electrical key transmitter is brought near the indoor electrical key oscillator (luggage compartment), the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   OK

   Entry functions operate normally.

NG → See step   3

OK → AFFECTED BY WAVE INTERFERENCE

1. Diagnostic mode inspection (indoor electrical key oscillator (luggage compartment))

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Utility / Smart Access / Communication Check (Key Diag mode) / Overhead + Luggage (inside).
   5. When the electrical key transmitter is held at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, check that the wireless door lock buzzer sounds.

      HINT:

      If the buzzer sounds, it can be determined that the luggage compartment interior transmitter is operating normally.

      OK

      Wireless door lock buzzer sounds.

NG → See step   4

OK → See step   8

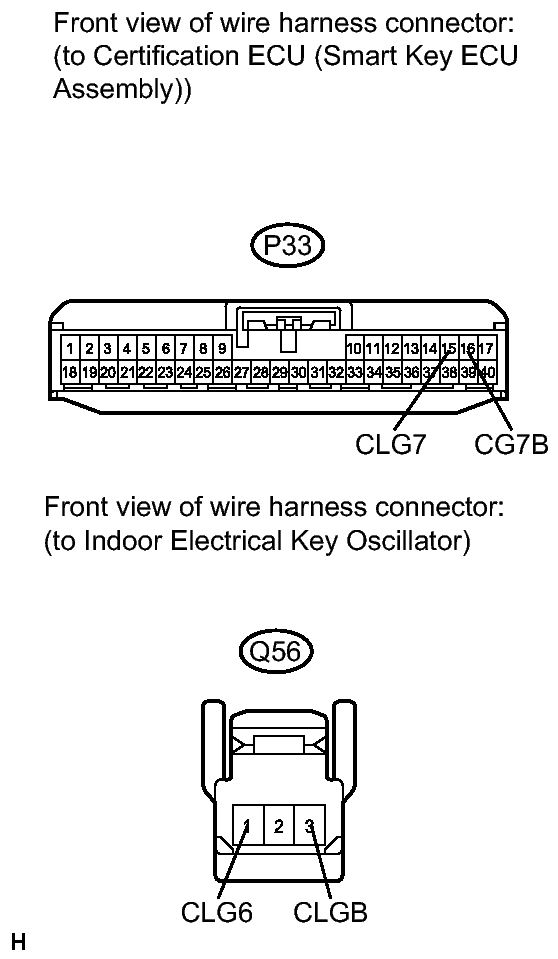

1. Disconnect the certification ECU (smart key ECU assembly) connector.
2. Disconnect the indoor electrical key oscillator (luggage compartment) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   P33-16 (CG7B) - Q56-3 (CLGB)	Always	Below 1 Ω
   P33-15 (CLG7) - Q56-1 (CLG6)	Always	Below 1 Ω
   P33-16 (CG7B) - Body ground	Always	10 kΩ or higher
   P33-15 (CLG7) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the indoor electrical key oscillator (luggage compartment). Refer to REMOVAL [08/2012 - ] .

NEXT: Go to next step

1. Check that the entry function operates normally. Refer to OPERATION CHECK [08/2012 - ] .

   OK

   Entry function operates normally.

NG → See step   8

OK → END (INDOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)
