Parts Location [08/2012 - ]: Illustration

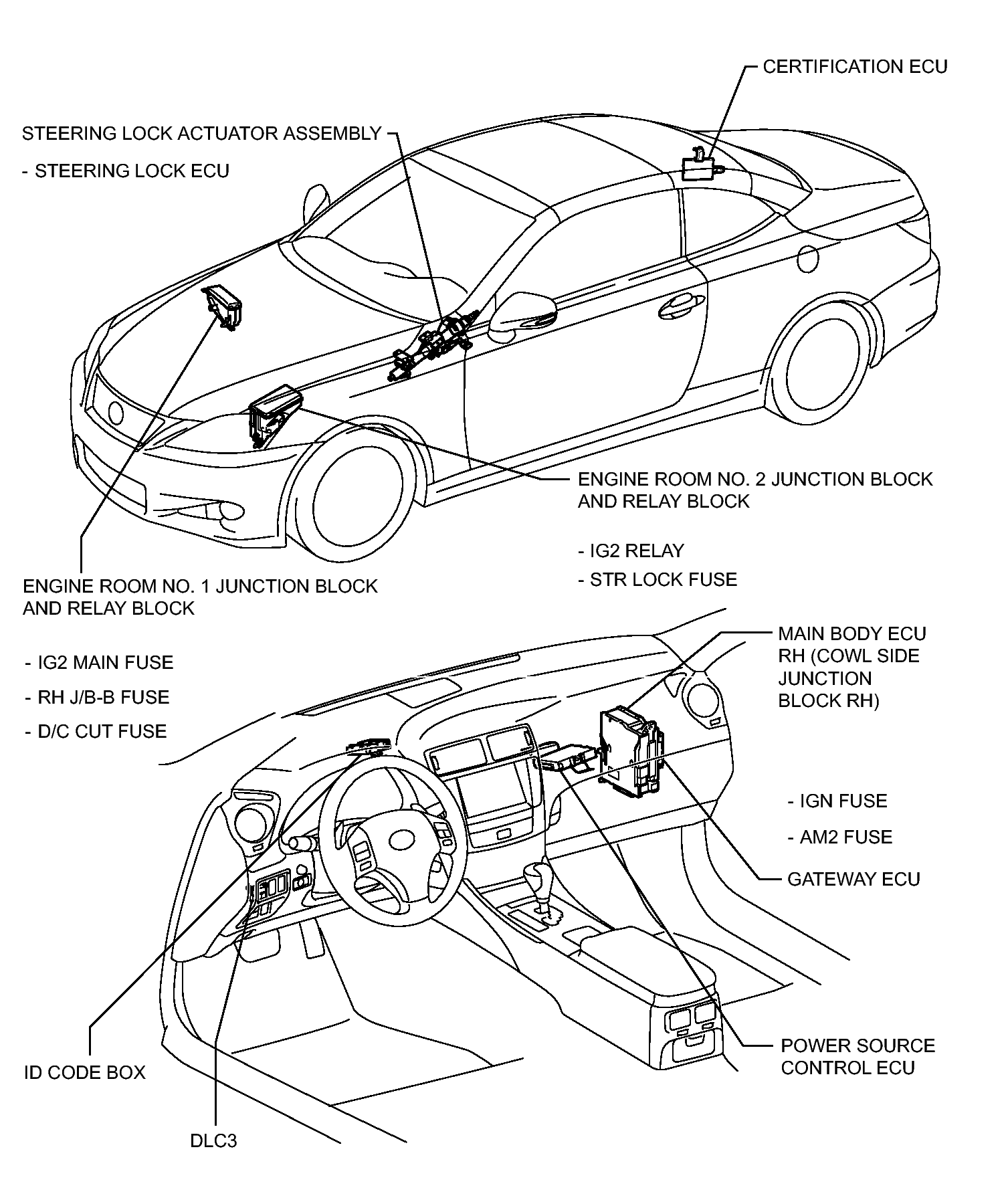

Fig 1: Steering Lock System Components Location

GTY351046

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
