DTC P0230: Fuel Pump Primary Circuit: Wiring Diagram

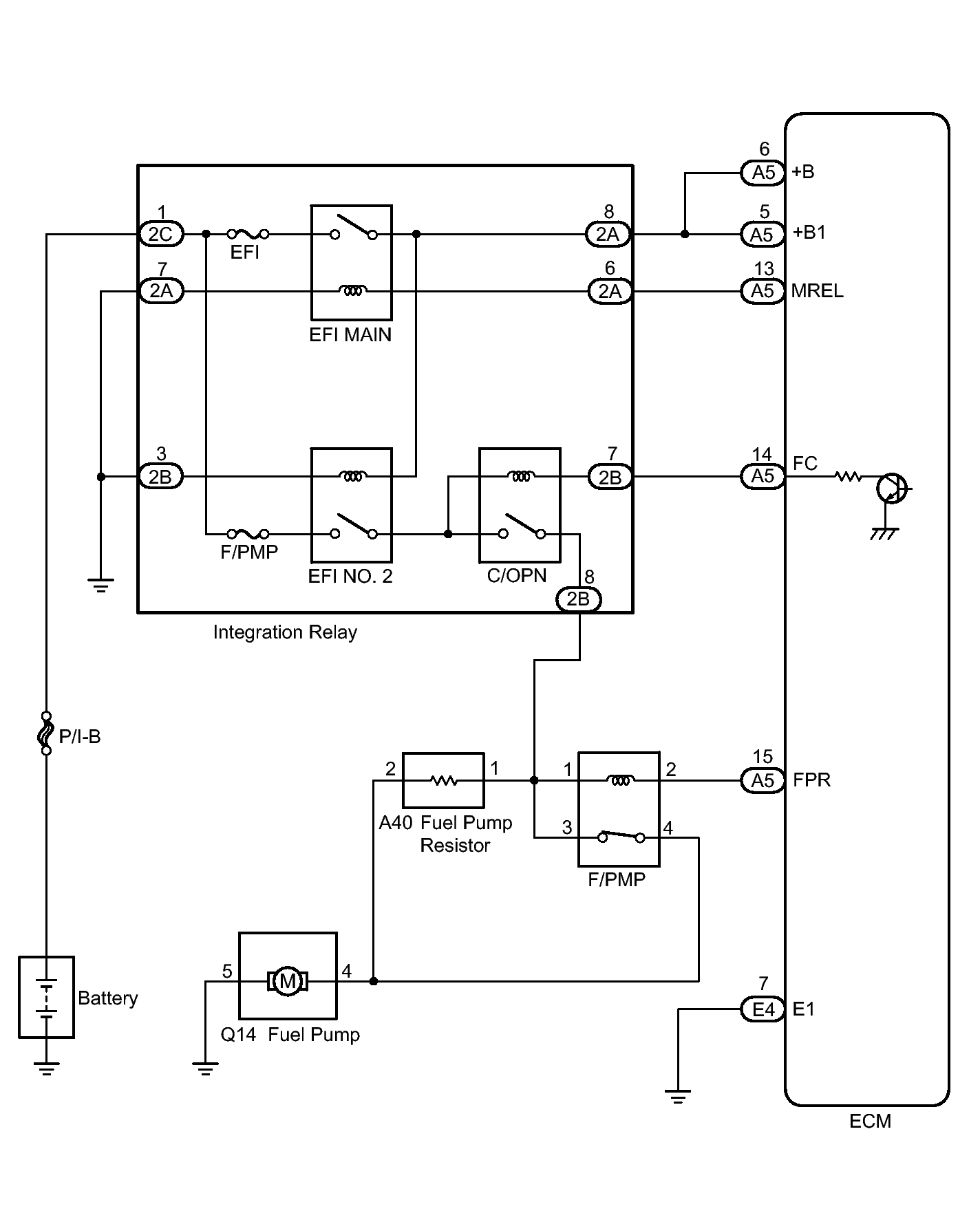

Fig 1: Fuel Pump - Wiring Diagram

GTY286700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
