Wiper and Washer Switch Circuit: Wiring Diagram

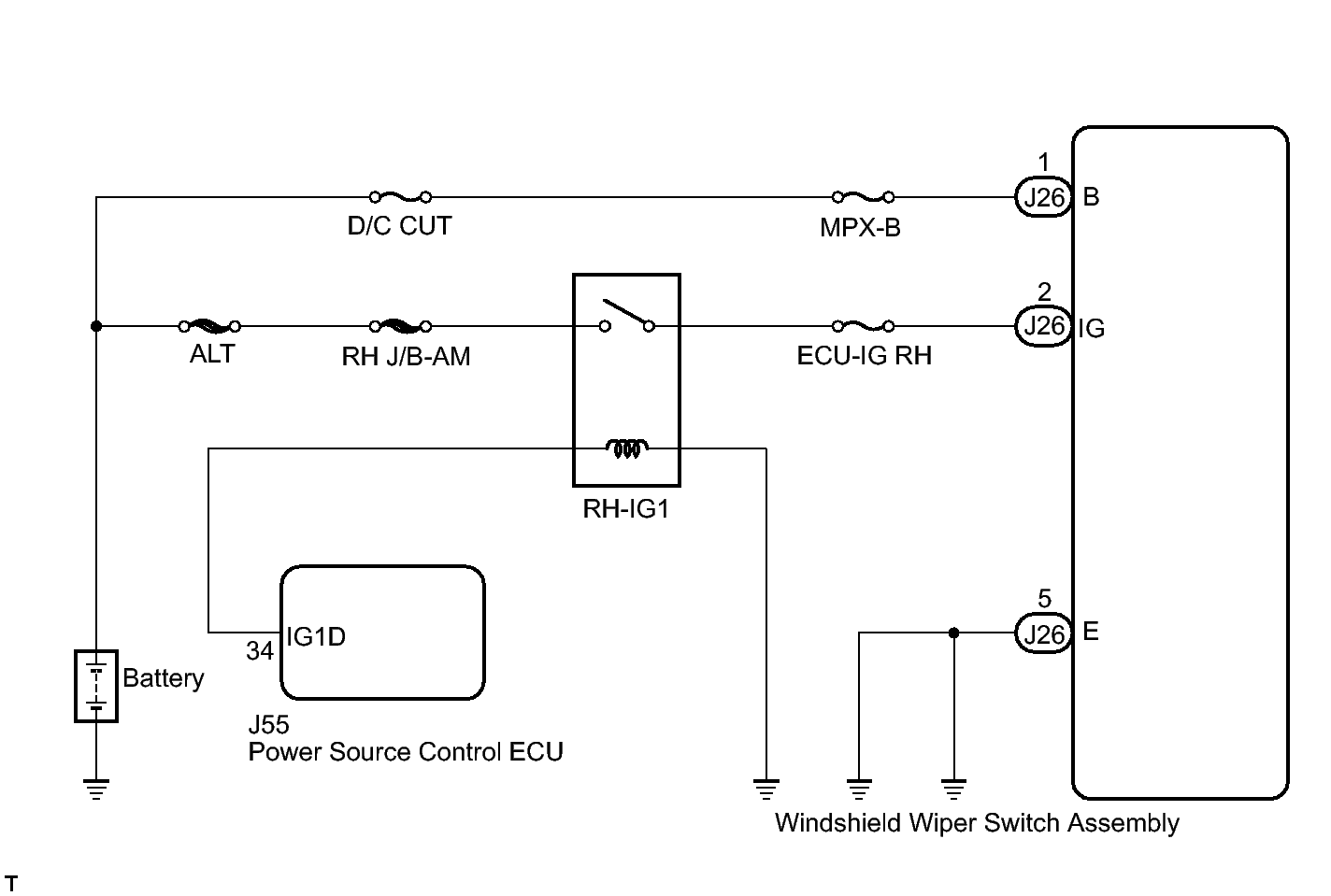

Fig 1: Wiper and Washer Switch Circuit Wiring Diagram

GTY151004

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
