Radio Broadcast cannot be Received or Poor Reception: Procedure

1. Check the radio automatic station search function.
   1. Check the radio automatic station search function by activating it.

      Result

      Result	Proceed to
      Automatic station search function does not stop	A
      Automatic station search function stops on a station	B

B → See step   10

A: Go to next step

1. Check if any optional components that may decrease reception capacity, such as sunshade film or a telephone antenna, are installed.

   Result

   Result	Proceed to
   Optional components are not installed	A
   Optional components are installed	B

   NOTE: Do not remove optional components without the permission of the customer.

B → REMOVE OPTIONAL COMPONENTS AND CHECK AGAIN (SEE NOTICE ABOVE)

A: Go to next step

1. Preparation for check
   1. Remove the roof antenna pole sub-assembly from the with holder antenna assembly.
2. Check for noise
   1. Turn the engine switch on (ACC) with the multimedia module receiver assembly connector connected.
   2. Turn the radio on and tune into AM mode.
   3. Place a screwdriver, thin wire or other metal object on the with holder antenna assembly threaded installation portion for the roof antenna pole sub-assembly and check that noise can be heard from the speakers.

      Result

      Result	Proceed to
      Noise does not occur	A
      Noise occurs	B

B → See step   10

A: Go to next step

1. Preparation for check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

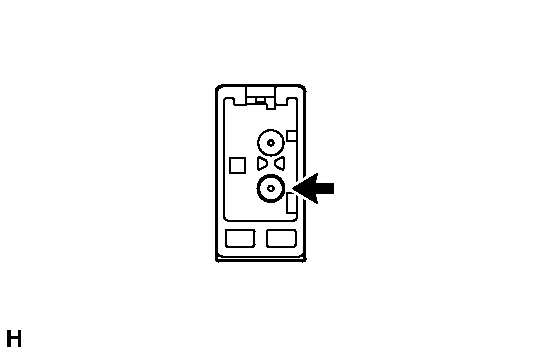

   1. Remove the antenna connector from the multimedia module receiver assembly.
2. Check for noise
   1. Turn the engine switch on (ACC) with the multimedia module receiver assembly connector connected.
   2. Turn the radio on and tune into AM mode.
   3. Place a screwdriver, thin wire or other metal object on the multimedia module receiver assembly antenna jack and check that noise can be heard from the speakers.

      OK

      Noise can be heard from the speakers.

NG → See step   10

OK: Go to next step

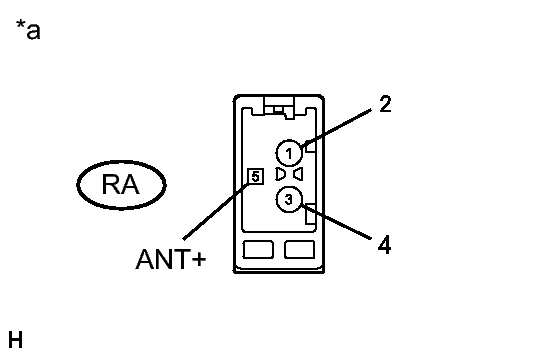

1. Disconnect the RA multimedia module receiver assembly connector.
2. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   RA-5 (ANT+) - Body ground	Engine switch on (ACC) Radio switch on and AM or FM selected	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Multimedia Module Receiver Assembly)

NG → See step   10

OK: Go to next step

1. Replace the No. 4 antenna cord sub-assembly and check if radio broadcasts can be received normally. Refer to REMOVAL [08/2012 - ] .

   OK

   Radio broadcasts can be received normally.

NG → See step   7

OK → NORMAL OPERATION

1. Replace the No. 3 antenna cord sub-assembly and check if radio broadcasts can be received normally. Refer to REMOVAL [08/2012 - ] .

   OK

   Radio broadcasts can be received normally.

NG → See step   8

OK → NORMAL OPERATION

1. Replace the roof antenna pole sub-assembly and check if radio broadcasts can be received normally. Refer to REMOVAL [08/2012 - ] .

   OK

   Radio broadcasts can be received normally.

NG → See step   9

OK → NORMAL OPERATION

1. Replace the with holder antenna assembly and check if radio broadcasts can be received normally. Refer to REMOVAL [08/2012 - ] .

   OK

   Radio broadcasts can be received normally.

NG → See step   10

OK → NORMAL OPERATION
