Distance Control ECU Power Source Circuit: Wiring Diagram

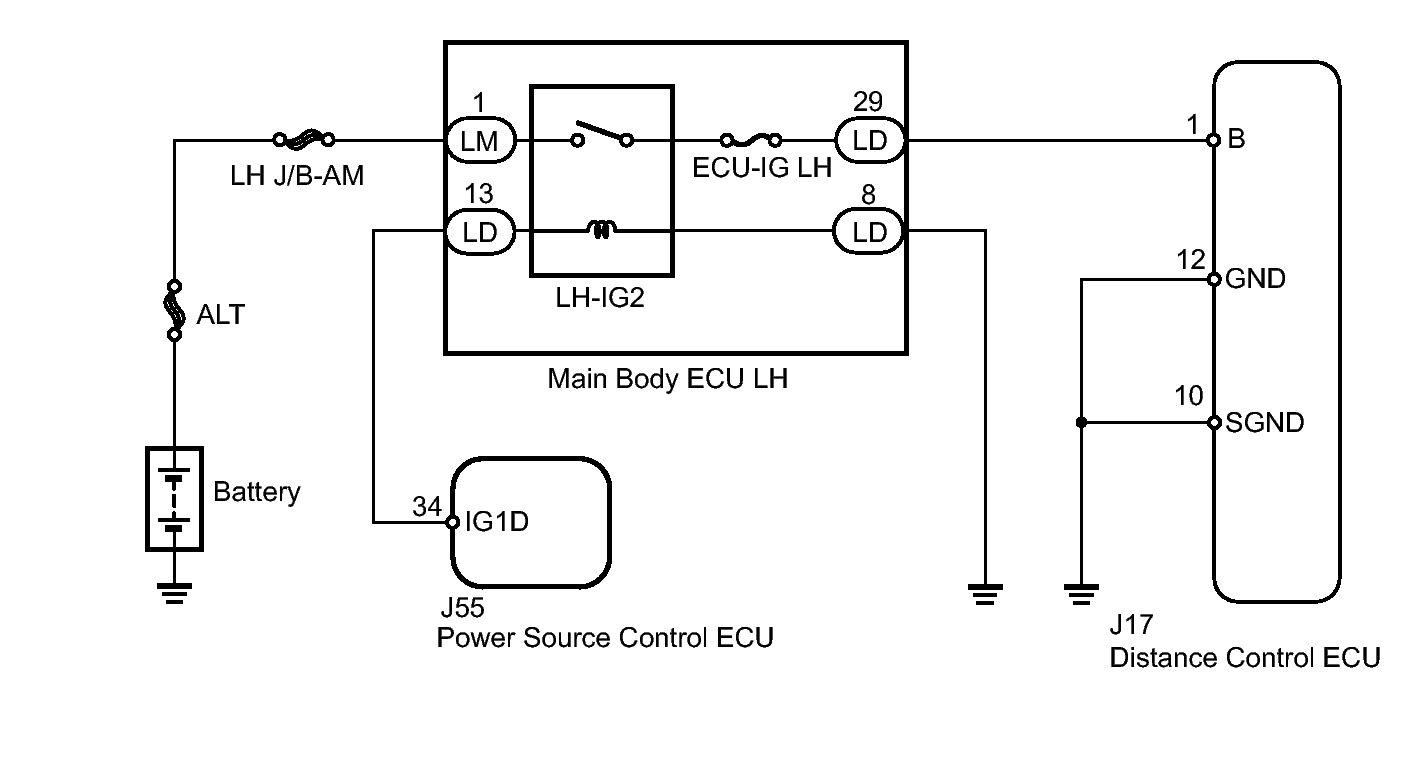

Fig 1: Distance Control ECU Power Source Circuit Wiring Diagram

GTY394910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
