Terminals Of Ecu [08/2012 - ]

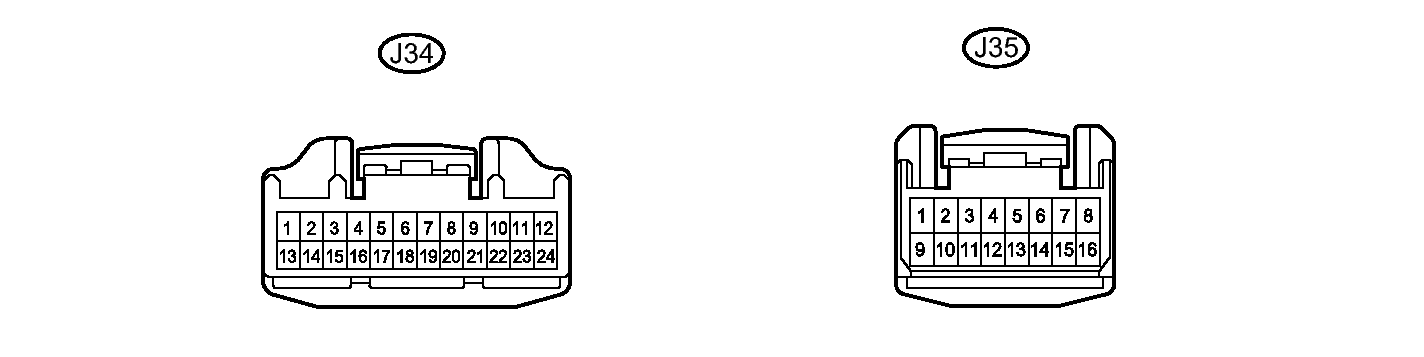

- COMBINATION METER ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Voltage
Terminal No. (Symbols) Terminal Description Condition Specified Condition J34-12 (IG+) - Body ground Power supply Engine switch OFF → ON (IG) Below 1 V → 10 to 14 V Resistance
Terminal No. (Symbols) Terminal Description Condition Specified Condition J35-4 (P/SB) - Body ground Passenger seat belt signal The passenger seat is occupied, seat belt is fastened → unfastened Below 1 Ω → 10 kΩ or higher J34-1 (E2) - Body ground Ground Always Below 1 Ω - CLOCK ASSEMBLY (w/ MULTI-DISPLAY)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Voltage
Terminal No. (Symbols) Terminal Description Condition Specified Condition J92-15 (IG+) - Body ground Power supply Engine switch OFF → ON (IG) Below 1 V → 10 to 14 V Resistance
Terminal No. (Symbols) Terminal Description Condition Specified Condition J92-12 (PBEW) - Body ground Passenger seat belt signal The passenger seat is occupied, seat belt is fastened → unfastened Below 1 Ω → 10 kΩ or higher - INTEGRATION CONTROL & PANEL (w/o MULTI-DISPLAY)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Voltage
Terminal No. (Symbols) Terminal Description Condition Specified Condition J54-4 (IG+) - Body ground Power supply Engine switch OFF → ON (IG) Below 1 V → 10 to 14 V Resistance
Terminal No. (Symbols) Terminal Description Condition Specified Condition J54-13 (PBEW) - Body ground Passenger seat belt signal The passenger seat is occupied, seat belt is fastened → unfastened Below 1 Ω → 10 kΩ or higher
