Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter: Wiring Diagram

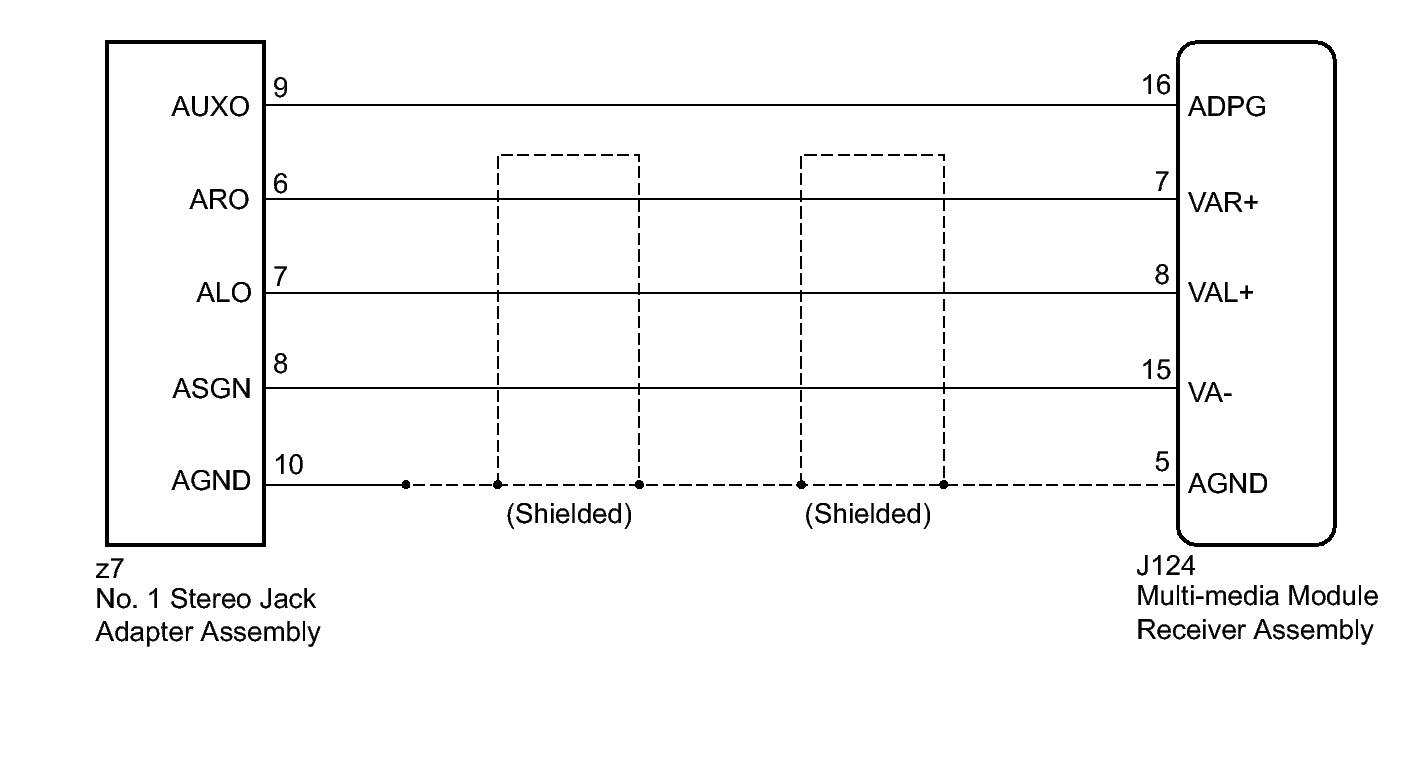

Fig 1: Sound Signal Circuit Between Radio Receiver And Stereo Jack Adapter Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
