Multi-media Module Receiver Assembly Communication Stop Mode: Wiring Diagram

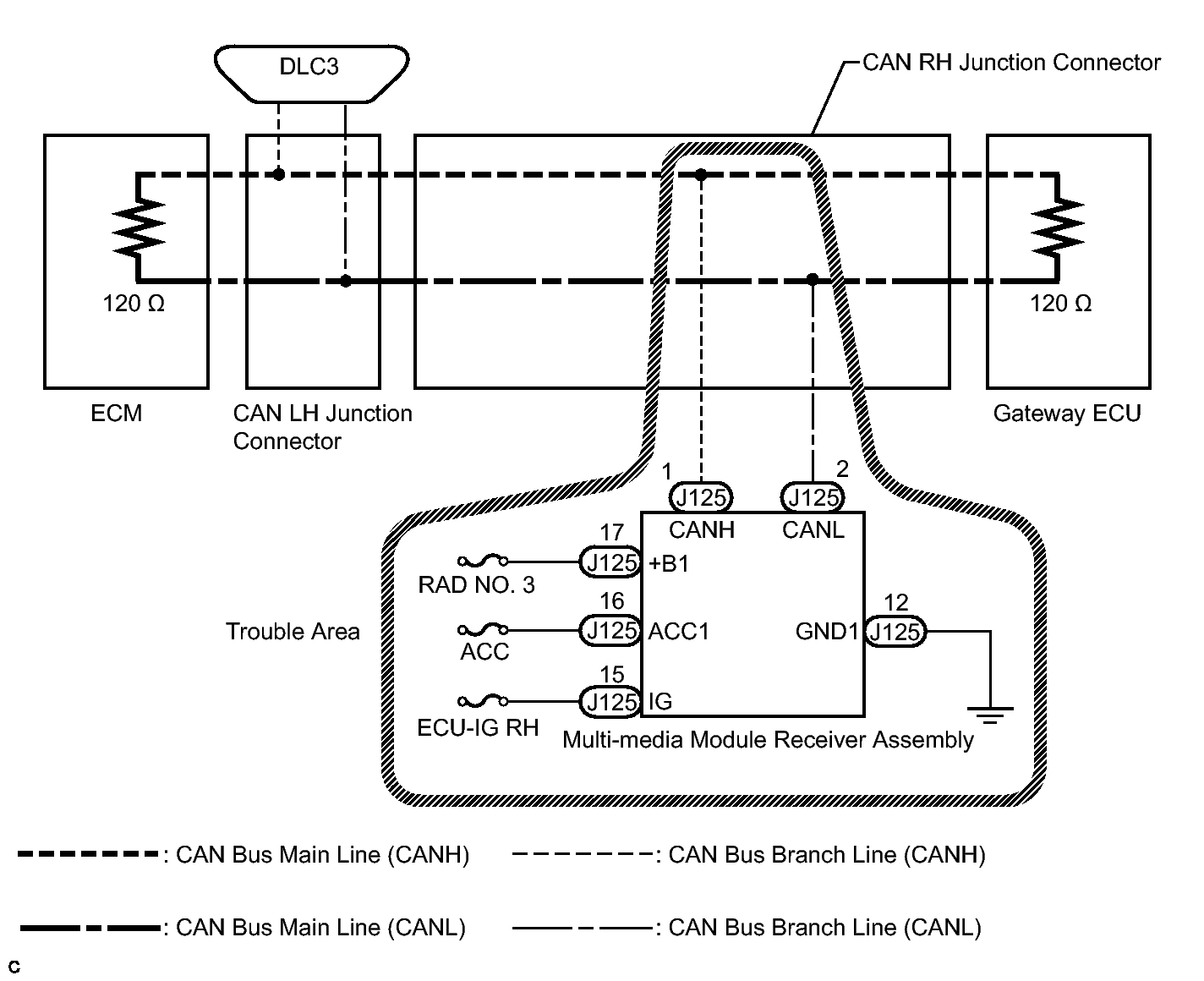

Fig 1: Multi-Media Module Receiver Assembly Communication Wiring Diagram

GTY399543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
