Components [08/2012 - ]: Illustration

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
GTY287141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

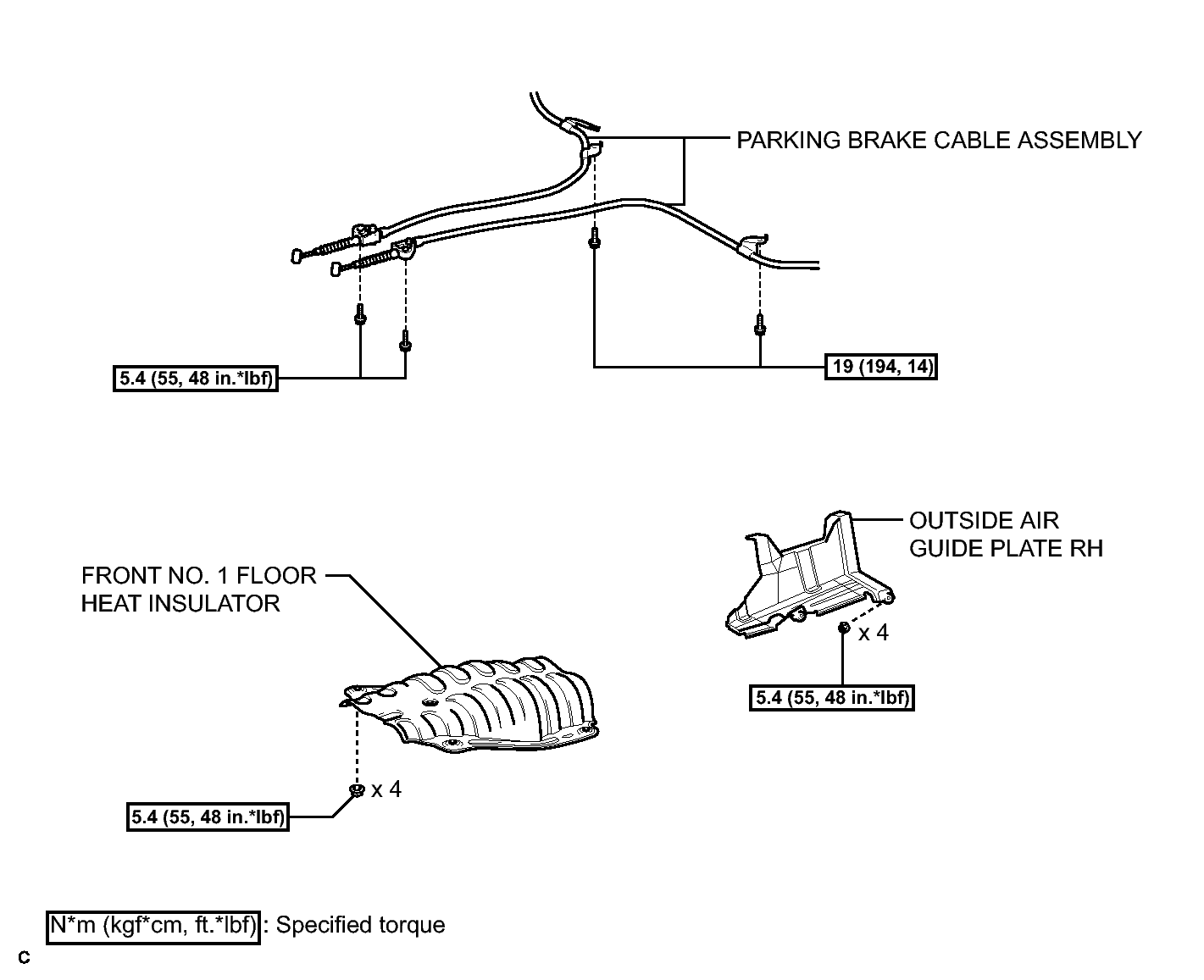

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 3)
GTY404245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

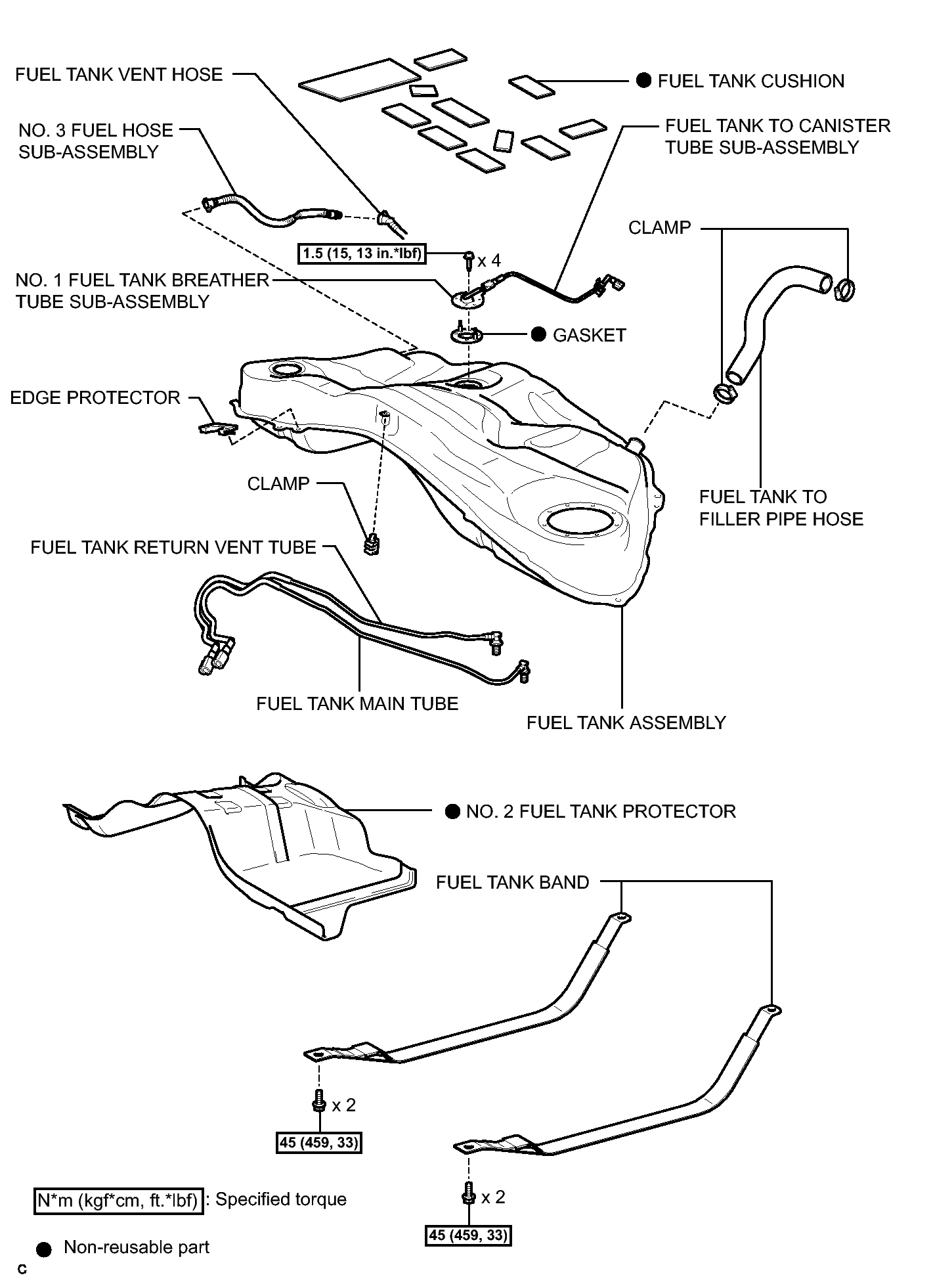

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
GTY411590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
