Components [08/2012 - ]: Illustration

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (1 Of 3)
GTY279423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

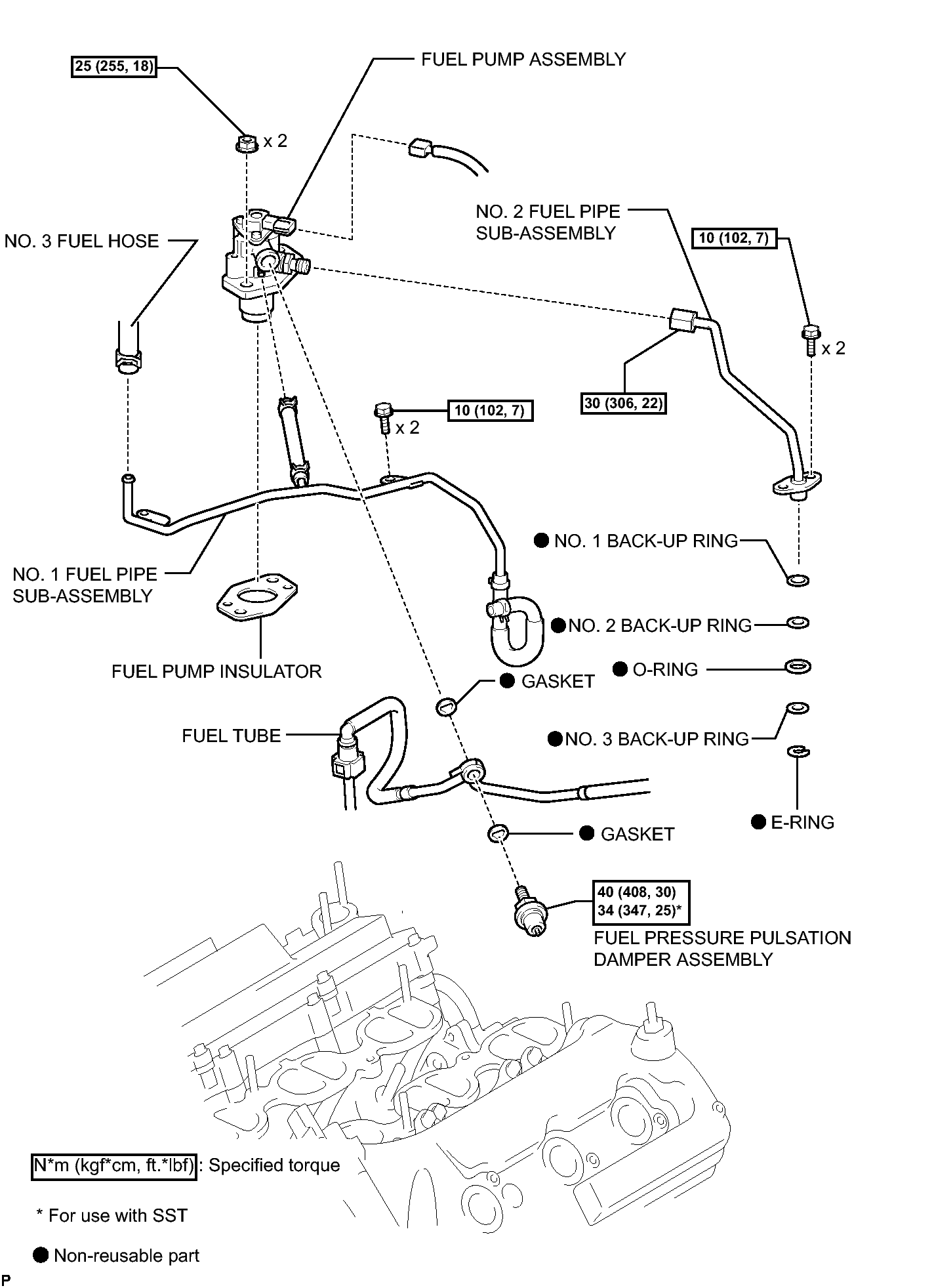

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (2 Of 3)
GTY409906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (3 Of 3)
GTY285812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
