Power Seat (Front RH Seat w/o Seat Position Memory): Notes

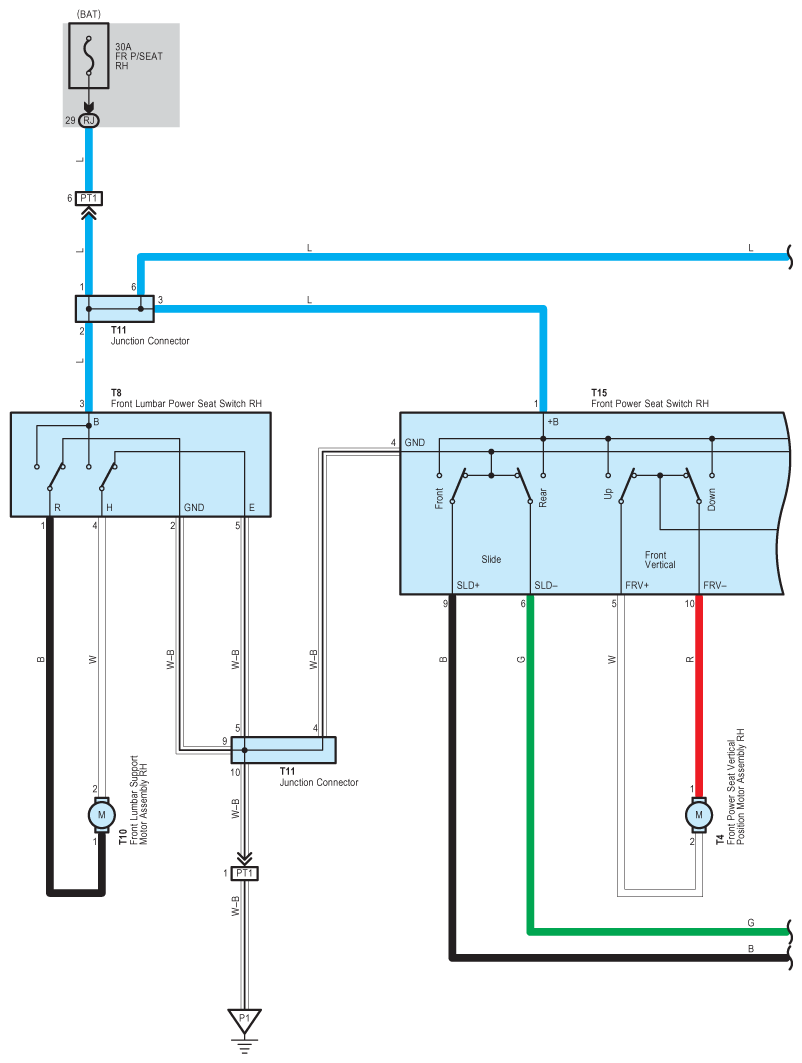

Fig 1: Power Seat (Front RH Seat W/O Seat Position Memory) Wiring Diagram (1 Of 2)
G09121401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

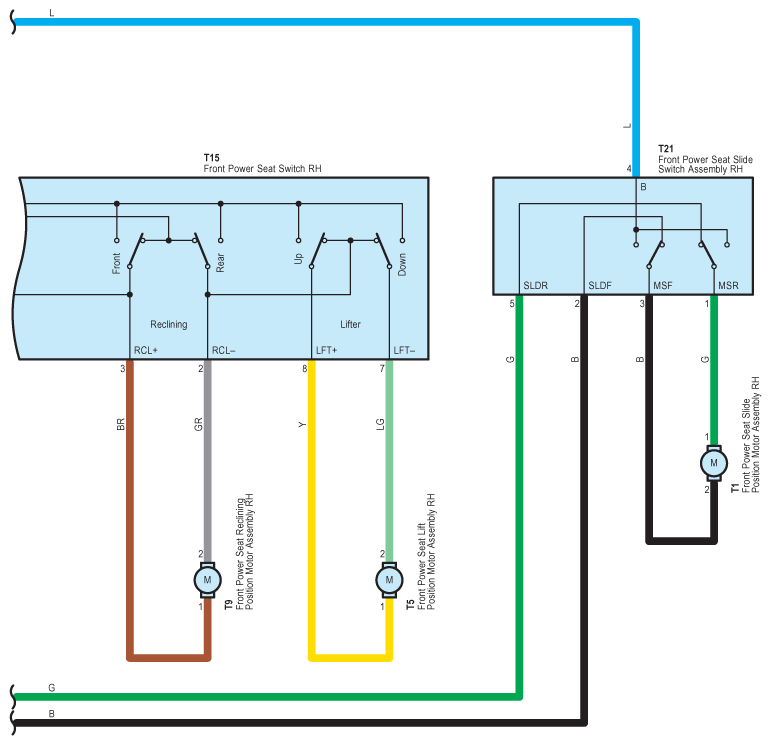

Fig 2: Power Seat (Front RH Seat W/O Seat Position Memory) Wiring Diagram (2 Of 2)
G09121402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
