Pattern Select Switch Snow Mode Circuit: Procedure

1. Start the engine.
2. Turn the ECT SNOW switch "OFF" (Normal drive mode).
3. Confirm vehicle response by driving from a parked position to fully depressing the accelerator pedal.
4. Turn the ECT SNOW switch "ON" and perform the same check as above.

   Confirm that there is a difference between ECT SNOW switch "ON" and "OFF".

   HINT:

   • Driving test should be done on a paved road (a nonskid road).
   • Make sure not to use the TRAC system when testing a vehicle equipped with one.

   OK

   There is a difference in acceleration between "ON" and "OFF".

NG → See step   2

OK → See step   5

1. Disconnect the connector of pattern select switch.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Specified Condition
   J36-3 (E) - Body ground	Below 1 Ω

   TEXT IN ILLUSTRATION

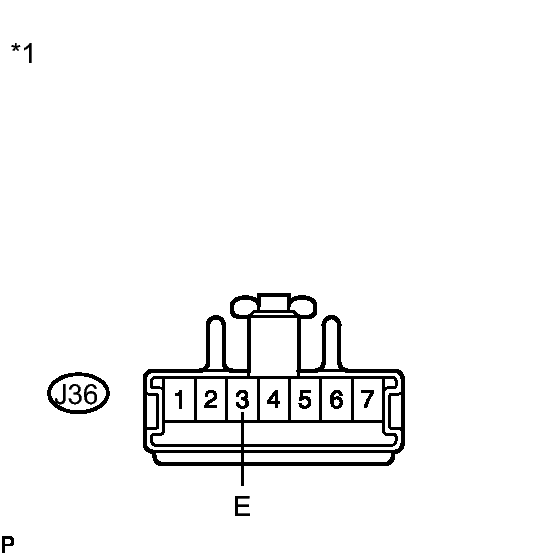

   *1	Front view of wire harness connector (to Pattern Select Switch)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   1 - 3	Press continuously Pattern select switch (SNOW)	Below 1 Ω
   ↑	Release Pattern select switch (SNOW)	10 kΩ or higher

   TEXT IN ILLUSTRATION

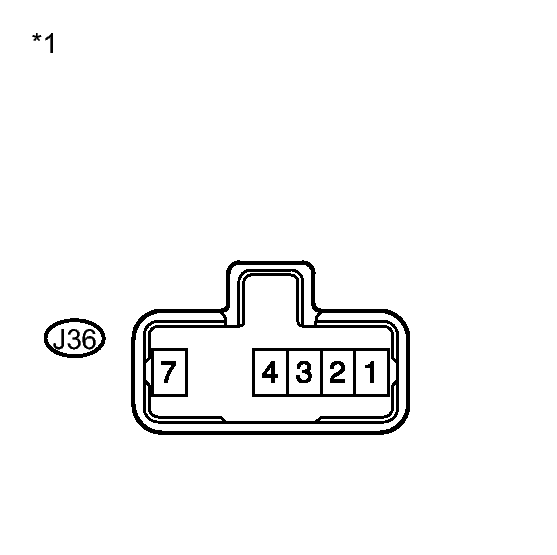

   *1	Component without harness connected (Pattern Select Switch)

NG → See step   6

OK: Go to next step

1. Connect the connector of pattern select switch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the cowl side junction block RH (main body ECU RH) connector.
3. Measure the resistance between terminal SNOW of the cowl side junction block RH (main body ECU RH) and body ground.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   J75-17 (SNOW) - Body ground	Press continuously Pattern select switch (SNOW)	Below 1 Ω
   ↑	Release Pattern select switch (SNOW)	10 kΩ or higher

   TEXT IN ILLUSTRATION

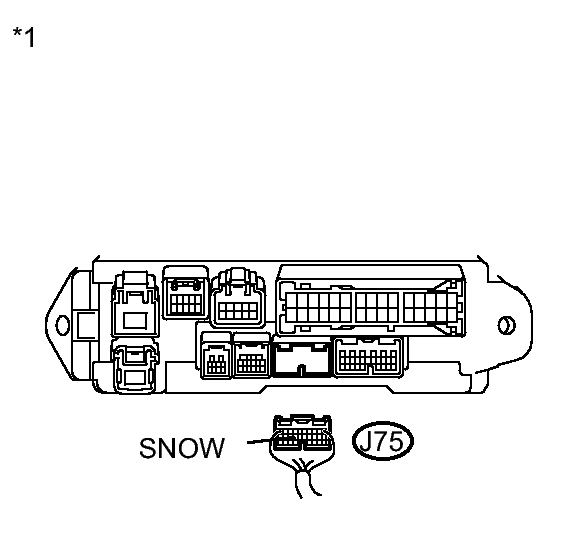

   *1	Rear view of wire harness connector (to Main Body ECU RH)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
