Pattern Select Switch Power Mode Circuit: Wiring Diagram

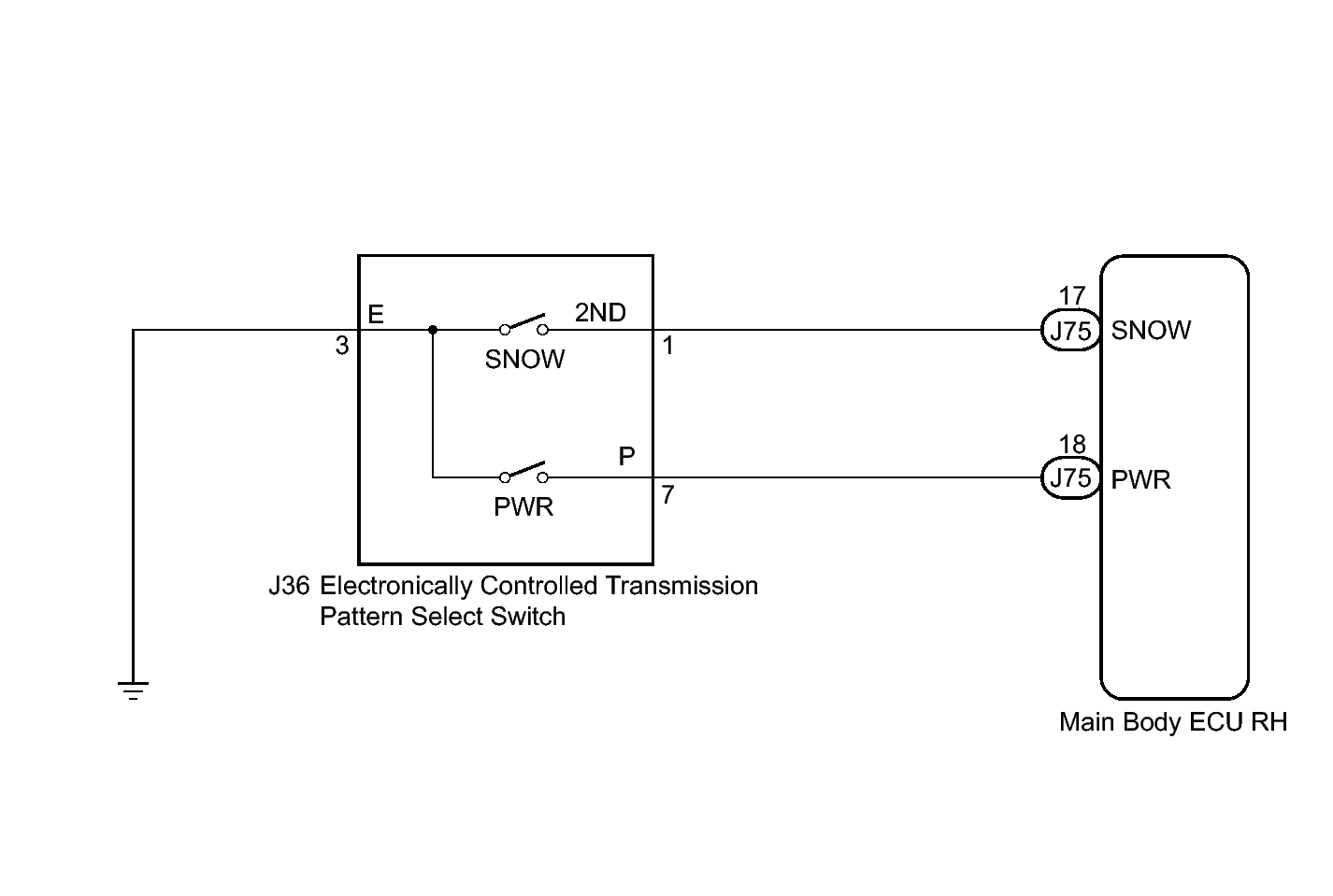

Fig 1: Pattern Select Switch Power Mode Circuit - Wiring Diagram

GTY257295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
