DTC B2782: Power Source Control ECU Malfunction: Wiring Diagram

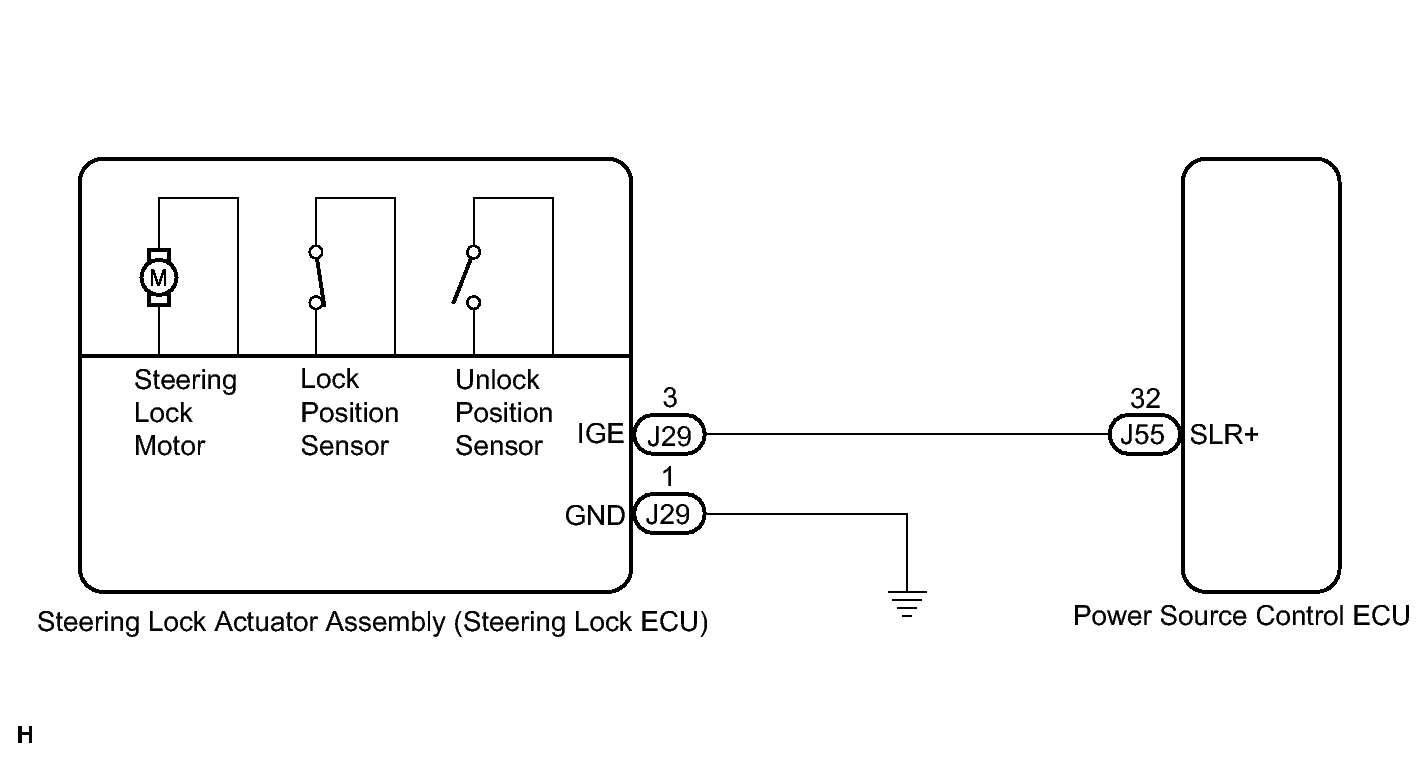

Fig 1: Steering Lock Actuator Assembly Wiring Diagram

GTY133814

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
