Steering Lock Motor Drive Power Circuit: Procedure

1. Check the problem symptom of the steering lock system.
   RESULT



   Condition	Proceed to
   Steering lock cannot be released.	A
   Steering cannot be locked.	B

B → See step   6

A: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Check the steering lock command reception record. Enter the following menus: Body Electrical / Smart Access / Data List.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition
   Lock/Unlock Receive	Steering lock command reception record/YES or NO	YES: Steering lock/unlock signal received NO: Steering lock/unlock signal not received

5. Check if steering unlock command reception is confirmed.

   OK

   "YES" is displayed on the Techstream.

NG → See step   9

OK: Go to next step

1. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   STANDARD VOLTAGE



   Tester Connection	Condition	Specified Condition
   J29-3 (IGE) - J29-1 (GND)	Turn the engine switch off Turn the engine switch on (ACC or IG)	Motor activated: Below 1 V Motor not activated: 10 to 12 V

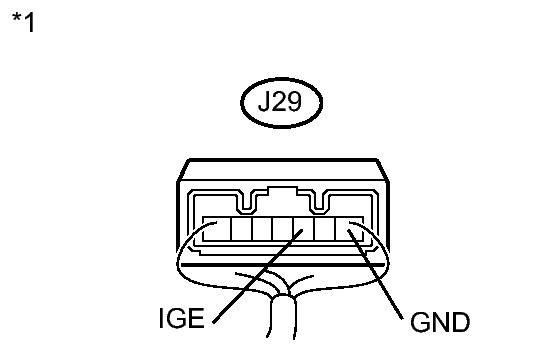

   TEXT IN ILLUSTRATION



   *1	Component with harness connected (Steering Lock Actuator Assembly)

NG → See step   4

OK → See step   8

1. Disconnect the J29 connector from the steering lock actuator assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

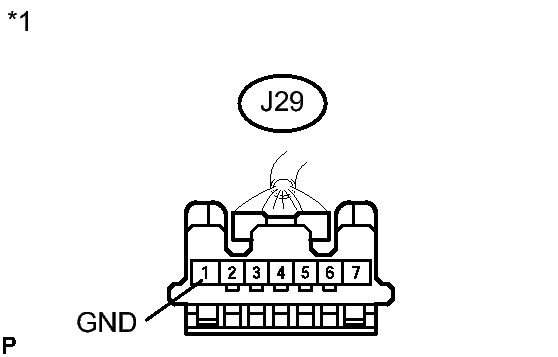

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Steering Lock Actuator Assembly)

2. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   J29-1 (GND) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the J55 connector from the power source control ECU.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Steering Lock Actuator Assembly)
   *2	Front view of wire harness connector (to Power Source Control ECU)

2. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   J29-3 (IGE) - J55-32 (SLR+)	Always	Below 1 Ω
   J29-3 (IGE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE POWER SOURCE CONTROL ECU

1. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   STANDARD VOLTAGE



   Tester Connection	Condition	Specified Condition
   J29-3 (IGE) - J29-1 (GND)	Specified condition is checked after performing the following: Move the shift lever to P Turn the engine switch off Open the driver's door	Motor activated: Below 1 V Motor not activated: 10 to 12 V

   TEXT IN ILLUSTRATION



   *1	Component with harness connected (Steering Lock Actuator Assembly)

NG → See step   7

OK → See step   10

1. Disconnect the J29 connector from the steering lock actuator assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Steering Lock Actuator Assembly)
   *2	Front view of wire harness connector (to Power Source Control ECU)

2. Disconnect the J55 connector from the power source control ECU.
3. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   J29-3 (IGE) - J55-32 (SLR+)	Always	Below 1 Ω
   J29-3 (IGE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE POWER SOURCE CONTROL ECU
