Engine Switch Indicator Circuit: Wiring Diagram

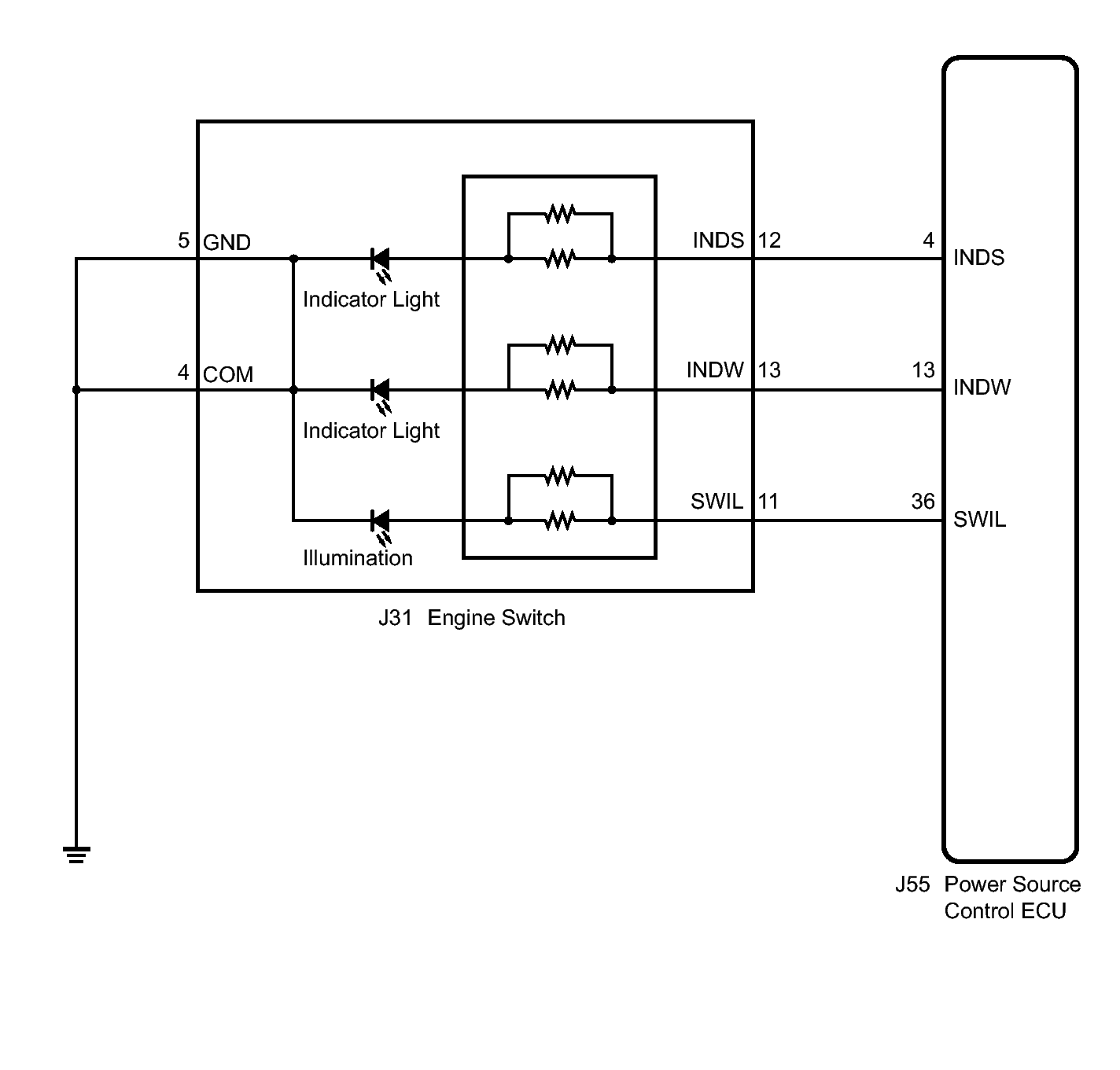

Fig 1: Engine Switch And Power Source Control ECU Wiring Diagram

GTY137707

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
