Engine Room Relay Block No. 1 Assembly and Engine Room Junction Block No. 1 Assembly Inner Circuit

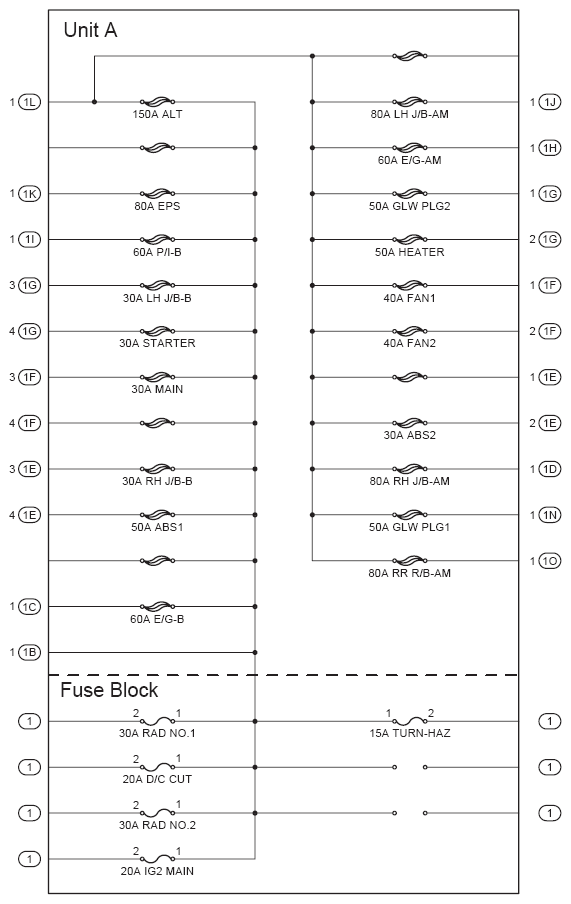

Fig 1: Engine Room R/B Assembly And Engine Room J/B No. 1 Assembly Circuit Diagram
G09121043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
