Power Windows cannot be Operated with All Window Switch: Wiring Diagram

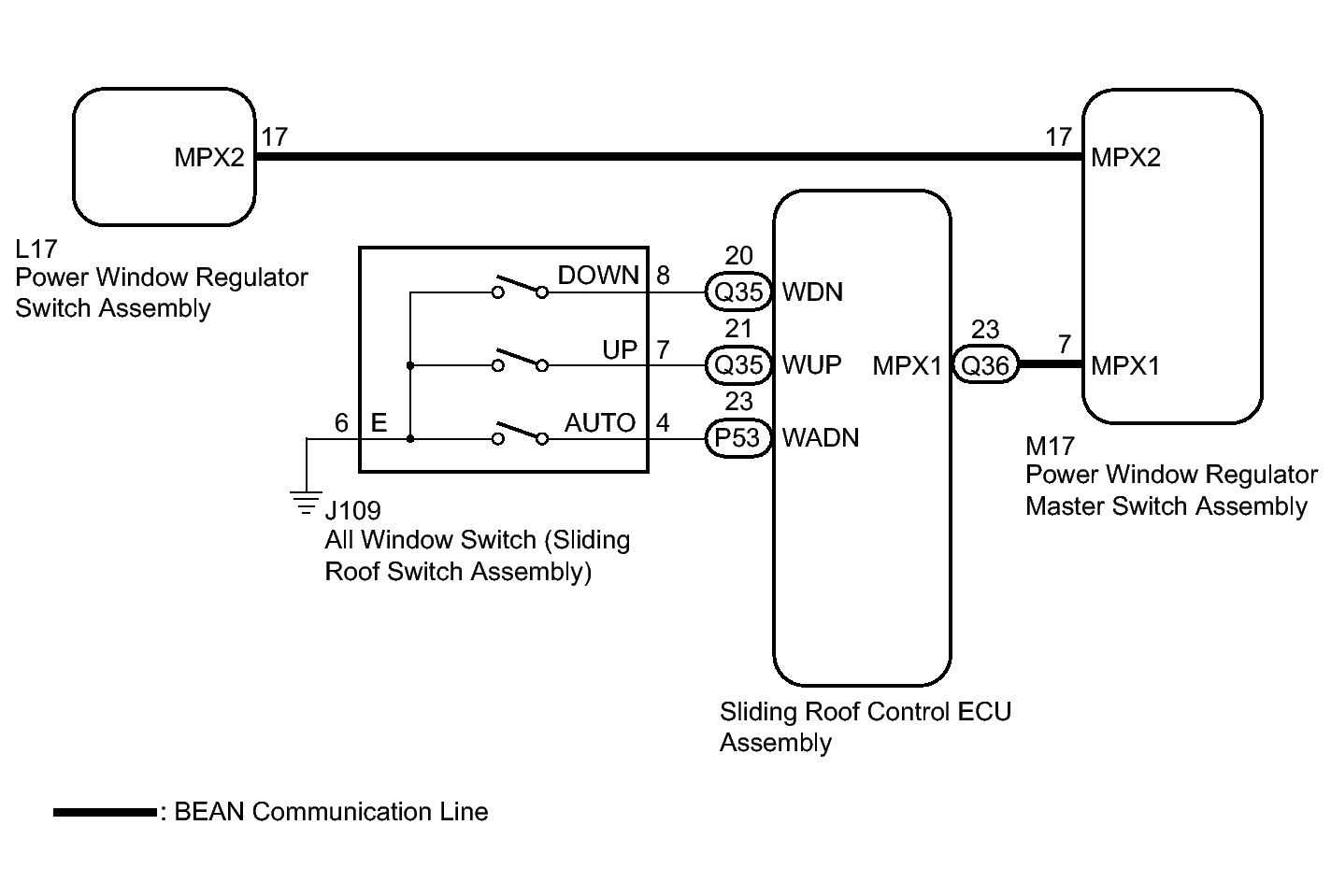

Fig 1: Identifying All Window Switch Wiring Diagram

GTY349588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
