Wiper and Washer Switch Circuit: Procedure

  1. READ VALUE USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Switch / Data List.
    5. Read the display on the Techstream.
      COMBINATION SWITCH (WINDSHIELD WIPER SWITCH ASSEMBLY)

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Front Washer Switch Front washer switch / ON or OFF ON: Front washer switch ON
      OFF: Front washer switch OFF      		 -
      Front Wiper Mist Switch Front wiper MIST switch / ON or OFF ON: Front wiper switch in MIST
      OFF: Wiper switch not in MIST      		 -
      Front Wiper Auto Switch*1 Front wiper AUTO switch / ON or OFF ON: Front wiper switch in AUTO position
      OFF: Wiper switch not in AUTO position      		 -
      Front Wiper Hi Switch Front wiper HI switch / ON or OFF ON: Front wiper switch in HI
      OFF: Wiper switch not in HI      		 -
      Front Wiper Lo Switch Front wiper LO switch / ON or OFF ON: Front wiper switch in LO
      OFF: Wiper switch not in LO      		 -
      Front Wiper Intermittent Switch*2 Front wiper INT switch / ON or OFF ON: Front wiper switch in INT
      OFF: Wiper switch not in INT      		 -
      Ignition Switch Signal Engine switch signal / ON or OFF ON: Engine switch on (IG)
      OFF: Engine switch off      		 -
      Wiper Volume Position*2 Front wiper volume (sensitivity) / 0 to 90 degrees 0 degrees: FR wiper volume "+" position
      27 degrees: Switch is turned one notch towards the "-" side from the FR wiper volume "+" position
      63 degrees: Switch is turned one notch towards the "+" side from the FR wiper volume "-" position
      90 degrees: FR wiper volume "-" position      		 If the value is NG, replace the windshield wiper switch assembly. Refer to REMOVAL [08/2012 - ] .

      *1: w/ Auto Wiper System

      *1: w/o Auto Wiper System

    NG → See step   2

    OK → See step   3

  2. CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER SWITCH ASSEMBLY - BATTERY AND BODY GROUND)
    1. Disconnect the J26 windshield wiper switch assembly connector.

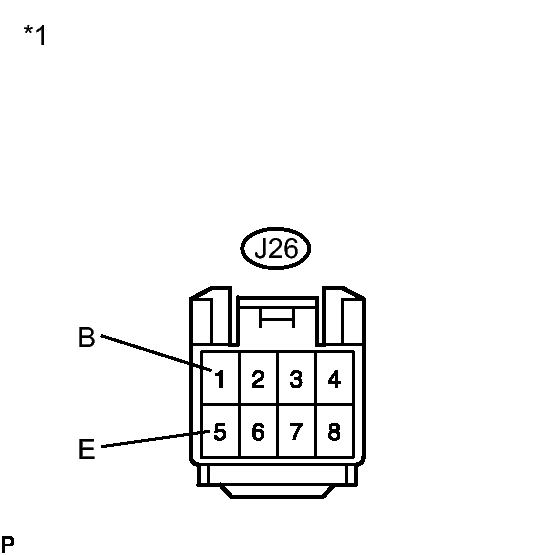

      GTY286997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      J26-1 (B) - J26-5 (E) Always 11 to 14 V
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Windshield Wiper Switch Assembly)

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   4

  3. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [08/2012 - ]
  4. REPLACE WINDSHIELD WIPER SWITCH ASSEMBLY. Refer to  REMOVAL [08/2012 - ]
