Headlight Cleaner Switch Circuit: Wiring Diagram

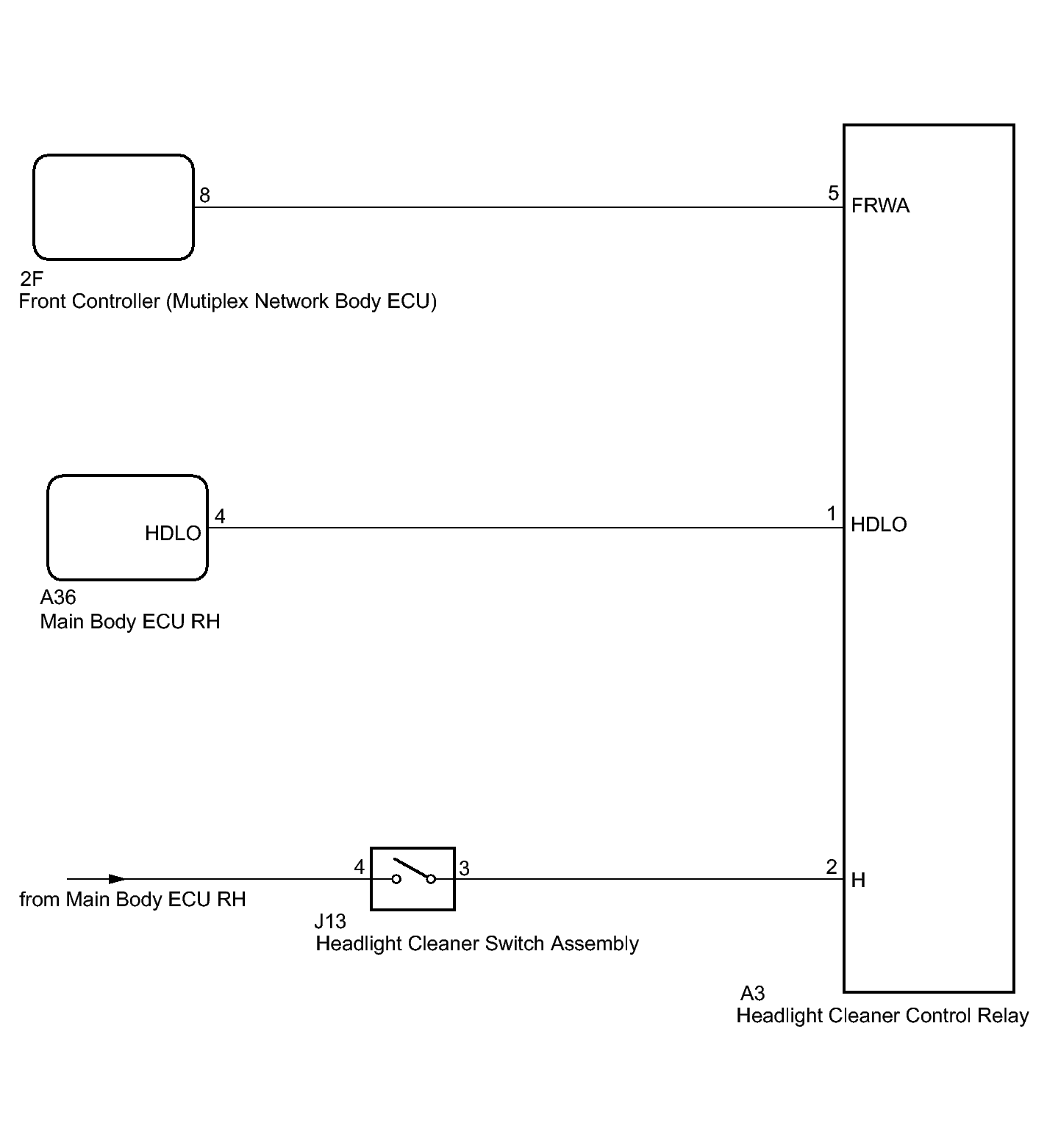

Fig 1: Identifying Headlight Cleaner Switch Circuit - Wiring Diagram

GTY257036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
