Headlight Cleaner Switch Circuit: Procedure

  1. INSPECT HEADLIGHT CLEANER CONTROL RELAY (H SIGNAL)
    1. Disconnect the A3 headlight cleaner control relay connector.

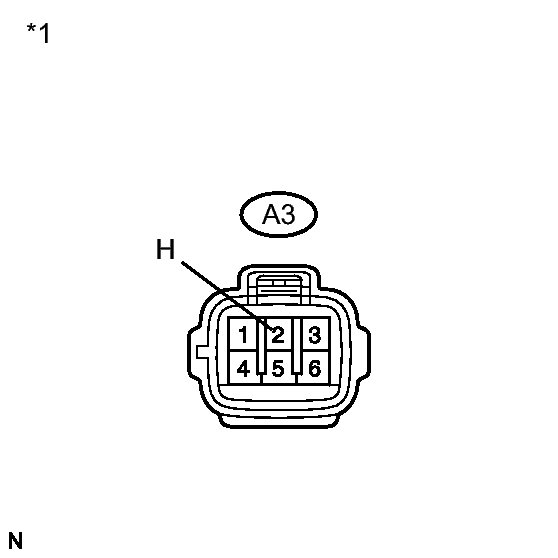

      GTY265503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A3-2 (H) - Body ground Light control switch in HEAD and headlight cleaner switch ON 11 to 14 V
      A3-2 (H) - Body ground Headlight cleaner switch OFF Below 1 V
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Headlight Cleaner Control Relay)

    NG → See step   4

    OK: Go to next step

  2. INSPECT HEADLIGHT CLEANER CONTROL RELAY (FRWA SIGNAL)
    1. Measure the voltage according to the value(s) in the table below.

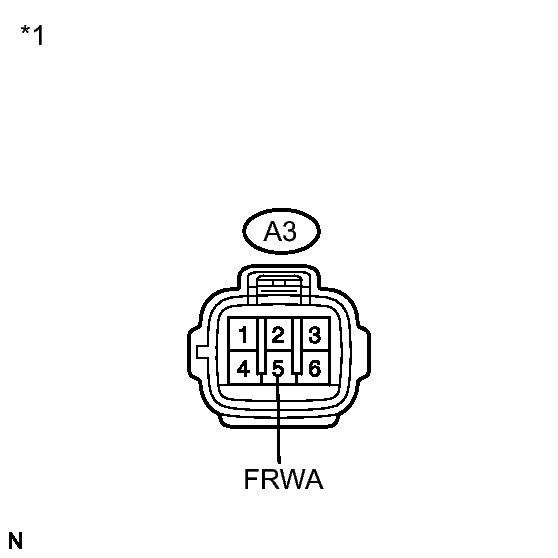

      GTY284159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A3-5 (FRWA) - Body ground Engine switch on (IG) and front washer switch OFF 11 to 14 V
      A3-5 (FRWA) - Body ground Engine switch on (IG) and front washer switch ON Below 1 V
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Headlight Cleaner Control Relay)

    NG → See step   5

    OK: Go to next step

  3. INSPECT HEADLIGHT CLEANER CONTROL RELAY (HDLO SIGNAL)
    1. Measure the voltage according to the value(s) in the table below.

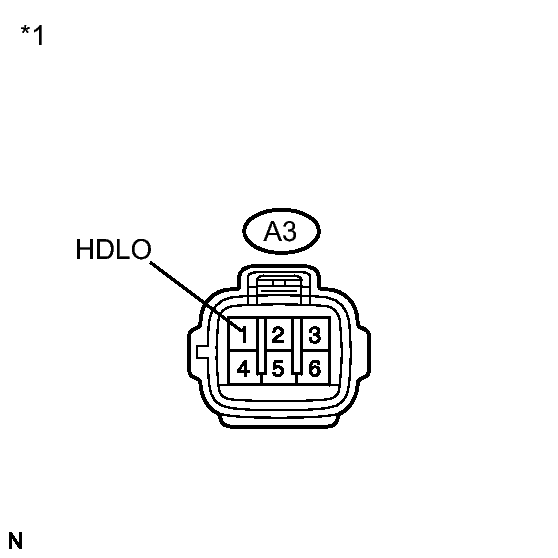

      GTY265504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A3-1 (HDLO) - Body ground Light control switch off 11 to 14 V
      A3-1 (HDLO) - Body ground Light control switch in HEAD Below 1 V
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Headlight Cleaner Control Relay)

    NG → See step   6

    OK → See step   7

  4. INSPECT HEADLIGHT CLEANER SWITCH ASSEMBLY
    1. Remove the headlight cleaner switch assembly. Refer to REMOVAL [08/2012 - ] .

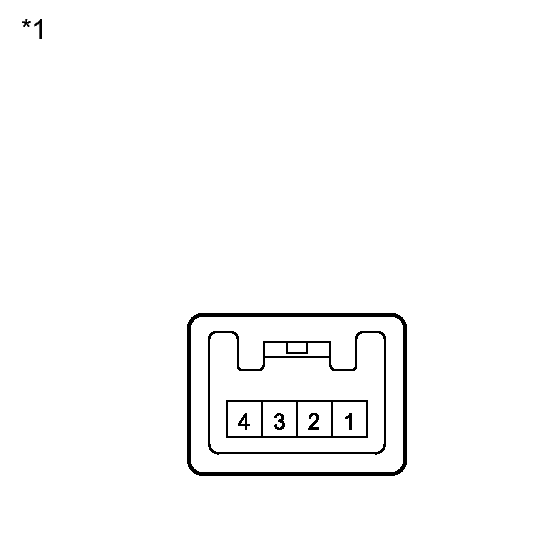

      GTY265051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      4 - 3 Headlight cleaner switch OFF 10 kΩ or higher
      4 - 3 Headlight cleaner switch ON Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Headlight Cleaner Switch Assembly)

    NG → See step   8

    OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (HEAD LP RELAY - HEADLIGHT CLEANER CONTROL RELAY)

  5. CHECK HARNESS AND CONNECTOR (HEADLIGHT CLEANER CONTROL RELAY - FRONT CONTROLLER)
    1. Disconnect the 2F front controller connector.

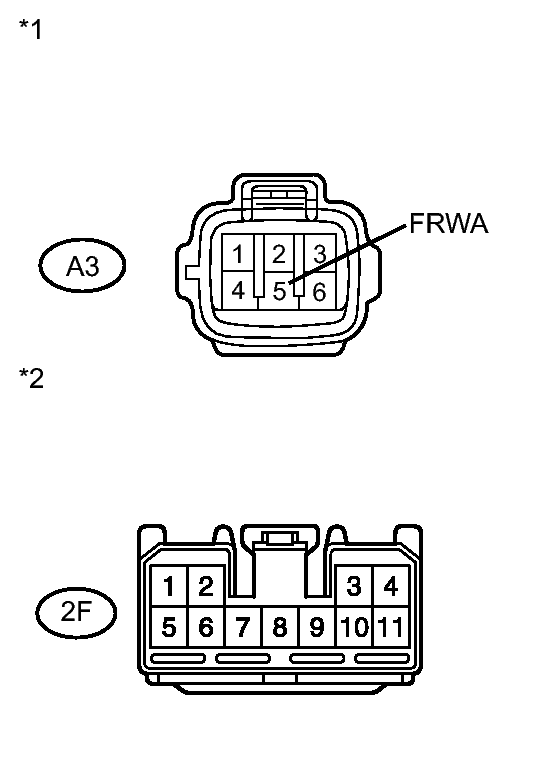

      GTY271204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A3-5 (FRWA) - 2F-8 Always Below 1 Ω
      A3-5 (FRWA) - Body ground Always 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Headlight Cleaner Control Relay)
      *2 Front view of wire harness connector
      (to Front Controller)

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → REPLACE FRONT CONTROLLER (MULTIPLEX NETWORK BODY ECU)

  6. CHECK HARNESS AND CONNECTOR (HEADLIGHT CLEANER CONTROL RELAY - MAIN BODY ECU RH)
    1. Disconnect the A36 main body ECU RH (cowl side junction block RH) connector.

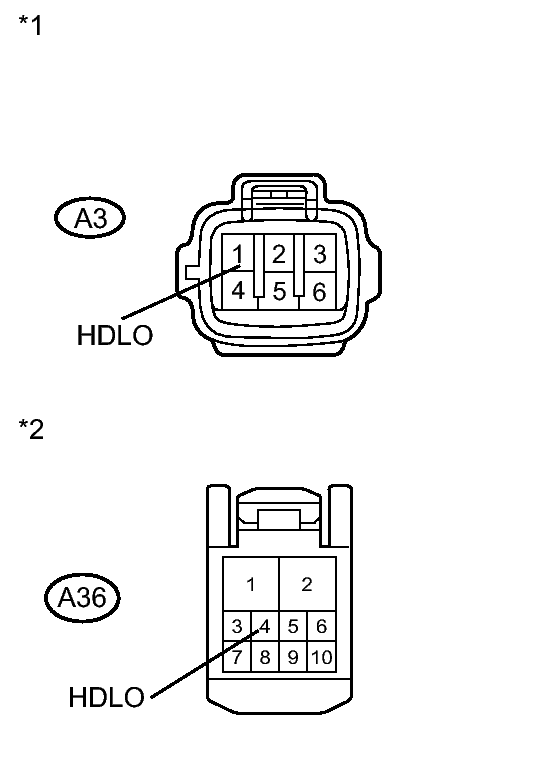

      GTY264726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connector Condition Specified Condition
      A3-1 (HDLO) - A36-4 (HDLO) Always Below 1 Ω
      A3-1 (HDLO) - Body ground Always 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Headlight Cleaner Control Relay)
      *2 Front view of wire harness connector
      (to Main Body ECU RH)

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → REPAIR OR REPLACE MAIN BODY ECU RH (COWL SIDE JUNCTION BLOCK RH)

  7. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [08/2012 - ]
  8. REPLACE HEADLIGHT CLEANER SWITCH ASSEMBLY. Refer to  REMOVAL [08/2012 - ]
