Visual Mute Signal Circuit between Navigation Receiver Assembly and Multi-display: Wiring Diagram

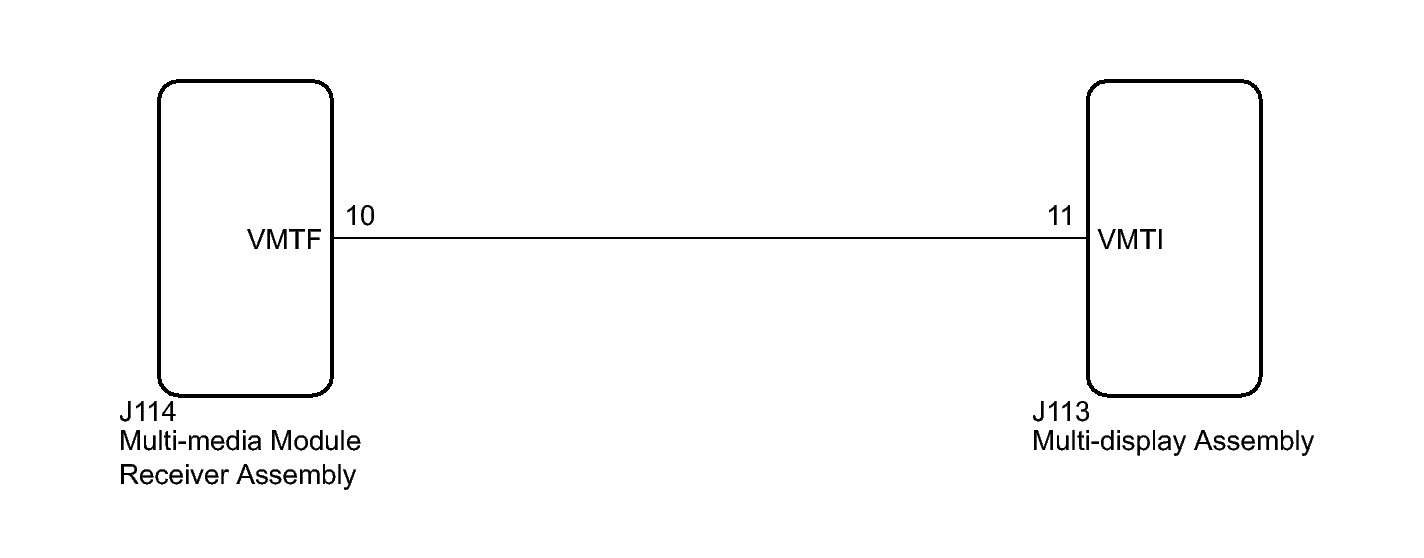

Fig 1: Identifying Visual Mute Signal Circuit Wiring Diagram
GTY411835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
